Product name

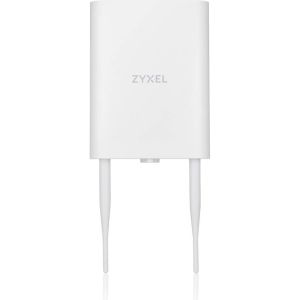

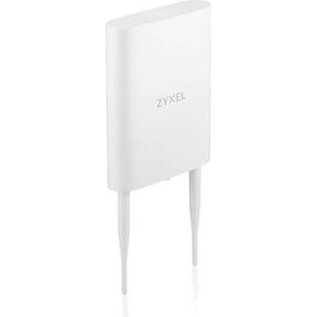

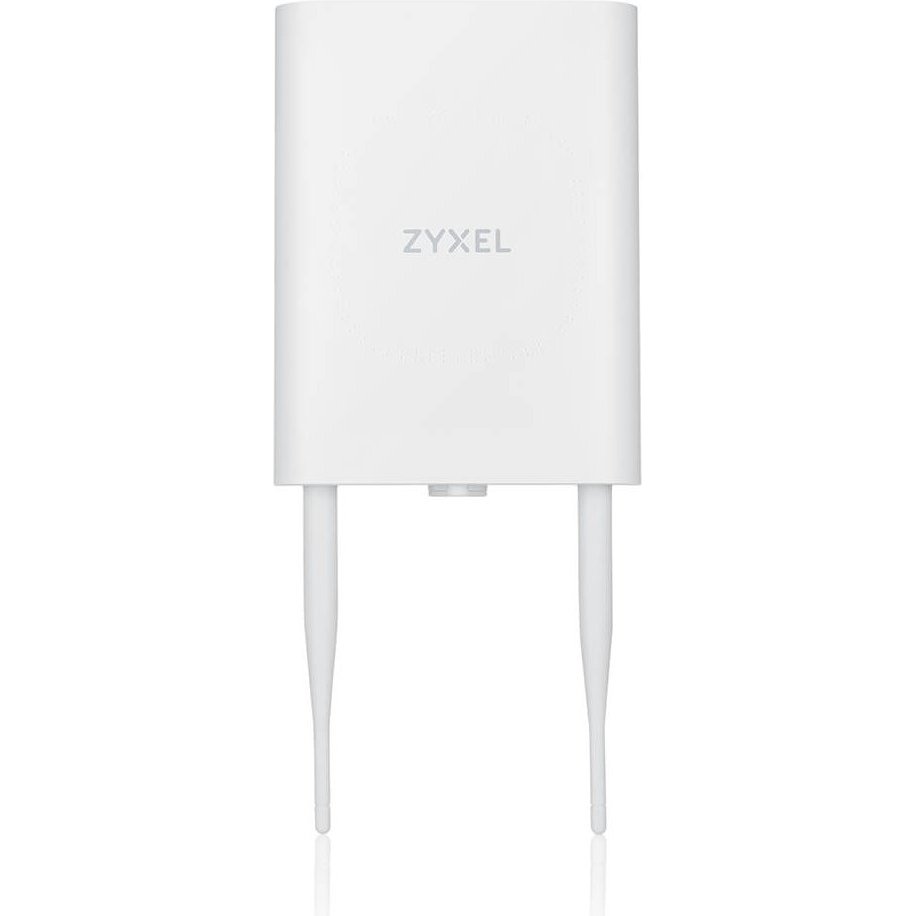

Description 802.11ax (WiFi 6) Dual-Radio Outdoor PoE Access Point
Wireless
Standard IEEE802.11 ax/ac/n/g/b/a
MIMO MU-MIMO
Wireless speed 2.4GHz: 575 Mbps
5GHz: 1200 Mbps
Frequency band 2.4 GHz
• USA (FCC): 2.412 to 2.462 GHz
• Europe (ETSI): 2.412 to 2.472 GHz
5 GHz
• USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz
• European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz
Bandwidth 20-, 40- and 80-MHz
Conducted typical transmit output power US (2.4GHz/5GHz): 23/26 dBm
EU (2.4GHz/5GHz): 20/25 dBm
RF Design
Antenna type 2x2 External Antenna
Antenna gain 2.4GHz: 4 dBi
5GHz: 5 dBi
Minimum Receive sensitivity Min. Rx sensitivity up to -99 dBm
WLAN feature
Band Steering Yes
WDS/Mesh Yes
Fast roaming Yes
DCS Yes
Load balancing No
Security
Encryption • WPA Personal
• WPA2 Personal
• WPA3 Personal
Authentication No
Access management • MAC filtering
• Rogue AP detection
Networking
IPv6 Yes
VLANs Yes
WMM Yes
U-APSD Yes
Management
Operating mode • Cloud managed
• Standalone
ZON Utility • Discovery of Zyxel switches, APs and gateways
• Centralized and batch configurations
o IP configuration
o IP renew
o Device factory reset
o Device reboot
o Device locating
o Web GUI access
o Firmware upgrade
o Password configuration
Zyxel Wireless Optimizer WiFi AP planning
Web UI/CLI Yes
SNMP NO
Physical Specifications
Item Dimensions (WxDxH)(mm/in.)
308 x 136.4 x 49.6 /12.13 x 5.37 x 1.95
Weight (g/lb.)
580/1.28
Packing Dimensions (WxDxH)(mm/in.)
221 x 188 x 59 / 8.70 x 7.40 x 2.32
Weight (g/lb.)
887/1.96
Included accessories • PoE injector
• Mounting screws
MTBF (hr) 1,091,186
Physical Interfaces
Ethernet port 1x 10/100/1000M LAN
Power PoE (802.3at): power draw 16 W
Environmental Specifications
Operating Temperature
-20°C to 60°C/ -4°F to 140°F
Humidity
10% to 90% (non-condensing)
Storage Temperature
-40°C to 70°C/-40°F to 158°F
Humidity
10% to 90% (non-condensing)
Certifications
Radio • FCC Part 15C
• FCC Part 15E
• ETSI EN 300 328
• EN 301 893
• LP0002
• EN 60601-1-2
EMC • FCC Part 15B
• EN 301 489-1
• EN 301 489-17
• EN55022
• EN55024
• EN61000-3-2/-3
• BSMI CNS13438
Safety • EN 60950-1
• IEC 60950-1
• BSMI
• CNS14336-1
