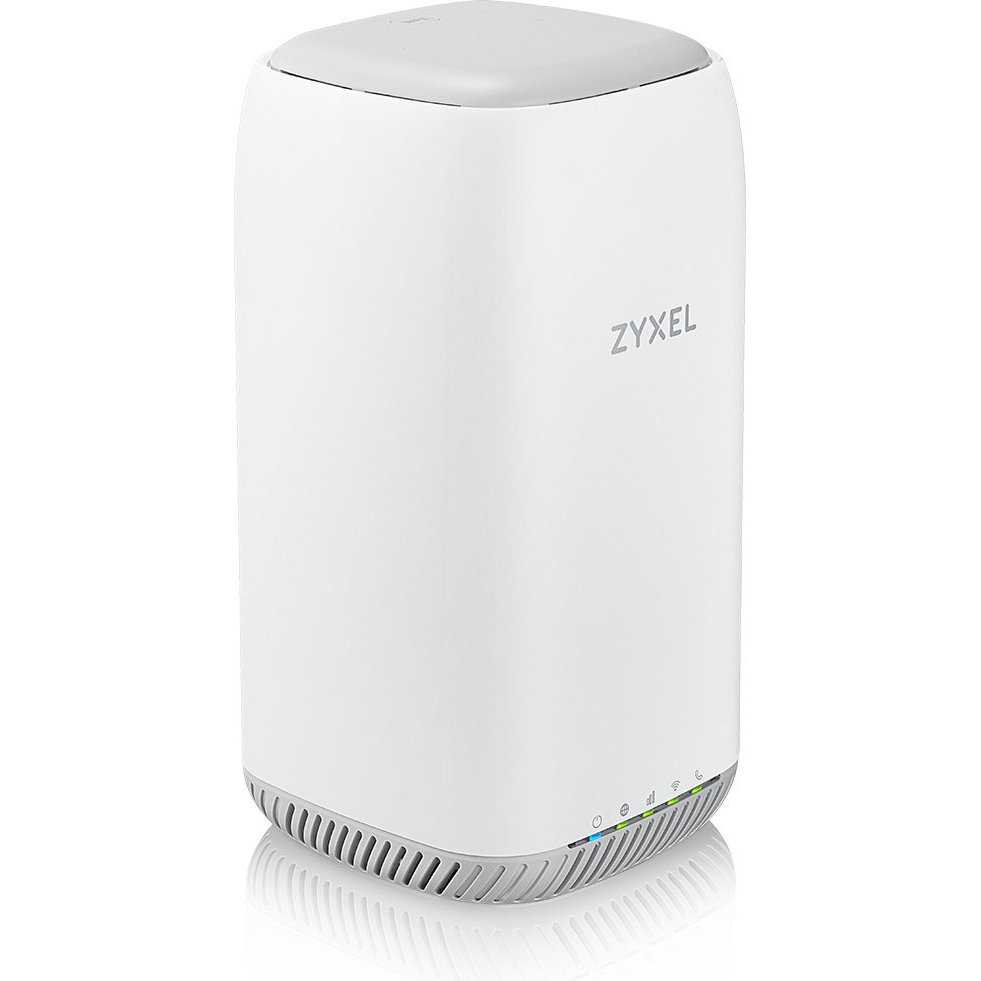

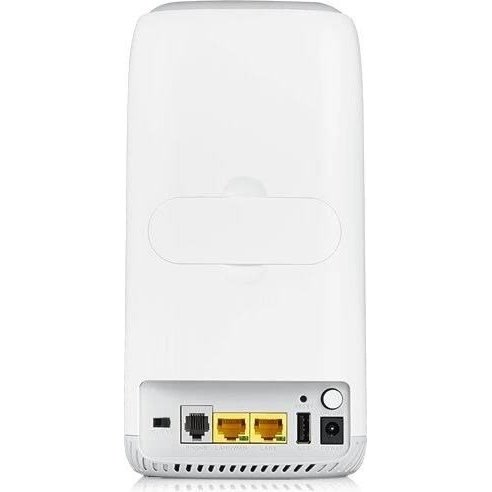

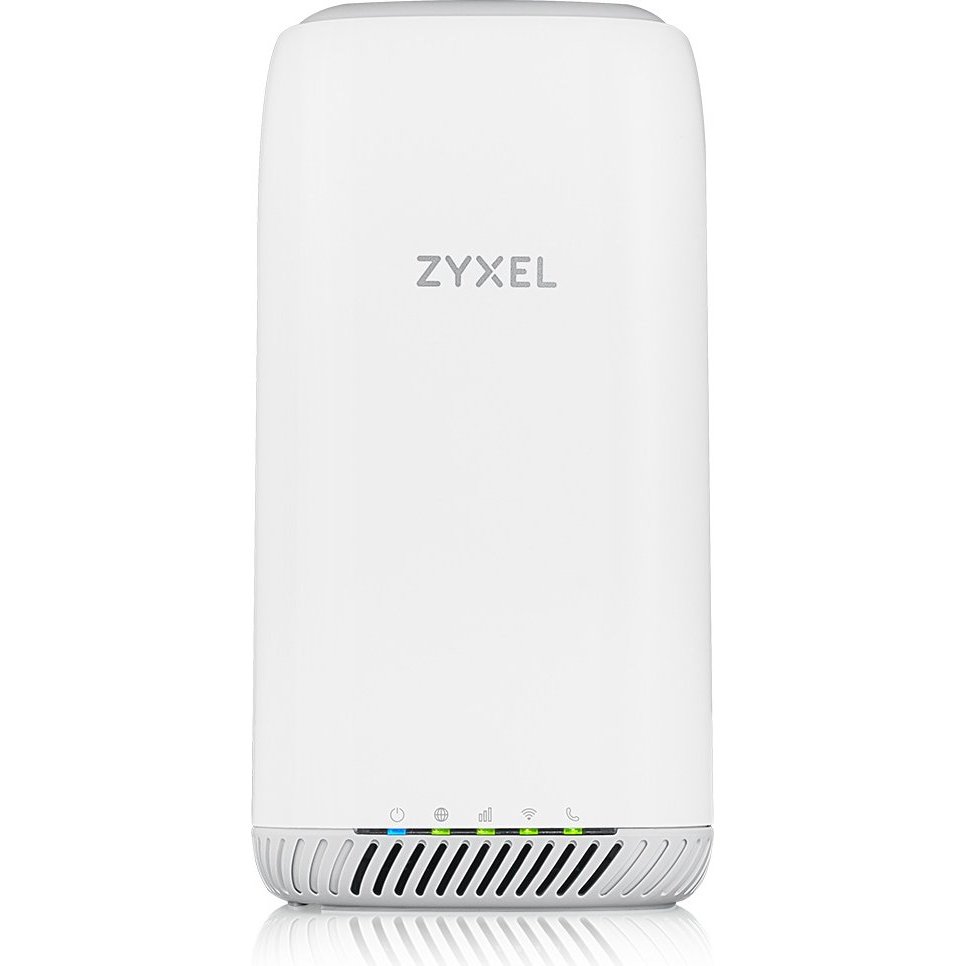

Zyxel LTE5398-M904
LTE Air interface
*Standard-compliant: 3GPP Release 12 Cat. 18
*Supports LTE bands:
LTE FDD: B1/B3/B5/B7/B8/B20/B28
LTE TDD: B38/40/41
*Carrier-aggregation up to 5
*Peak data rates:
1200 Mbps DL within 80 MHz bandwidth (CA)
150 Mbps UL within 40 MHz bandwidth (intra-band CA)
WiFi Air interface
*Wireless standard (concurrent)
IEEE 802.11 b/g/n, 2.4 GHz
IEEE 802.11 a/n/ac, 5 GHz
*WiFi 2.4 GHz antenna: 2x2 internal antennas up to 3 dBi
*WiFi 5 GHz antenna: 4x4 internal antennas up to 5 dBi
Rozměry: 100 x 100 x 205 mm
Hmotnost: 599 g
Bližší informace naleznete v datasheetu v sekci Odkazy
