8-port 10/100/1000Mbps Gigabit Ethernet switch, 4 QoS ports (2port "High", 2ports "Middle"), 802.3az (Green),desktop
· Plug-and-play, stylish design that fits home environments
· Enjoy smooth multimedia streaming and gaming through QoS ports with 3-level prioritization
· Stream multimedia with blazing-fast Gigabit speed
· Green switch design for energy saving
Prioritize Multimedia Streams for Optimized Video and Online Gaming Enjoyments

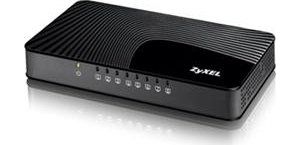

The ZyXEL GS-108S 8-Port Desktop Gigabit Ethernet Media Switch can easily connect multiple media devices to home networks at blazing-fast Gigabit speed simultaneously. Moreover, the newly designed QoS ports of GS-108S allow smooth video streaming and online gaming as well.
Plug-and-play, stylish design
With easy plug-and-play, you can connect the GS-108S to media players, game consoles and smart TVs to your home network without any configuration effort. With its stylish modern look and streamlined design, the GS-108S fits nicely into any home décor
Smooth multimedia streaming and gaming

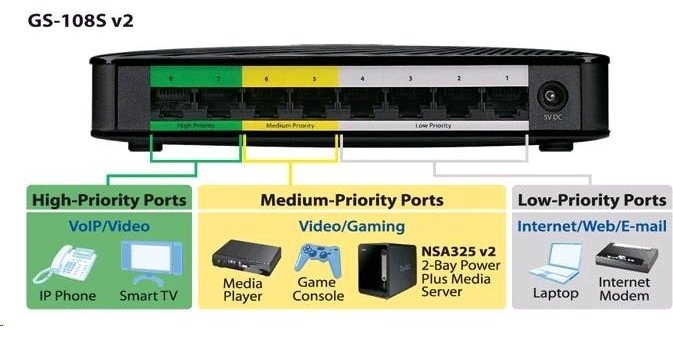

The ZyXEL GS-108S features QoS ports for you to assign high, medium or low priorities for your preferred network applications. For instance, if you are a movie enthusiast, you can connect media players or smart TVs to the high-priority ports for smooth video streaming and the best home 3D streaming experience. If you prefer lag-free online gaming, simply connect the game console through the high-priority QoS port and assign media players, PC and other network devices to the medium- or low-priority QoS ports according to your need.
Blazing-fast Gigabit speed
The GS-108S 10/100/1000 Mbps switch is designed for reliable high-performance media networks 10 times faster than Fast Ethernet connections. It perfectly fulfills the demands for multimedia streaming and online gaming.
System Specifications
· Standard
o IEEE 802.3 10Base-T Ethernet
o IEEE 802.3u 100Base-TX Fast Ethernet
o IEEE 802.3ab 1000BASE-T Gigabit Ethernet
o IEEE 802.3 Nway auto-negotiation
o IEEE 802.3x full duplex operation and flow control
o IEEE 802.3az Energy Efficient Ethernet
· Performance
o Data transfer rate (half duplex/full duplex):
§ Ethernet: 10/20 Mbps
§ Fast Ethernet: 100/200 Mbps
§ Gigabit Ethernet: 1000/2000 Mbps
o MAC address table: 8 K
o Memory buffer: 128 KB
o Switching fabric (non-blocking): 16 Gbps
· Features
o Auto-MDI/MDIX in all ports
o Transmission method: store-and-forward architecture
o Port-based QoS support
o Jumbo frame support up to 9 KB
Hardware Specifications
· Interface
o Eight RJ-45 10/100/1000 Mbps Ethernet ports with auto MDI/MDIX support
· QoS Ports
o Two high-priority QoS ports, two medium-priority QoS ports, and four low-priority QoS ports
· LED indicator
o PWR: Power
o Per port: Link/Activity
· Power supply
o Input: 100-240 V AC
o Output: 5 V DC, 1 A
· Power consumption: 4.5 watt max.
Physical Specifications
· Item dimensions (WxDxH): 152 x 80 x 32 mm (5.99” x 3.15” x 1.26”)
· Item weight: 150 g (0.33 lb.)
· Packing dimensions (WxDxH): 157 x 86 x 96 mm (6.18” x 3.39” x 3.78”)
· Packing weight: 250 g (0.55 lb.)
Environmental Specifications
· Operating environment
o Temperature: 0°C to 40°C (32°F to 104°F)
o Humidity: 10% to 90% (Non-condensing)
· Storage environment
o Temperature: -20°C to 70°C (-4°F to 158°F)
o Humidity: 10% to 90% (Non-condensing)
Certification
· CE, FCC class B, C-Tick, BSMI
Package Contents
· Gigabit switch
· Power adapter
· Quick start guide
· Warranty card
