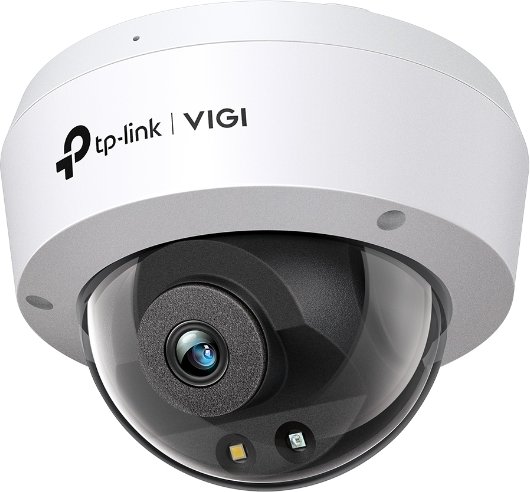

VIGI C240(4mm)
Monitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 4MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.
Backed by AI algorithms, the VIGI camera offers more smart detection. You will receive notifications when someone crosses a boundary, enters an area you´ve set, obstructs the camera, or removes/abandons objects.
The VIGI camera features a built-in microphone to record anything going on within a 15-ft radius of the camera. This gives you more detailed monitoring for greater peace of mind.

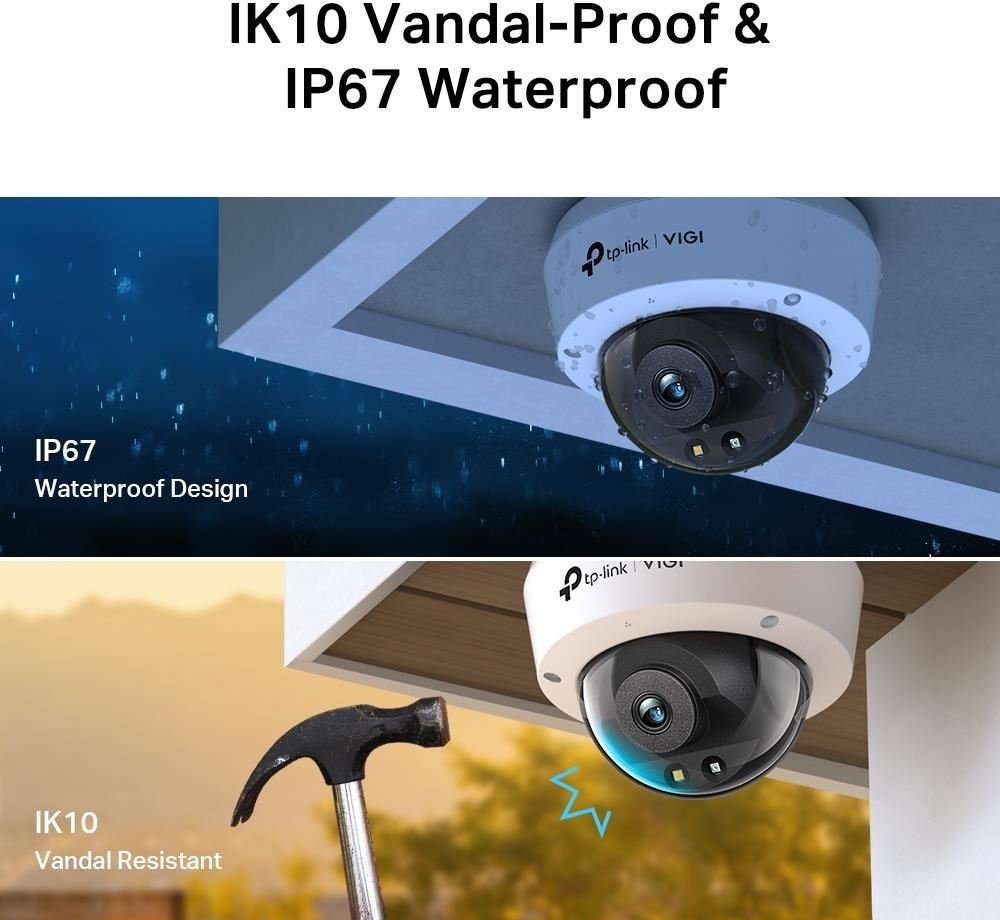

With vandal-resistant, rugged housing and waterproof design, this VIGI dome camera is built tough to withstand vandalism and harsh environments with rain and dust for constant security anywhere and anytime.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
VIGI’s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
Two power supply ways not only give you more convenience but also make your wiring remarkably easy.
Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger. Local storage is available for each methods, as well as onboard storage with SD card slot.

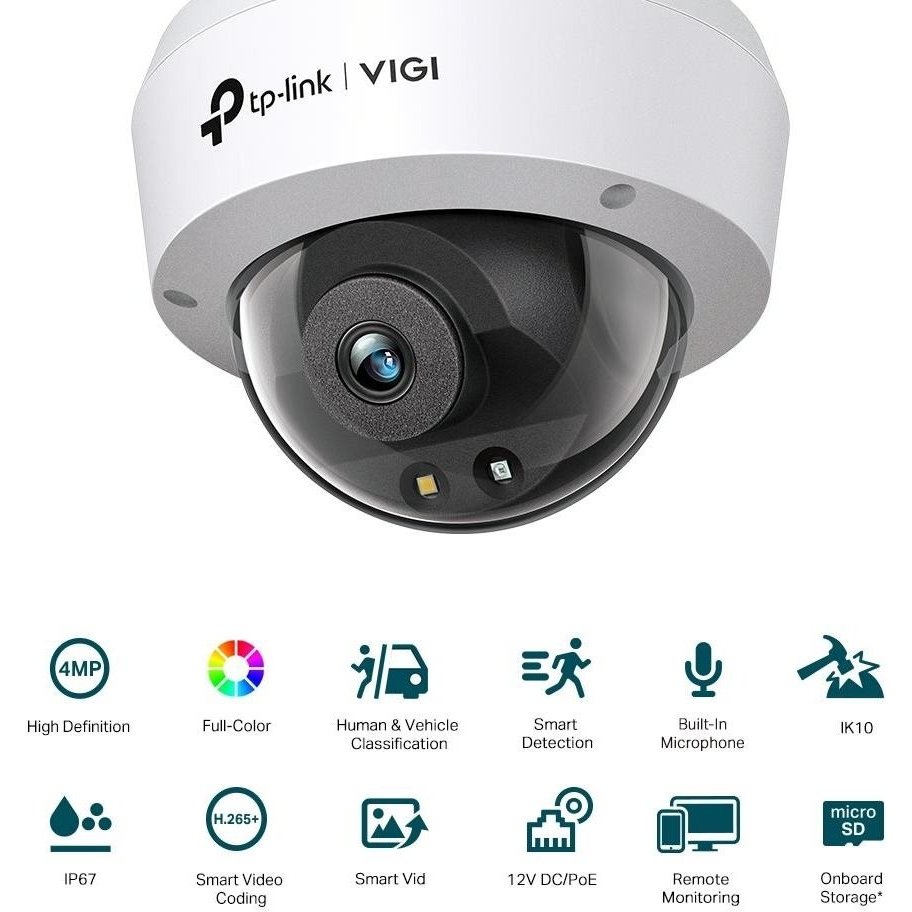

Features
4 MPx vysoké rozlišení
*Nepřetržité barevné snímání (Full-Color):
*Rozlišení osob a vozidel
*Inteligentní detekce
*Integrovaný mikrofon:
*Odolnost proti vandalismu IK10 a voděodolnost IP67
*H.265+
*Chytré vylepšení videa
*PoE /12V DC
*Flexibilní správa a úložiště
Specifications
CAMERA
Image Sensor
*1/3" Progressive Scan CMOS
Minimum Illumination
*Color: 0.005 Lux; 0 Lux with IR/White Light
Day/Night Mechanism
*IR Cut Filter
Lens
*4 mm
Aperture
*F1.6
Lens Mount
*M12
Viewing Angle
*Horizontal FOV: 79.7°, Vertical FOV:42.9°, Diagonal FOV: 93.9°
Pan/Tilt Range
*Pan: 0° to 360°, Tilt: 0° to 85°, Rotate: 0° to 360°
Weatherproof Rating
*IP67
Digital Noise Reduction
*3D DNR
WDR
*DWDR
ILLUMINATOR
IR LED
*Quantity: 1
*Range: 30m
*Wavelength: 850nm
White LED
*Quantity: 1
*Range: 30m
NETWORK
Security
*Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Protocol
*TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
API
*ONVIF
Simultaneous Live View
*3 Main Streams & 3 Sub-Streams
Client
*VIGI App, VIGI Security Manager, VIGI NVR, Web
INTERFACES
Network Interface
*1 RJ45 10/100M Self-Adaptive Ethernet Port
On-board Storage
*Built-in Memory Card Slot, Support MicroSD Card, Up to 256 GB
Built-in Microphone
*Yes
GENERAL
Package Contents
*VIGI Network Camera
*Quick Start Guide
*Waterproof Cable Attachments
*Mounting Accessories
Operating Temperature
*-30–60 °C
Dimensions( H X W X D )
*115 × 115 × 86 mm
Material
*Plastic
General Features
*Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Power Supply
*12V DC ± 5%, 5.5mm Coaxial Power Plug
*PoE (802.3af/at, class 0)
Power Consumption
*12V DC: Max 5.4W
*PoE: Class 0
Vandal Resistant
*IK10
Certifications
*CE/BSMI/VCCI/ONVIF
VIDEO/IMAGE
Video Compression
*Main Stream: H.265+/H.265/H.264+/H.264
*Sub-Stream: H.265/H.264
*Frame Rate & Resolutions
Main Stream: Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps, Resolution: 2560x1440,2304x1296, 2048x1280, 1920x1080, 1280x720
Sub-Stream: Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps, Resolution: 640x480,352x288, 320x240
Max. Resolution
*4MP (2560 × 1440)
Video Streaming
*Main Stream, Sub-Stream
Image Settings
*Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)
Image Enhancement
*BLC/3D DNR/HLC/SmartIR
Video Bit Rate
*64 Kbps to 4 Mbps
Day/Night Switch
*Day/Night/Auto/Schedule
