Ubiquiti UniFi Cloud Gateway MAX (UniFi gateways podporou IPS/IDS + controller + NVR 512GB)

Kód: 72272
Part No.: UCG-Max
Dostupnosť: zvyčajne do 24hodin
Výrobca: UBIQUITI NETWORKS
301,00 € s DPH
295,00 € s DPH
2950

Compact 2.5G Cloud Gateway with 30+ UniFi device / 300+ client support, 1.5 Gbps IPS routing, and selectable NVR storage.



  • Includes full UniFi application suite for device management

  • Manages 30+ UniFi devices and 300+ clients

  • 1.5 Gbps routing with IDS/IPS

  • Multi-WAN load balancing

  • 512 GB NVMe SSD storage for NVR

  • 0.96" LCM status display

  • USB-C powered (adapter included)


Mechanical

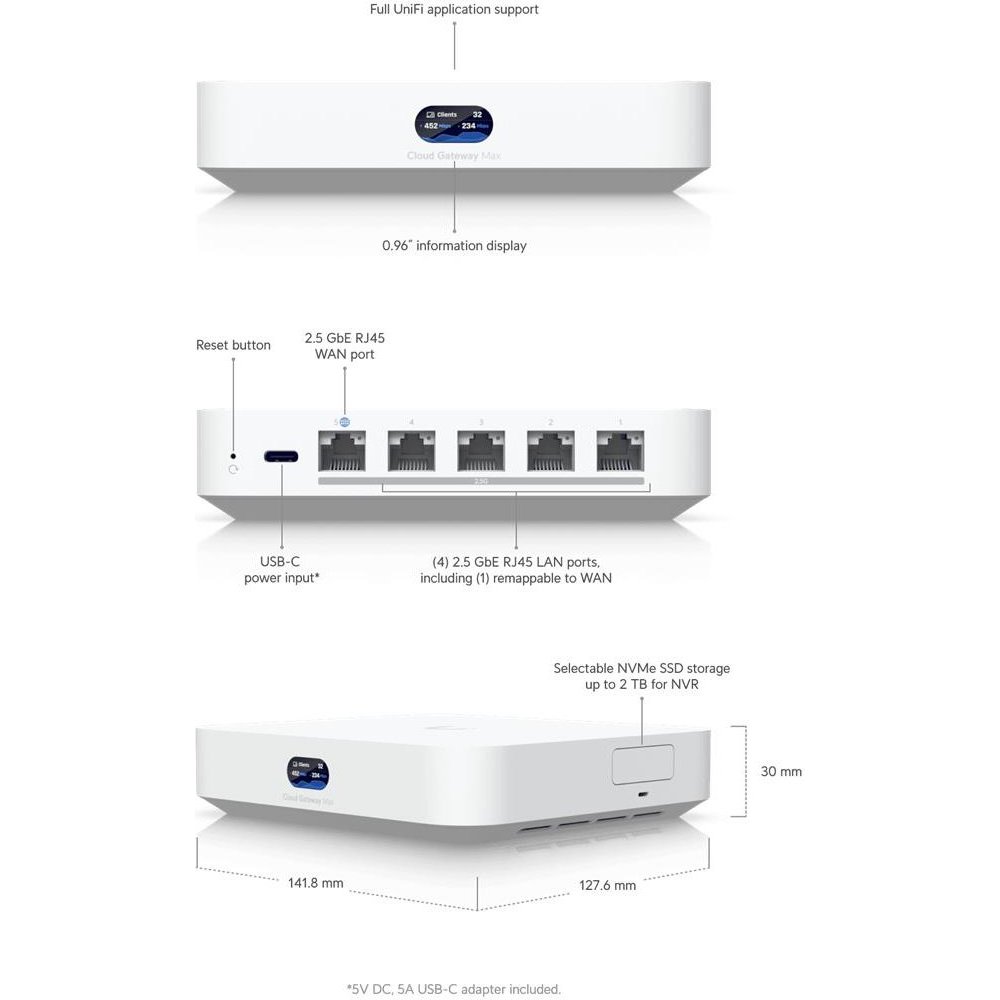

Dimensions 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2")

Weight 519 g (1.1 lb)

Enclosure material Polycarbonate




Hardware

Processor Quad-core ARM® Cortex®-A53 at 1.5 GHz

System memory 3 GB DDR4

On-board storage 512 GB NVMe SSD

Management interface Ethernet

Bluetooth

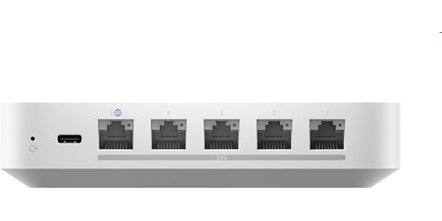

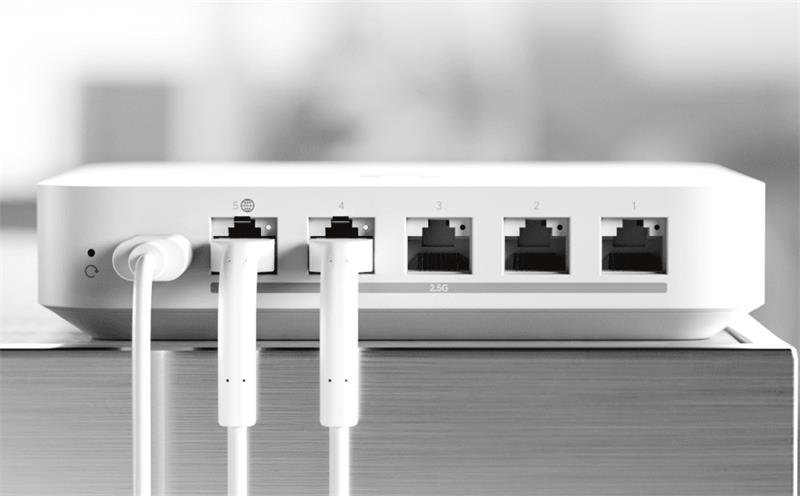

Networking interface


LAN:

(4) 1/2.5 GbE RJ45 ports

WAN:

(1) 1/2.5 GbE RJ45 port

IDS/IPS throughput 1.5 Gbps*


*Measured with iPerf3 on a DHCP network. Performance may be reduced with PPPoE depending on ISP implementation.

Power method USB type C (5V DC/5A)

Supported voltage range 100–240V AC

Max. power consumption 16.1W

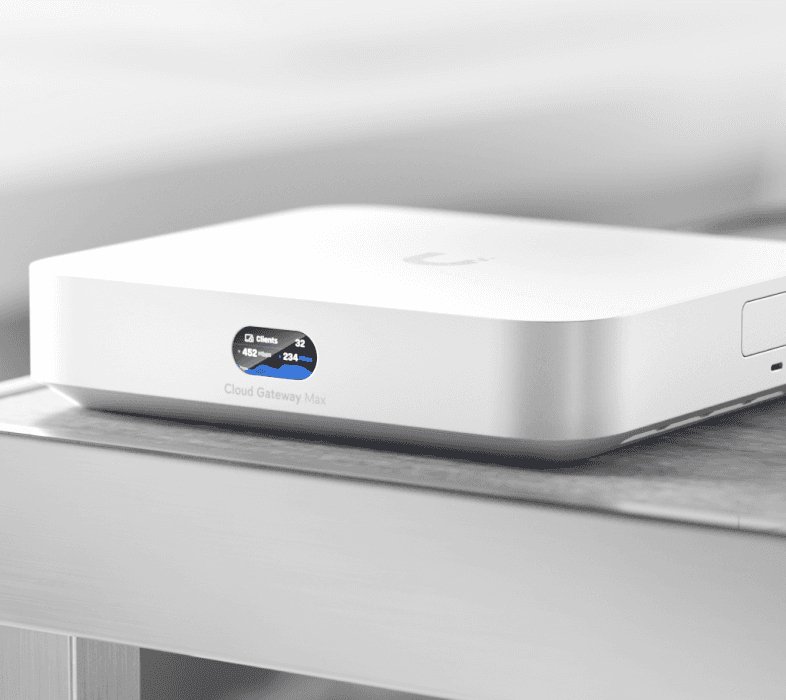

LCM display 0.96" status display

Button Factory reset

Ambient operating temperature -10 to 40° C (14 to 104° F)

Ambient operating humidity 5 to 95% noncondensing

Certifications CE, FCC, IC




Gateway Features

Performance



  • Redundant WAN with failover and load balancing

  • WiFi QoS with UniFi APs

  • Application, domain, and country-based QoS

  • Application and device type identification

  • Additional internet failover with LTE Backup

  • Internet quality and outage reporting


Next-generation security



  • Application-aware firewall rules

  • Signature-based IPS/IDS threat detection

  • Content, country, domain, and ad filtering

  • VLAN/subnet-based traffic segmentation

  • Full stateful firewall


Advanced networking



  • License-free SD-WAN

  • WireGuard, L2TP and OpenVPN server

  • OpenVPN client

  • OpenVPN and IPsec site-to-site VPN

  • One-click Teleport and Identity VPN

  • Policy-based WAN and VPN routing

  • DHCP relay

  • Customizable DHCP server

  • IGMP proxy

  • IPv6 ISP support




LEDs

Ethernet Green: link/activity




Application Requirements

Mobile app UniFi iOS™ and Android™: Version 10.17.2 and later
