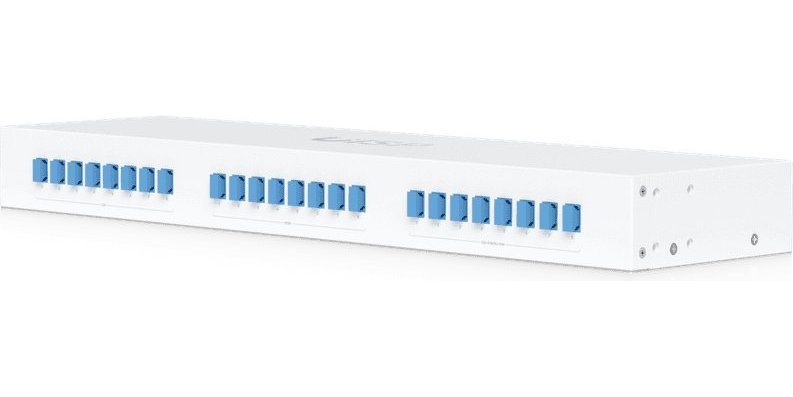

Wavelength Division Multiplexing module that combines XGS/XG-PON and GPON services into a single fiber distribution system.
(8) GPON, (8) XGSPON, and (8) splitter output COM ports 1U Rack mount
Technical Specifications
Mechanical
Dimensions 442 x 120 x 43.7 mm ( 17.4 x 4.7 x 1.7")
Weight 1.8 kg (3.97 lb)
Enclosure material Metal
Connector type (8) COM (SC/UPC) (8) GPON (SC/UPC) (8) XGS/XG-PON (SC/UPC)
Hardware
GPON - COM port
Wavelength range 1290—1330 nm 1480—1500 nm
Max. insertion loss 1 dB
Min. isolation 25 dB
XGS-PON - COM port
Wavelength range 1260—1280 nm 1575—1580 nm
Min. return loss 50 dB
Max. polarization dependentloss 0.1 dB
Fiber type ITU-T G.657.A1 Single Model Fiber
