NETWORK
Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
API: ONVIF
Simultaneous Live View: 4 Main Streams & 3 Sub-Streams, or 3 Main Streams & 5 Sub-Streams
GENERAL
Package Contents:

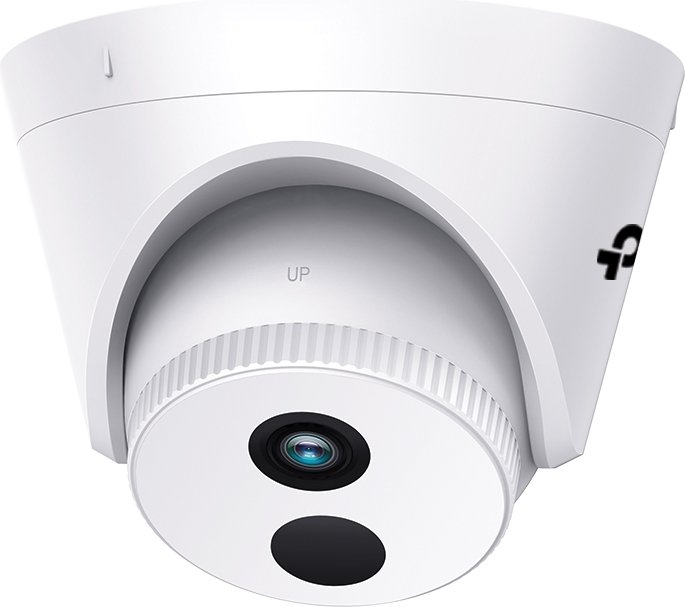

*VIGI Network Camera
*Quick Start Guide
*Screws and Anchors
*Mounting Template
Certifications: CE, FCC, RCM, BSMI, VCCI, RoHS
Dimensions( H X W X D ): 123 × 123 × 83 mm
Material: Plastic
Weight: 195 g
General Features: Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Power Requirements:
*12V DC ± 5%, 5.5mm Coaxial Power Plug
*PoE (802.3af/at, class 0)
CAMERA
Image Sensor: 1/2.7” Progressive Scan CMOS
Lens: 4 mm / 2.8 mm
Aperture:
*4 mm: F2.4
*2.8 mm: F2.0
Lens Mount: M12
Viewing Angle:
*4 mm, horizontal FOV: 92°, vertical FOV: 48°, diagonal FOV: 114°
*2.8 mm, horizontal FOV: 105°, vertical FOV: 56°, diagonal FOV: 125°
Day/Night Mechanism: IR Cut Filter
IR Working Distance: 30m
Minimum Illumination: Color: 0.1 Lux@F2.0; 0 Lux with IR
Pan/Tilt Range: Pan: 0° to 360°, Tilt: 0° to 85°, Rotate: 0° to 360°
Digital Noise Reduction: 3D DNR
WDR: DWDR
VIDEO/IMAGE
Video Compression:
*Main stream: H.265/H.264
*Sub-Stream: H.265/H.264
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720, 704x576, 640x480, 352x288, 320x240
Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software
Image Enhancement: BLC/3D DNR/Prevent Overexposure to Infrared Light
Video Bit Rate: 64 Kbps to 6 Mbps
SMART FEATURE-SET
Smart Event: Area Intrusion Detection, Line-Crossing Detection
Basic Event: Motion Detection, Video Tampering Detection, Exception ( illegal login)
Linkage Method: Trigger Notification: ONVIF, HTTPS
Region of Interest: 1 Region
INTERFACES
Network Interface: 1 RJ45 10/100M Self-Adaptive Ethernet Port
Button: -
Video Output: -
