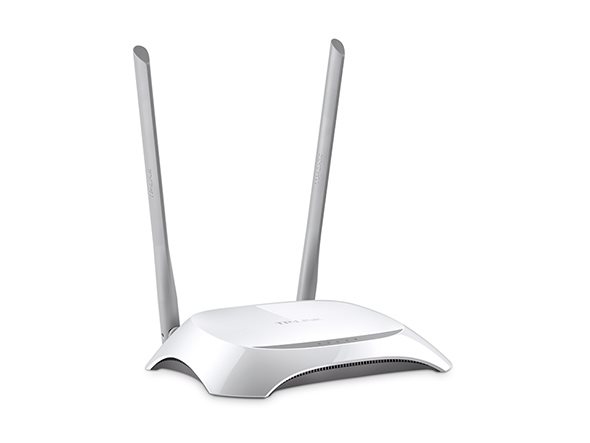

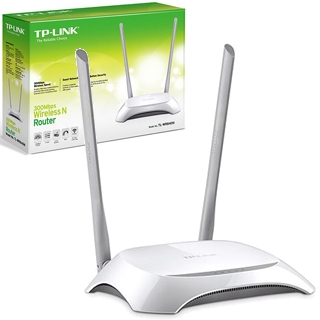

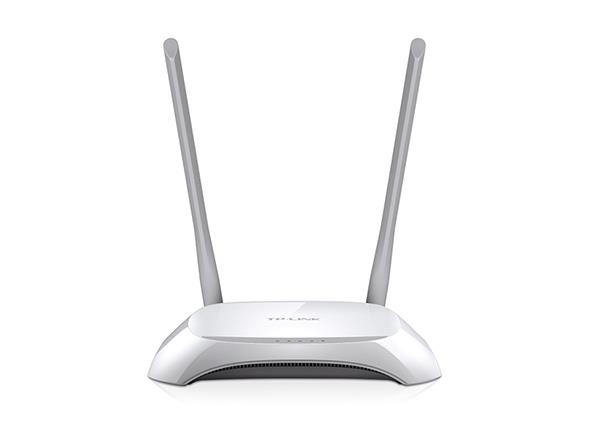

TP-Link TL-WR840N 300Mbps Wireless N Router
OVERVIEW
· 300Mbps wireless transmission rate ideal for both bandwidth sensitive tasks and basic work
· Easy wireless security encryption at a push of WPS button
· IP based bandwidth control allows administrators to determine how much bandwidth is allotted to each PC
· WDS wireless bridge provides seamless bridging to expand your wireless network
SPECIFICATIONS
HARDWARE FEATURES
Interface

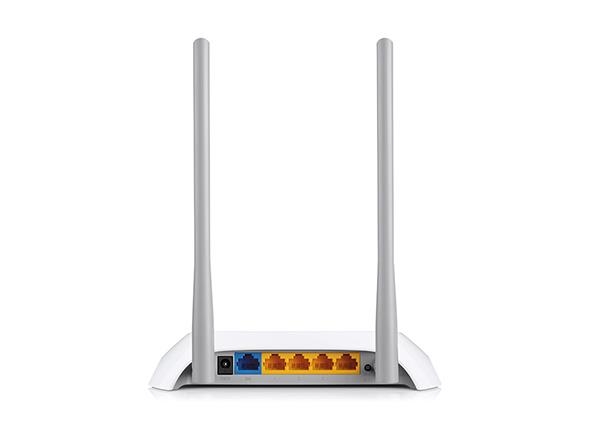

· 4 10/100Mbps LAN PORTS
· 1 10/100Mbps WAN PORT
Button
· WPS/Reset Button
· Wireless On/Off Button
· Power On/Off Button
External Power Supply
· 9VDC / 0.6A
Wireless Standards
· IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Antenna
· 2 Internal Antennas
Dimensions ( W x D x H )
· 182 x 128 x 35 mm
WIRELESS FEATURES
Frequency
· 2.4-2.4835GHz
Signal Rate
· 11n: Up to 300Mbps(dynamic)
· 11g: Up to 54Mbps(dynamic)
· 11b: Up to 11Mbps(dynamic)
EIRP
· <20dBm(EIRP)
Reception Sensitivity
· 270M: -68dBm@10% PER
· 130M: -68dBm@10% PER
· 108M: -68dBm@10% PER
· 54M: -68dBm@10% PER
· 11M: -85dBm@8% PER
· 6M: -88dBm@10% PER
· 1M: -90dBm@8% PER
Wireless Functions
· Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless Security
· 64/128-bit WEP, WPA / WPA2,WPA-PSK / WPA2-PSK
SOFTWARE FEATURES
WAN Type
· Dynamic IP/Static IP/PPPoE/PPTP/L2TP
DHCP
· Server, Client, DHCP Client List, Address Reservation
Quality of Service
· WMM, Bandwidth Control
Port Forwarding
· Virtual Server,Port Triggering, UPnP, DMZ
Dynamic DNS
· DynDns, Comexe, NO-IP
VPN Pass-Through
· PPTP, L2TP, IPSec (ESP Head)
Access Control
· Parental Control, Local Management Control, Host List, Access Schedule, Rule Management
Firewall Security
· DoS, SPI Firewall
· IP Address Filter/MAC Address Filter/Domain Filter
· IP and MAC Address Binding
Management
· Access Control
· Local Management
· Remote Management
OTHERS
Certification
· CE, FCC, RoHS
Package Contents
· Wireless N Router TL-WR840N
· Power supply unit
· Resource CD
· Quick Installation Guide
System Requirements
· Windows 2000/XP/Vista™, Windows 7, Windows 8 or Mac OS or Linux-based operating systém
Environment
· Operating Temperature: 0°C~40°C
· Storage Temperature: -40°C~70°C
· Operating Humidity: 10%~90% non-condensing
· Storage Humidity: 5%~90% non-condensing
