OVERVIEW

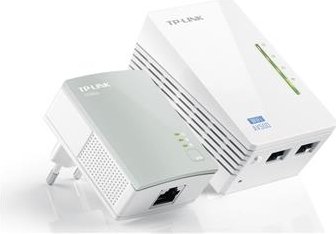

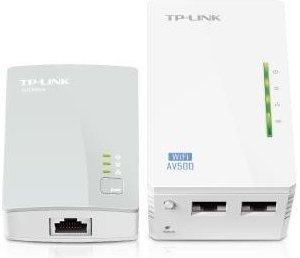

TP-LINK’s TL-WPA4220KIT extends your Internet connection to every room of the house through your home’s existing electrical circuitry. The TL-WPA4220 features a Wi-Fi Clone Button enabling Super Range Extension, which means it can automatically copy the SSID and Password of your router. In this way, TL-WPA4220 simplifies your Wi-Fi configuration and allows for seamless roaming within your home network.
FEATURES
• One Touch Super Range Extension - Wi-Fi Clone Button simplifies your Wi-Fi configuration and helps build a seamless unified home network
• HomePlug AV standard providing up to 500Mbps high speed data transmission over a home’s existing electrical wiring, ideal for lag-free HD or 3D video streaming and online gaming
• Extend 300Mbps wireless connections to previously hard-to-reach areas of your home and office
HARDWARE FEATURES
Standards and Protocols
• HomePlug AV, IEEE802.3, IEEE802.3u, IEEE802.11b/g/n
Interface
• 2*10/100Mbps Ethernet Port
Plug Type
• EU, UK, US, AR
Button
• Pair, Reset, Wi-Fi/Wi-Fi Clone
LED Indicator
• PWR, PLC, ETH, Wi-Fi/Wi-Fi Clone
Dimensions ( W x D x H )
• 94×54×40mm
Range
• 300 Meters over electrical circuit
SOFTWARE FEATURES
Modulation Technology
• OFDM (PLC)
Encryption
• Powerline Security: 128-bit AES
• Wireless Security: WEP, WPA/WPA2, WPA-PSK/WPA2-PSK Encryption
OTHERS
Certification
• CE, FCC, RoHS
Package Contents
• Powerline Ethernet Adapter TL-WPA4220 & TL-PA4010
• 2 m Ethernet cable (RJ45)
• Resource CD
• Quick Installation Guide
System Requirements
• Windows 2000/XP/2003/Vista, Windows 7/8, Mac, Linux
Environment
• Operating Temperature: 0°C~40°C
• Storage Temperature: -40°C~70°C
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
