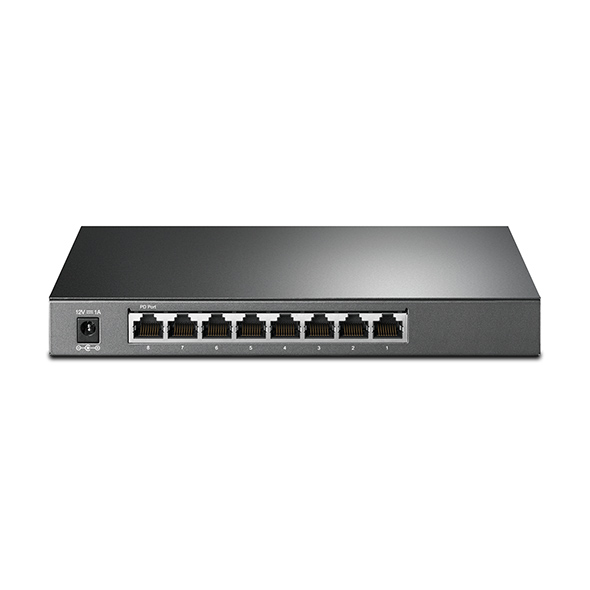

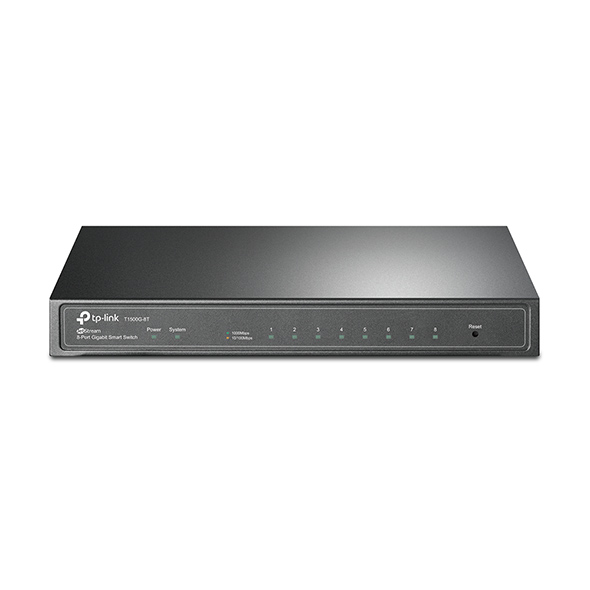

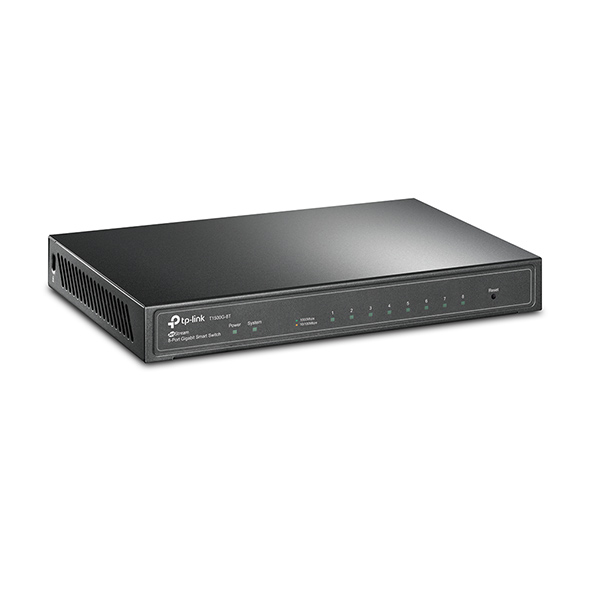

JetStream 8-Port Gigabit Smart Switch
T1500G-8T (TL-SG2008)
Popis
*PoE Port8 kompatibilní s protokolem 802.3af umožňuje příjem napájení z zdroje PoE
*Gigabit Ethernet na všech portech zajišťuje plnou rychlost přenosu dat
*Pokročilé funkce zabezpečení zahrnují IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X a Radius Authentication
*L2 / L3 / L4 QoS a IGMP snooping optimalizují hlasové a video aplikace
*WEB / CLI řízené režimy, SNMP, RMON přinášejí bohaté funkce správy
*Dual Firmware Image zvyšuje spolehlivost a čas potřebný pro připojení k síti
Technická specifikace
HARDWARE FEATURES
Standards and Protocols
*IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
Interface
*8 10/100/1000Mbps RJ45 Ports
*Port8 obtain power from PoE source
*(Auto-Negotiation/Auto MDI/MDIX)
Network Media
*10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
*100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity
*Fanless
Power Supply
*100~240VAC, 50/60Hz
*External Power Adapter(Output: 12VDC/1A)
*Obtain power from PoE source
Power Consumption
*Maximum: 5.75W (220V/50Hz)
PD Port (RJ45)
*Port8 IEEE802.3af/at
Dimensions ( W x D x H )
*209 * 126 * 26mm
PERFORMANCE
Bandwidth/Backplane
*16Gbps
Packet Forwarding Rate
*11.9Mpps
MAC Address Table
*8K
Jumbo Frame
*9216 Bytes
SOFTWARE FEATURES
Quality of Service
*802.1p CoS/DSCP priority
*4 priority queues
*Queue scheduling: SP, WRR, SP+WRR
*Port/Flow- based Rate Limiting
*Voice VLAN
L2 Features
*IGMP Snooping V1/V2/V3
*802.3ad LACP (Up to 6 aggregation groups, containing 4 ports per group)
*Spanning Tree STP/RSTP/MSTP
*BPDU Filtering/Guard
*TC/Root Protect
*Loop back detection
*802.3x Flow Control
*LLDP, LLDP-MED
VLAN
*Supports up to 512 VLANs simultaneously (out of 4K VLAN IDs)
Access Control List
*L2~L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports
Security
*Port Security
*DHCP Snooping
*IP-MAC-Port Binding
*ARP Inspection
*802.1x and Radius Authentication
*SSH v1/v2
*SSL v3/TLSv1
*Broadcast/Multicast/Unknown-unicast Storm Control
*Dos Defend
Management
*Web-based GUI
*Command Line Interface(CLI) through telnet
*SNMP v1/v2c/v3,compatible with public MIBs and TP-LINK private *MIBs
*RMON (1, 2, 3, 9 groups)
*CPU Monitoring
*Port Mirroring
*Time Setting: SNTP
*Firmware Upgrade: TFTP & Web
*System Diagnose: VCT
*SYSLOG & Public MIBS
*Dual Image
OTHERS
Certification
*CE, FCC, RoHS
Package Contents
*T1500G-8T
*Power Adapter
*Installation Guide
*Resource CD
*Rubber Feet
System Requirements
*Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8, MAC® OS, NetWare®, UNIX® or Linux.
Environment
*Operating Temperature: 0?~40? (32?~104?);
*Storage Temperature: -40?~70? (-40?~158?)
*Operating Humidity: 10%~90% non-condensing
*Storage Humidity: 5%~90% non-condensing
