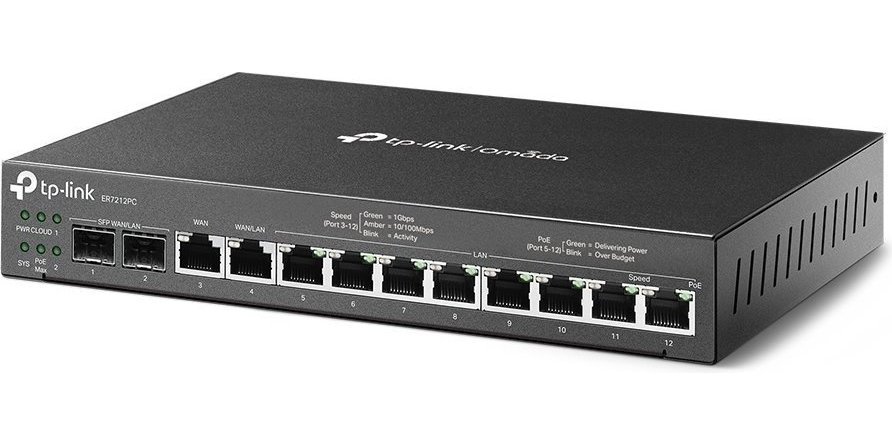

ER7212PC
Gigabitový VPN router Omada 3 v 1
Router 3 v 1: Plní funkciu routera, PoE switcha a kontroléra Omada.
Profesionálny hardvér: Dvojjadrový procesor 1,2 GHz s 1 GB pamäte DDR3 zaisťuje viac ako dostatok výkonu až pre 12 gigabitových portov.
Až 4 ethernetové porty WAN: 2 gigabitové porty SFP WAN/LAN, 1 gigabitový port RJ45 WAN a 1 gigabitový port RJ45 WAN/LAN.
PoE s výstupným napájaním 110 W: 8 portov PoE+ RJ45 LAN zodpovedajúcich štandardu 802.3at/af s celkovým výstupným napájaním 110 W.*
Centralizovaná správa: Cloudový prístup a aplikácia Omada pre pohodlnú a jednoduchú správu.
VPN s vysokým zabezpečením: Podporuje pripojenie IPsec VPN, OpenVPN a L2TP/PPTP VPN.
Jednoduchá inštalácia: Kompaktné prevedenie bez ventilátora pre umiestnenie na stôl alebo montáž na stenu.
HARDWARE FEATURES
Standards and Protocols • IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q
• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, SNMP

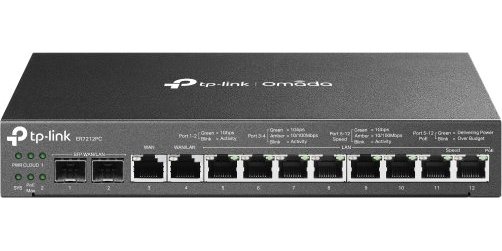

Interface • 2 Gigabit SFP WAN/LAN ports
• 1 Gigabit WAN port
• 1 Gigabit LAN/WAN port
• 8 Gigabit LAN ports
Network Media • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m)
EIA/TIA-568 100? STP (Max 100 m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100 m)
EIA/TIA-568 100? STP (Max 100 m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
Fan Quantity Fanless

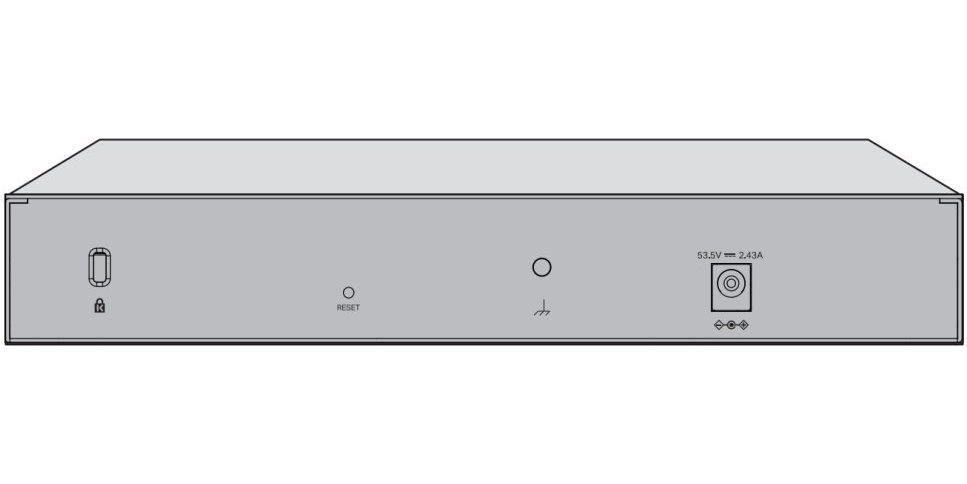

Button Reset Button
Power Supply 53.5VDC/2.43A Adapter
PoE Budget 8 ports PoE+ output, 110 W PoE Budget
Flash 8Mb Nor + 4 GB EMMC
DRAM 1 GB DDR3
Dimensions ( W x D x H ) 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
Protection 4 kV surge protection
Enclosure Steel
Mounting Desktop/Wall-mount
PERFORMANCE
Concurrent Session 24,980
New Sessions /Second 1,900
NAT (Static IP) 935.5 Mbps / 942.1 Mbps
NAT(DHCP) 940.2 Mbps / 941.7 Mbps
NAT(PPPoE) 913.1 Mbps / 935.2 Mbps
NAT (L2TP) 545.0 Mbps / 912.7 Mbps
NAT (PPTP) 523.0 Mbps / 912.8 Mbps
IPsec VPN Throughput (AES256) 168.5 Mbps
OpenVPN 34 Mbps
L2TP VPN Throughput • Unencrypted: 845.3 Mbps
• Encrypted: 333.2 Mbps
PPTP VPN Throughput • Unencrypted: 1012.6 Mbps
• Encrypted: 401.4 Mbps
66 Byte Packet forwarding rate 154,069 pps / 156,977 pps
1,518 Byte Packet forwarding rate 81,193 pps / 81,193 pps
BASIC FUNCTIONS
WAN Connection Type • Static IP
• Dynamic IP
• PPPoE
• PPTP
• L2TP
DHCP • DHCP Server
• DHCP Address Reservation
• Multi-IP Interfaces
• Multi-Net DHCP
IPv6 support
VLAN 802.1Q VLAN
IPTV IGMP v2/v3 Proxy
ADVANCED FUNCTIONS
Advanced Routing • Static Routing
• Policy Routing
Bandwidth Control IP/Port-based Bandwidth Control
Load Balance • Intelligent Load Balance
• Application Optimized Routing
• Link Backup
• Online Detection
NAT • Multi-Net NAT
• Virtual Server
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP
Session Limit IP-based Session Limit
VPN
IPsec VPN • 20 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• AES128, AES192, AES256 Encryption Algorithm
• IKE v1/v2
• SHA1, SHA2 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)
PPTP VPN • PPTP VPN Server
• PPTP VPN Client (10)
• 16 Tunnels
• PPTP with MPPE Encryption
L2TP VPN • L2TP VPN Server
• L2TP VPN Client (10)
• 16 Tunnels
• L2TP over IPSec
OpenVPN • OpenVPN Server
• OpenVPN Client (10)§
• 16 OpenVPN Tunnels
SECURITY
Filtering URL Filtering
Attack Defense • TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN
Access Control Source/Destination IP Based Access Control
AUTHENTICATION
Web Authentication • No Authentication
• Simple Password
• Hotspot (Local User / Voucher / SMS / Radius)
• External Radius Sever
• External Portal Sever
• Facebook
MANAGEMENT
Omada App Yes
Cloud Access Yes
Service Dynamic DNS (Dyndns, No-IP)
Maintenance • Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3
• Syslog Support
Management Features • Automatic Device Discovery
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration
• Management up to 1 Router, 2 Switches and 10 EAPs
OTHERS
Certification CE, FCC, RoHS
Package Contents • ER7212PC
• Power Adapter
• Power Cord
• Quick Installation Guide
System Requirements • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10
• MAC OS, NetWare, UNIX or Linux
Environment • Operating Temperature: 0 °C to 45 °C (32 °F to 113 °F)
• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
• Operating Humidity: 10% to 90% non-condensing
• Storage Humidity: 5% to 90% non-condensing
