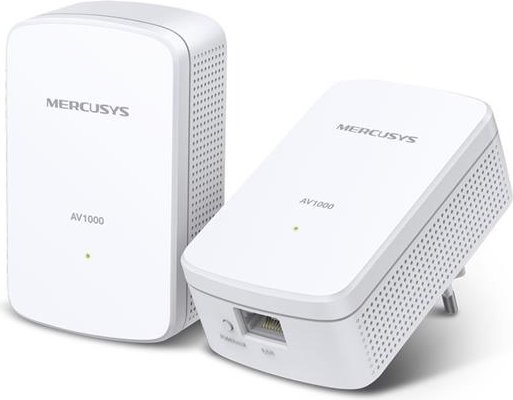

AV1000 Gigabit Powerline Starter Kit
MP500 KIT
1000 Mbps High-Speed Transfer Rate — Fast and stable transmissions with advanced HomePlug AV2
Super-Fast Wired Connection — A gigabit port provides high-speed internet to PCs, IPTVs, and game consoles
Plug & Play — No wiring and configuration required—simply plug in
Easy Expansion — Expand coverage by simply adding more Powerline adapters
Plug Type
EU
Standards and Protocols
HomePlug AV2, HomePlug AV, IEEE 1901,
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Interface
Gigabit Ethernet Port
Button
Pair/Reset button
Power Consumption
Maximum: 2.87 W (220 V/50 Hz)
Typical: 2.35 W (220 V/50 Hz)
Standby: 0.64 W (220 V/50 Hz)
LED
Power
Dimensions (W X D X H)
101*60*36 mm
Range
300 Meters over electrical circuit
Modulation Technology
OFDM (PLC)
Encryption
Powerline Security: 128-bit AES
Certifications
CE, RoHS
Package Contents
Powerline Ethernet Adapter
6.5 ft. (2 m) Ethernet cable (RJ45)
Quick Installation Guide
Environment
Operating Temperature: 0°C~40°C (32°F ~104°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
