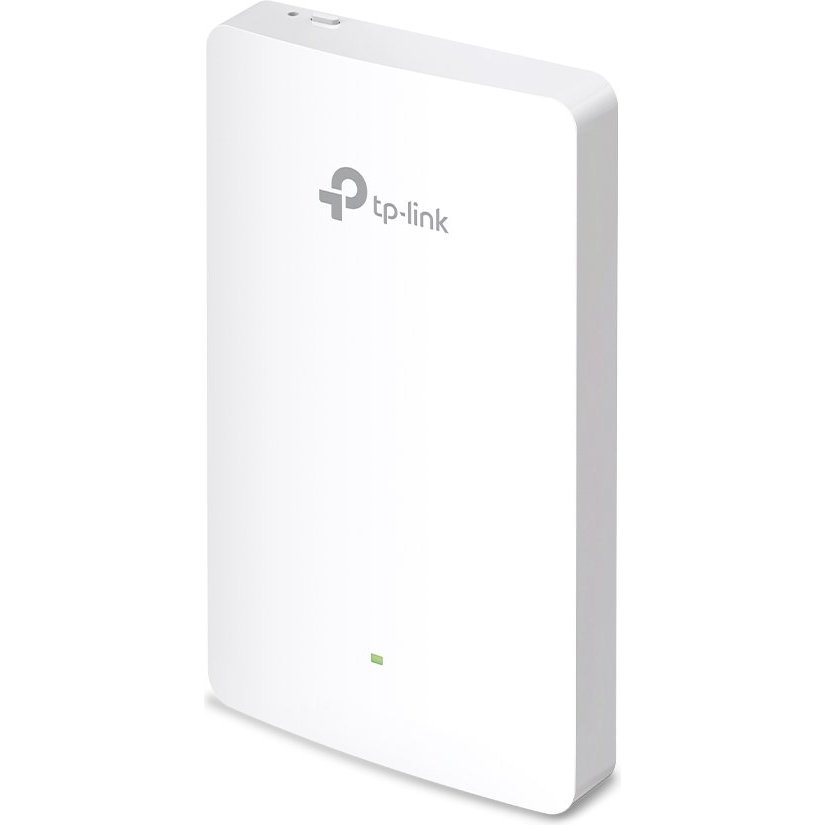

EAP615-Wall
Nástenný prístupový bod AX1800 s Wi-Fi 6
Neuveritelné rýchlosti siete Wi-Fi 6: Simultánna rýchlosť 574 Mbit/s v pásme 2,4 GHz a 1 201 Mbit/s v pásme 5 GHz poskytujú výslednou prenosovou rýchlosťou 1 775 Mbit/s v sieti Wi-Fi.**
Vysoko výkonné možnosti pripojenia: Zaistenie vyššej efektivity siete a nižšia latencia.
Štyri gigabitové porty: 4 gigabitové ethernetové porty (1× odchozí + 3× prichádzajúci), jeden z hosťujúcich portov podporuje technológiu PoE, ktorá poskytuje elektrické napájanie pre pripojené zariadenia.‡
Centralizovaná správa: Integrace s platformou Omada SDN umožňuje cloudový prístup a vzdialenú správu.
Zabezpečená sieť pre hostí: Poskytuje niekoľko možností overovania (SMS / Facebook Wi-Fi / Voucher atď.) a rad technologií pre zabezpečenie bezdrôtových sietí.†
Jednoduchá inštalácia a podpora PoE
HARDWARE FEATURES

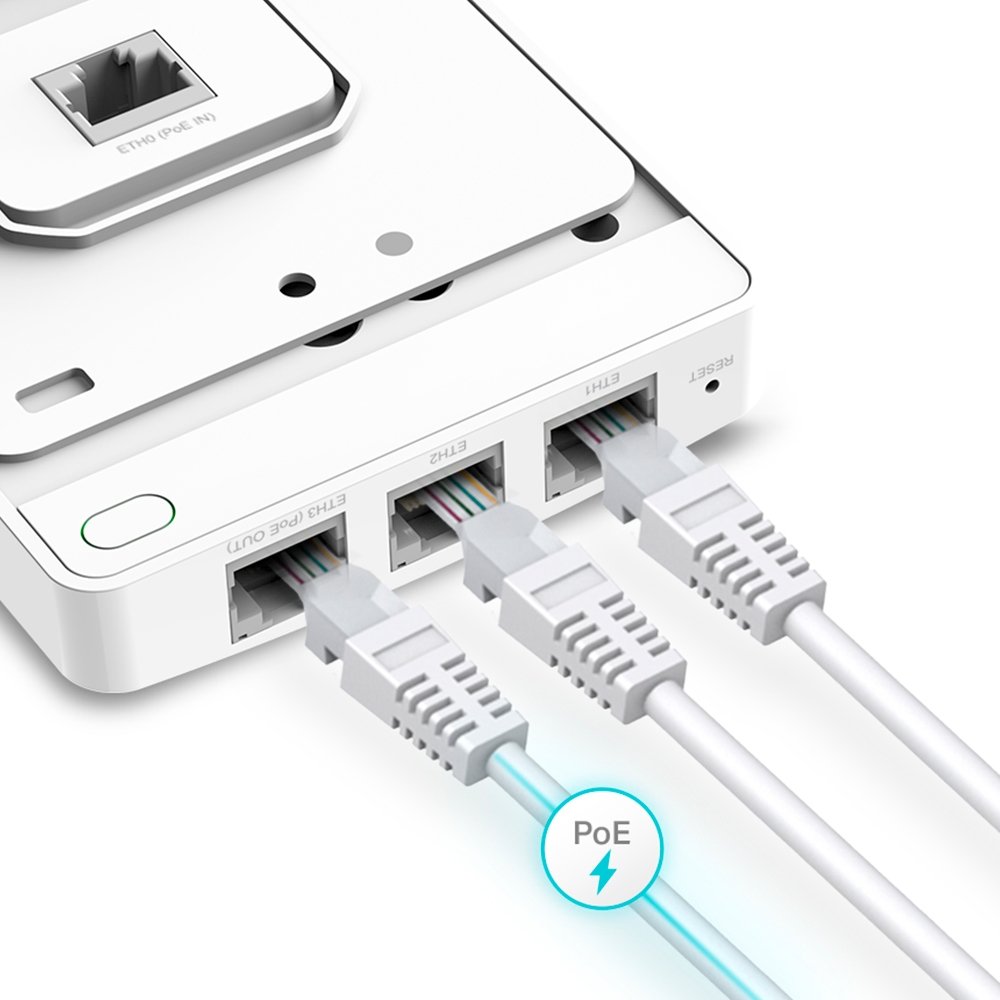

Interface • Uplink: 1× 10/100/1000 Mbps Ethernet Port
• Downlink: 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input.The maximum power output for POE pass-through is 13 W (EU version) or 12 W (US version), based on laboratory testing.)
Physical Security Lock Yes
Button Reset
Power Supply 802.3af/at PoE
Power Consumption EU: 10W (802.3at PoE, PoE Out off)
US: 11.5W (802.3at PoE, PoE Out off)
Dimensions 143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in)
Antenna 2 Dual-Band Antennas
• 2.4 GHz: 2× 3 dBi
• 5 GHz: 2× 4 dBi
Mounting Wall Plate Mounting
WIRELESS FEATURES
Wireless Standards IEEE 802.11ax/ac/n/g/b/a
Frequency 2.4 GHz and 5 GHz
Signal Rate • 5 GHz: Up to 1201 Mbps
• 2.4 GHz: Up to 574 Mbps
Wireless Functions • 16 SSIDs (Up to 8 SSIDs on each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• Seamless Roaming†
• Beamforming
• MU-MIMO
• Rate Limit
• Load Balance
• Airtime Fairness
• Band Steering
• Reboot Schedule
• Wireless Schedule
• RADIUS Accounting
• MAC Authentication
• Wireless Statistics
• Static IP/Dynamic IP
Wireless Security • Captive Portal Authentication†
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• VLAN
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power • CE:
< 20 dBm (2.4 GHz, EIRP)
< 23 dBm (5 GHz, EIRP)
• FCC:
< 21 dBm (2.4 GHz)
< 21 dBm (5 GHz)
MANAGEMENT
Omada App Yes
Centralized Management • Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access Yes (Through OC300, OC200, or Omada Software Controller)
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c, v3
System Logging Local/Remote Syslog Local/Remote Syslog
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
OTHERS
Certification CE, FCC, RoHS
Package Contents • AX1800 Wall Plate WiFi 6 Access Point EAP615-Wall
• Installation Guide
• Mounting Kits
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Environment • Operating Temperature: 0–40 ? (32–104 ?)
• Storage Temperature: -40–70 ? (-40–158 ?)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
