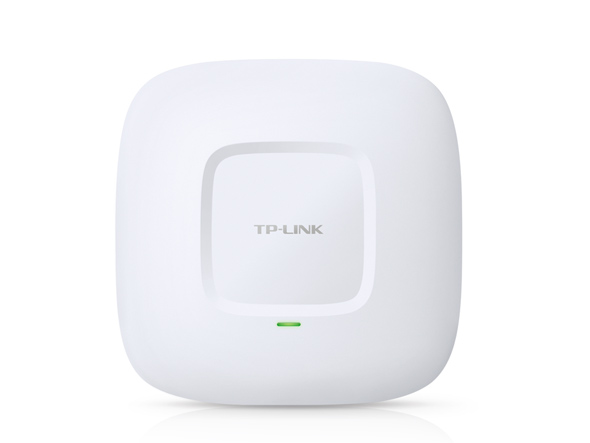

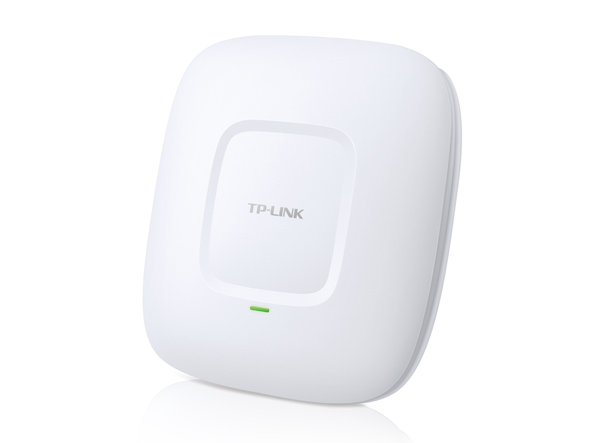

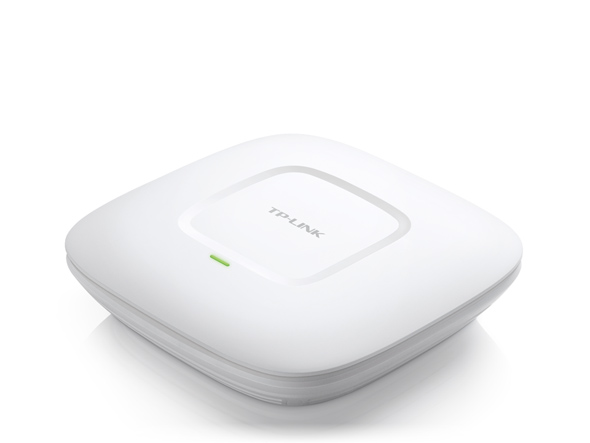

300Mbps Wireless N Ceiling Mount Access Point: EAP115
PŘEHLED
*Free Auranet Controller Software enables administrators to easily manage hundreds of EAPs
*The user-friendly Cluster Mode allows manage up to 24 (EAP115) without requiring any extra hardware or software
*Supports Power over Ethernet (802.3af) for convenient and affordable installation
*Simple mounting design for easy attachment to a wall or ceiling
*Captive portal provides one convenient method of authentication for Wi-Fi guests
*Enterprise class Wi-Fi security help to decrease network security threats
*Multi-SSID divides multiple wireless networks for different user types
TECHNICKÁ SPECIFIKACE
Interface
* Fast Ethernet (RJ-45) Port *1(Support IEEE802.3af PoE)
Button
* Reset
Power Supply
* PoE or external 12VDC/1.0A power supply
Power Consumption
* 5W
Wireless Standards
* IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensions ( W x D x H )
* 180*180*47.5mm
Antenna Type
* Internal 2* 3dBi Omni
Mounting
* Ceiling /Wall Mounting (Kits included)
Physical Security Lock
* Kensington Lock Slot
Watch Dog
* Yes
WIRELESS FEATURES
Wireless Standards
* IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency
* 2.4-2.4835GHz
Signal Rate
* 11n: Up to 300Mbps(dynamic)
* 11g: Up to 54Mbps(dynamic)
* 11b: Up to 11Mbps(dynamic)
Reception Sensitivity
* 300M: -71dBm@10% PER
* 150M: -75dBm@10% PER
* 54M: -78dBm@10% PER
* 11M: -93dBm@8% PER
* 6M: -92dBm@10% PER
* 1M: -96dBm@8% PER
Wireless Functions
* Multiple SSIDs (Up to 8 SSIDs)
* Enable/Disable Wireless Radio
* Automatic Channel Assignment
* Transmit Power Control (Adjust Transmit Power on dBm)
* QoS(WMM)
* Rate Limit
* Reboot Schedule
* Wireless Schedule
* Wireless Statistics based on SSID/AP/Client
Wireless Security
* Captive Portal Authentication
* Access Control
* Wireless Mac Address Filtering
* Wireless Isolation Between Clients
* SSID to VLAN Mapping
* Rogue AP Detection
* 802.1X Support
* 64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK
Transmission Power
* CE:
* <20dBm
* FCC:
* <26dBm
* MANAGEMENT
Auranet Controller Software
* Yes
Cluster Mode
* Yes
Email Alerts
* Yes
LED ON/OFF Control
* Yes
Management MAC Access Control
* Yes
SNMP
* v1,v2c
System Logging Local/Remote Syslog
* Local/Remote Syslog
Telnet
* Yes
Web-based Management
* HTTP/HTTPS
OTHERS
Certification
* CE, FCC, RoHS
Package Contents
* 300Mbps Wireless N Ceiling Mount Access Point EAP115
* Power Adapter
* Mounting Kits,
* Installation Guide
System Requirements
* Microsoft Windows 10/8/7/Vista/XP
Environment
* Operating Temperature: 0°C~40°C
* Storage Temperature: -40°C~70°C
* Operating Humidity: 10%~90% non-condensing
* Storage Humidity: 5%~90% non-condensing
