| Hardwarové funkce |
| Processor |
Qualcomm Atheros Enterprise AR9350B 560MHz CPU, MIPS 74Kc |
| Memory |
64MB DDR2 RAM, 8MB Flash |
| Rozhraní |
1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in) |
| 1 10/100Mbps Shielded Ethernet Port (LAN1, Passive PoE Passthrough) |
| 1 Grounding Terminal |
| 1 Reset Button |
| Rozměry (š*h*v) |
224 x 79 x 60 mm |
| Typ antény |

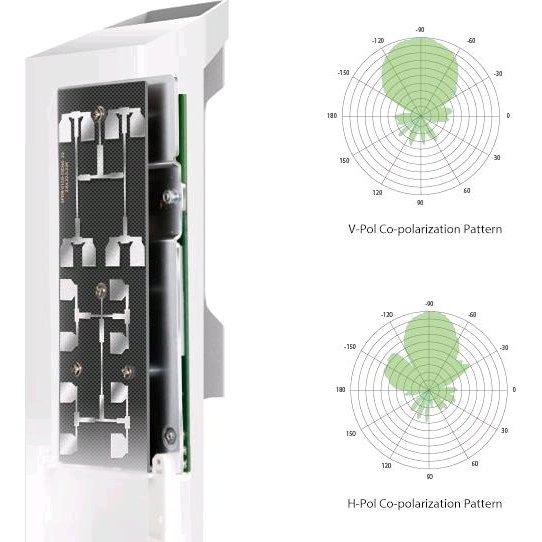

Built-in 13dBi 2x2 Dual-polarized Directional Antenna |
| Beam Width: 45° (H-Plane) / 30° (E-Plane) |
| Note: For more details, please refer to datasheet |
| Ochrana |
15KV ESD Protection |
| 6000V Lightning Protection |
| Spotřeba |
13 Watts Max |
| Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable. |
| Napájení |

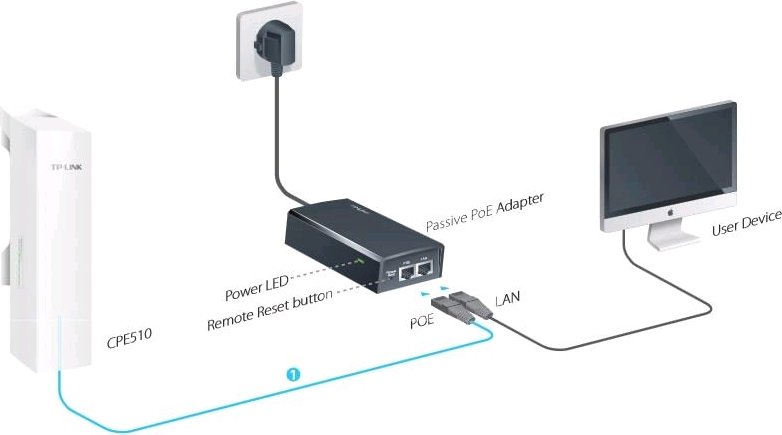

Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins) |
| Voltage range: 16-27VDC |
| Enclosure |
Outdoor ASA stabilized plastic material |
| IPX5 waterproof Certification |
| Funkce bezdrátové sítě |
| Standardy bezdrátové sítě |
IEEE 802.11a/n (with Pharos MAXtream disabled) |
| Proprietary Protocol |
TDMA Mode (with Pharos MAXtream enabled) |
| Wireless Speeds |
Up to 300Mbps (40MHz,Dynamic) |
| Up to 144.4Mbps (20MHz,Dynamic) |
| Up to 72.2Mbps (10MHz,Dynamic) |
| Up to 36.1Mbps (5MHz,Dynamic) |
| Frekvence |
5.15~5.85GHz |
| Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used. |
| Citlivost příjmu |
• 802.11a: |
| 54M: -75dBm, 48M: -76dBm, 36M: -83dBm, 6-24M: -95dBm |
| • 802.11n: |
| MCS15: -73dBm, MCS14: -74dBm, MCS13: -76dBm, |
| MCS12: -80dBm, MCS11: -83dBm, MCS10: -88dBm, |
| MCS9: -90dBm, MCS8: -93dBm, MCS7: -73dBm, |
| MCS6: -74dBm, MCS5: -76dBm, MCS4: -80dBm, |
| MCS3: -83dBm, MCS2: -88dBm, MCS1: -90dBm, MCS0: -93dBm |
| Transmission Power |
27dBm/500mw (Adjustable power by 1dBm) |
| Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used. |
| Softwarové funkce |
| Wireless Configurations |
Pharos MAXtream TDMA Technology |
| 802.11a/n Modes |
| Selectable Channel Width: 5/10/20/40MHz |
| Automatic Channel Selection |
| Transmission Power Control |
| Dynamic Frequency Selection (DFS) |
| WDS Enable/Disable |
| Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption |
| SSID Broadcast Enable/Disable |
| Multi-SSID with VLAN Tagging (AP mode only) |
| Distance/ACK Timeout Setting |
| Wireless MAC Address Filter |
| Wireless Advanced: |
| > Beacon Interval/RTS Threshold/Fragmentation |
| >Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia |
| Správa |
Discovery and Remote Management via Pharos Control application |
| HTTP/HTTPS Web-based management |
| System Log |
| SNMP Agent(v2c) |
| Ping Watch Dog |
| Dynamic DDNS |
| SSH Server |
| System Tools |
Wireless Signal Quality Indicators: |
| Signal Strength/Noise/Transmit CCQ/CPU/Memory |
| Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP |
| Spectrum Analyzer |
| Speed Test |
| Ping |
| Traceroute |
| System-level Optimizations |
Optimized IGMP Snooping/Proxy for multicast applications |
| Hardware watch dog |
| JINÉ |
| Certifikace |
CE, FCC, RoHS, IPX5 |
| Obsah balení |
Outdoor Wireless CPE |
| 24V 1A Passive PoE Adapter |
| Pole Mounting Straps |
| AC Power Cord |
| Installation Guide |
| Systémové požadavky |
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. |
| Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended. |
| Provozní prostředí |
Operating Temperature: -30°C~70°C (-22?~158?) |
| Storage Temperature: -40?~70? (-40?~158?) |
| Operating Humidity: 10%~90% non-condensing |
| Storage Humidity: 5%~95% non-condensing |
| POE ADAPTER FEATURES |
| Button |
Remote Reset Button |
| Certifications |
CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark |
| Dimensions(W x D x H) |
110*57*33.5mm |
| Efficiency |
>80% |
| Input |
100-240VAC, 50/60Hz |
| Input Current |
0.8A Max @ 100VAC |
| Input Voltage |
100VA~240VAC @ 50Hz~60Hz |
| Interfaces |
1 AC Jack with Earth Ground |
| 1 10/100Mbps Shielded Ethernet Port (Power + Data) |
| 1 10/100Mbps Shielded Ethernet Port (Data) |
| Output |
24VDC, 1.0A Max |
| +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet) |
| Output Voltage |
24VDC(+4,5pins; -7,8pins) |
| Power Status LEDs |
0~0.8A: Green |
| 0.8A~1.0A: Red |
