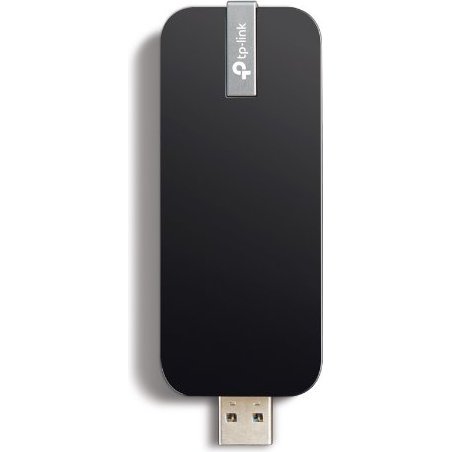

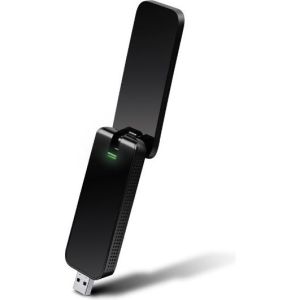

TP-Link Archer T4U AC1200 Wifi Dual Band USB Adapter
OVERVIEW
• Ultra-fast 1200 (867+300)Mbps wireless speed with 802.11ac
• Dual Band connections for lag-free HD video streaming and gaming
• SuperSpeed USB 3.0 port—Up to 10x faster than USB 2.0
• Easy wireless security encryption at a push of the WPS button
• Equipped with a USB Extension Cable for flexible deployment
SPECIFICATIONS
HARDWARE FEATURES
Interface
• USB 3.0
Button
• WPS button
Dimensions (W X D X H)
• 92.2×29×14.6mm
Antenna Type
• Omni Directional
WIRELESS FEATURES
Wireless Standards
• IEEE 802.11ac, IEEE 802.11a, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency
• 5GHz
• 2.4GHz
Signal Rate
• 5GHz
- 11ac: Up to 867Mbps(dynamic)
- 11a: Up to 54Mbps(dynamic)
• 2.4GHz
- 11n: Up to 300Mbps(dynamic)
- 11g: Up to 54Mbps(dynamic)
- 11b: Up to 11Mbps(dynamic)
EIRP
• <20dBm (EIRP)
Reception Sensitivity
• 5GHz
- 11a 6Mbps: -88dBm
- 11a 54Mbps: -71dBm
- 11ac HT20: -65dBm
- 11ac HT40: -60dBm
- 11ac HT80: -56dBm
• 2.4GHz
- 11b 11Mbps: -90dBm
- 11g 54Mbps: -73dBm
- 11n HT20: -71dBm
- 11n HT40: -68dBm
Wireless Modes
• Ad-Hoc / Infrastructure mode
Wireless Security
• Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, 802.1x
Modulation Technology
• DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM
OTHERS
Certification
• CE, FCC, RoHS
Package Contents
• Wireless Adapter Archer T4U
• Resource CD
• Quick Installation Guide
• USB Extension Cable
System Requirements
• Windows 8 (32/64bits), Windows 7 (32/64bits), Windows XP(32/64bits)
Environment
• Operating Temperature: 0?~40?
• Storage Temperature: -40?~70?
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
