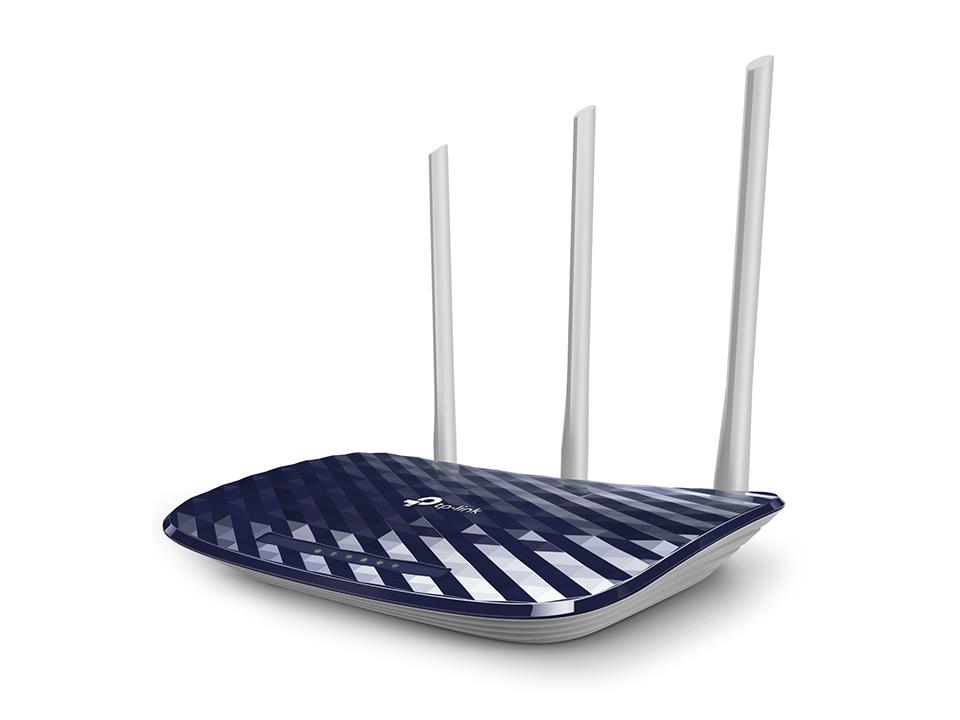

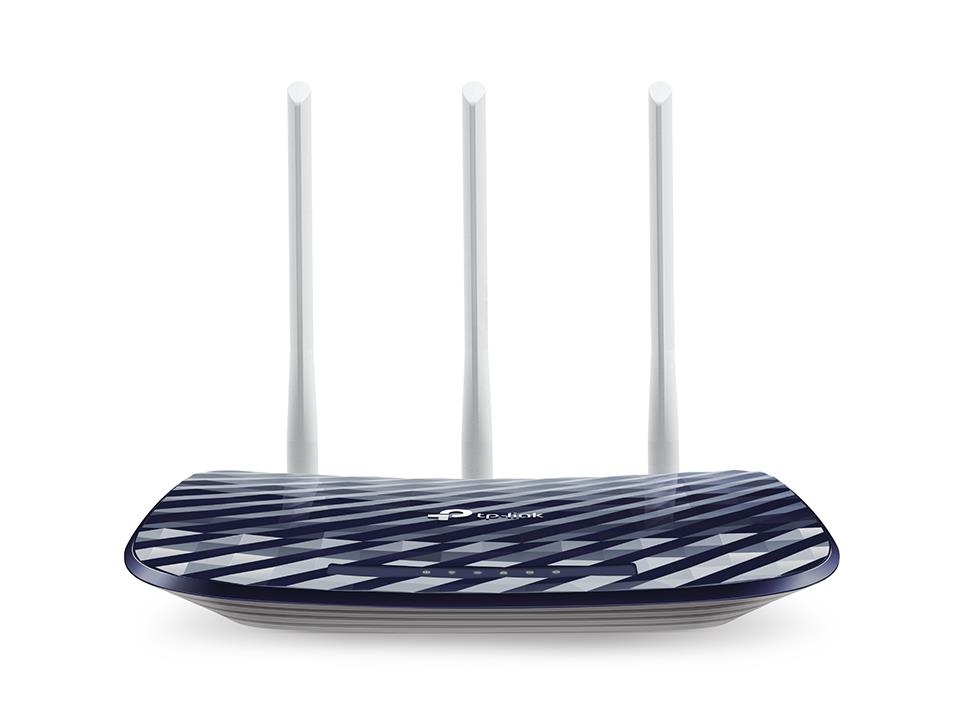

Bezdrátový router s duálním pásmem AC750
Archer C20
Podporuje standard 802.11ac – další generace Wi-Fi
Simultánní 2,4GHz 300Mbit/s a 5GHz 433Mbit/s připojení, celková dostupná šířka pásma 733 Mbit/s
3 externí antény poskytují stabilní všesměrový signál a vynikající bezdrátové pokrytí
HARDWARE FEATURES

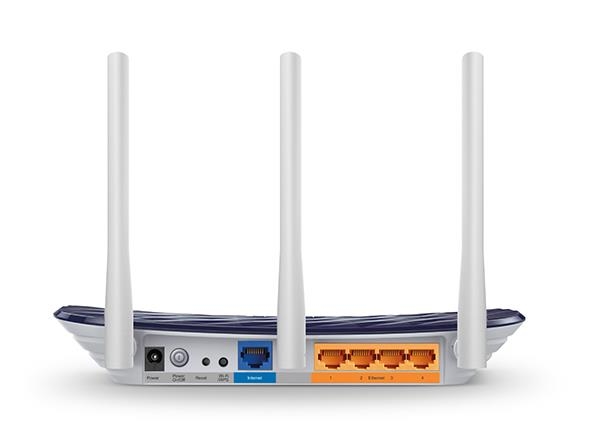

Interface 4 10/100Mbps LAN ports
1 10/100Mbps WAN port
Button WPS/Reset Button
Wireless On/Off Switch
Power On/Off Button
Antenna 2 × 2.4GHz Antennas
1 × 5GHz Antenna
External Power Supply 12VDC /1A
Dimensions ( W x D x H ) 9.1 x 5.7 x 1.4 in. (230 x 144 x 35mm)
Antenna Type Two dual band fixed antennas
WIRELESS FEATURES
Wireless Standards IEEE 802.11ac/n/a 5GHz
IEEE 802.11b/g/n 2.4GHz
Frequency 2.4GHz and 5GHz
Signal Rate 5GHz: Up to 433Mbps
2.4GHz: Up to 300Mbps
Reception Sensitivity 5GHz
11a 6Mbps: -91dBm, 11a 54Mbps: -74dBm
11ac HT20: -66dBm, 11ac HT40: -64dBm, 11ac HT80: -61dBm,
11n HT20: -71dBm, 11n HT40: -69dBm
2.4GHz
11g 54M: -76dBm
11n HT20: -74dBm, 11n HT40: -71dBm
Wireless Functions Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless Security 64/128-bit WEP,WPA / WPA2,WPA-PSK/ WPA2-PSK encryption
Transmission Power CE:
<20dBm(2.4GHz)
<23dBm(5GHz)
FCC:
<30dBm
SOFTWARE FEATURES
Quality of Service WMM, Bandwidth Control
Management Access Control
Local Management
Remote Management
Port Forwarding Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS DynDns, Comexe, NO-IP
VPN Pass-Through PPTP, L2TP, IPSec
Access Control Parental Control, Local Management
Control, Host List,
Access Schedule, Rule Management
Firewall Security DoS, SPI Firewall
IP Address Filtering/MAC Address Filtering/Domain Filtering
IP and MAC Address Binding
Protocols Supports IPv4 and IPv6
USB Sharing Support Samba(Storage)/ FTP Server/Media Server/Printer Server
Guest Network 2.4GHz guest network × 1
5GHz guest network × 1
OTHERS
Certification CE, FCC, RoHS

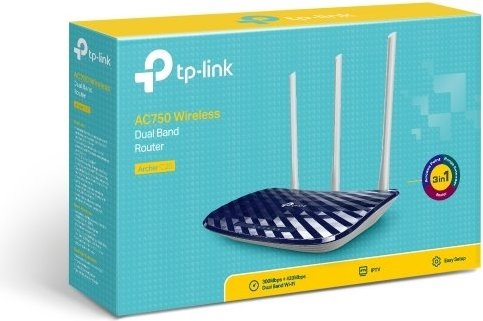

Package Contents AC750 Wireless Dual Band Router Archer C20
2 Fixed Antennas
Power Supply Unit
Resource CD
Ethernet Cable
Quick Installation Guide
Box Dimensions (W X D X H) 11.2 x 8.8 x 3.6 in. (285x223x91mm)
System Requirements Windows 10/8.1/8/7/Vista/XP, Mac OS or Linux-based operating system
Environment Operating Temperature: 0?~40 ? (32 ?~104?)
Storage Temperature: -40?~70 ? (-40 ?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
