OVERVIEW
Extend Your WiFi Network at 1000 Mbps Speeds
Use your existing electrical wiring to extend your WiFi Internet access to any room in your house. Just plug the Powerline Adapter into your modem or router, then plug in the companion PowerLINE WiFi access point to an electrical outlet. It’s that easy. With 1000 Mbps speed and Homeplug AV2 support, the PowerLINE WiFi 1000 is perfect for connecting smart TVs, streaming players, and game consoles wirelessly.
NETGEAR Warranty
*This product is backed by a NETGEAR limited 1-year Hardware Warranty.
*http://www.netgear.com/about/warranty/
*24/7 basic technical support provided for 90 days from purchase date, when purchased from a NETGEAR authorized reseller
TECH SPECS
Product Number
*PLW1000
Powerline Technology
*Homeplug AV2 compliant
Powerline Performance
*1000 Mbps
WiFi Performance
*802.11ac
Number of Ethernet ports
*One (1) 10/100/1000 Gigabit Ethernet port on each adapter
Key Features
*Gigabit PowerLINE WiFi speed
*Perfect for connecting smart TVs, streaming players & game consoles
*Ideal for HD streaming & lag-free gaming
*Typical coverage up to 500 m2
*Pick-a-plug LED for highest possible performance
*Sets up in minutes, no need to install software
*Secures the network connection with the touch of a button
Security
*Push and Secure button
Physical Specifications

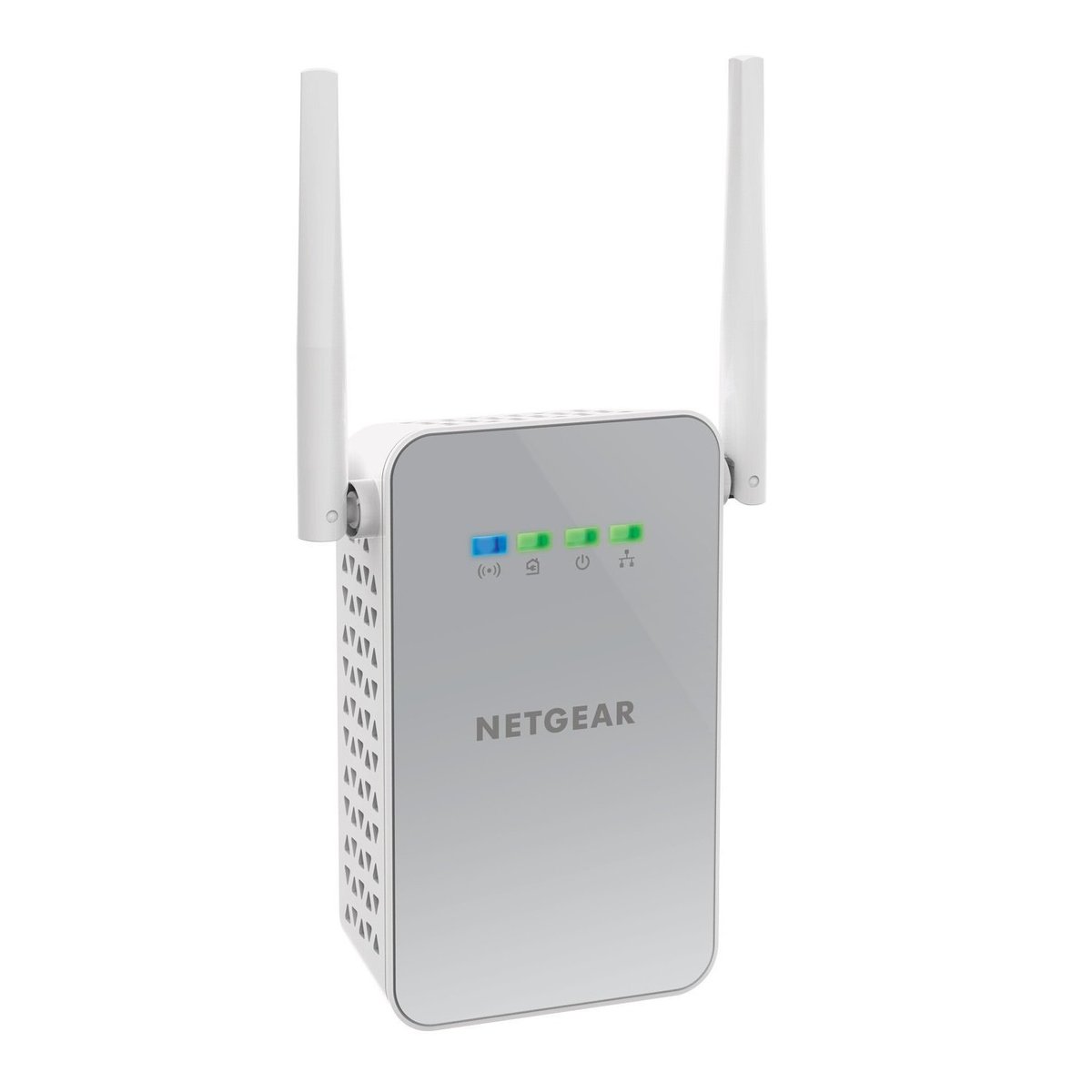

*PowerLINE WiFi 1000 Access Point (PLW1000) Dimensions: 121 x 87 x 38 mm
*PowerLINE WiFi 1000 Access Point (PLW1000) Weight: 266 g
*Powerline 1000 Adapter (PL1000) Dimensions: 100 x 59 x 35.9 mm
*Powerline 1000 Adapter (PL1000) Weight: 126 g
Package Contents

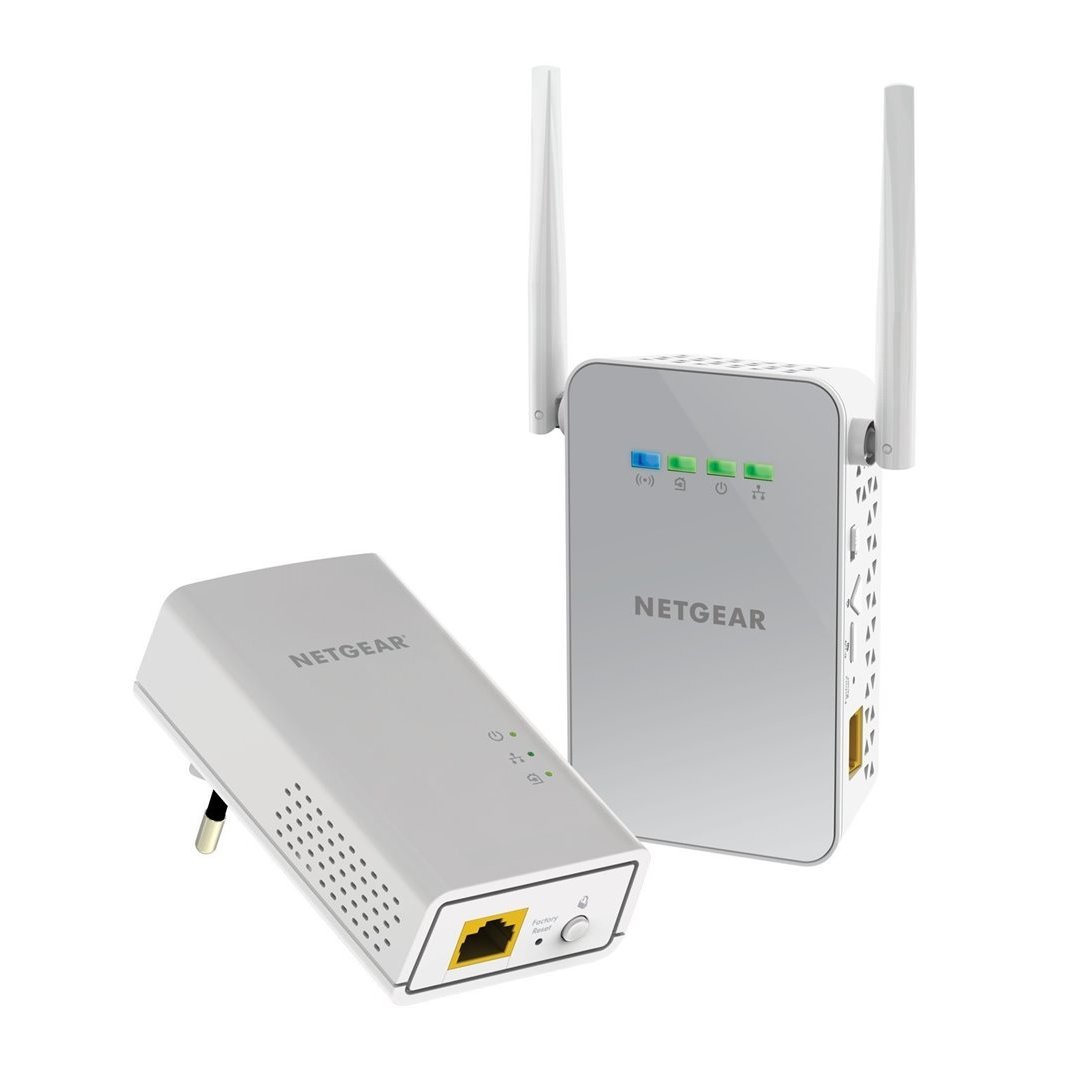

*One (1) PowerLINE WiFi 1000 Access Point (PLW1000)
*One (1) Powerline 1000 Adapter (PL1000)
*Two (2) 2 m (6.5 ft) Ethernet cables
*Quick install documentation
Standards
*10/100/1000 Mbps† Gigabit Ethernet port
*PowerLINE WiFi 1000 Access Point (PLW1000): IEEE® 2.4 GHz/5 GHz 802.11 b/g/n/ac wireless interface
*HomePlug® AV2 compliant*
*IEEE® 1901 and IEEE® 802.3 compliant
System Requirements
*RJ-45 Ethernet port to connect via Ethernet cable
*2.4 GHz/5 GHz 802.11 b/g/n/ac wireless interface to connect wirelessly to PLW1000
*Microsoft® Windows® 8, 7, Vista®, XP or Mac OS® X to install software utility
WEBSITE
*Technical specification: http://www.netgear.com/home/products/networking/powerline/PLW1000.aspx#tab-techspecs
