OmniTIK U-5HnD
OVERVIEW

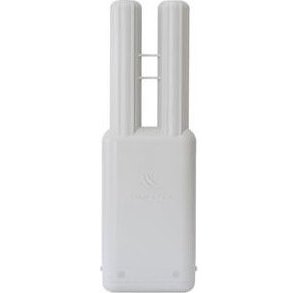

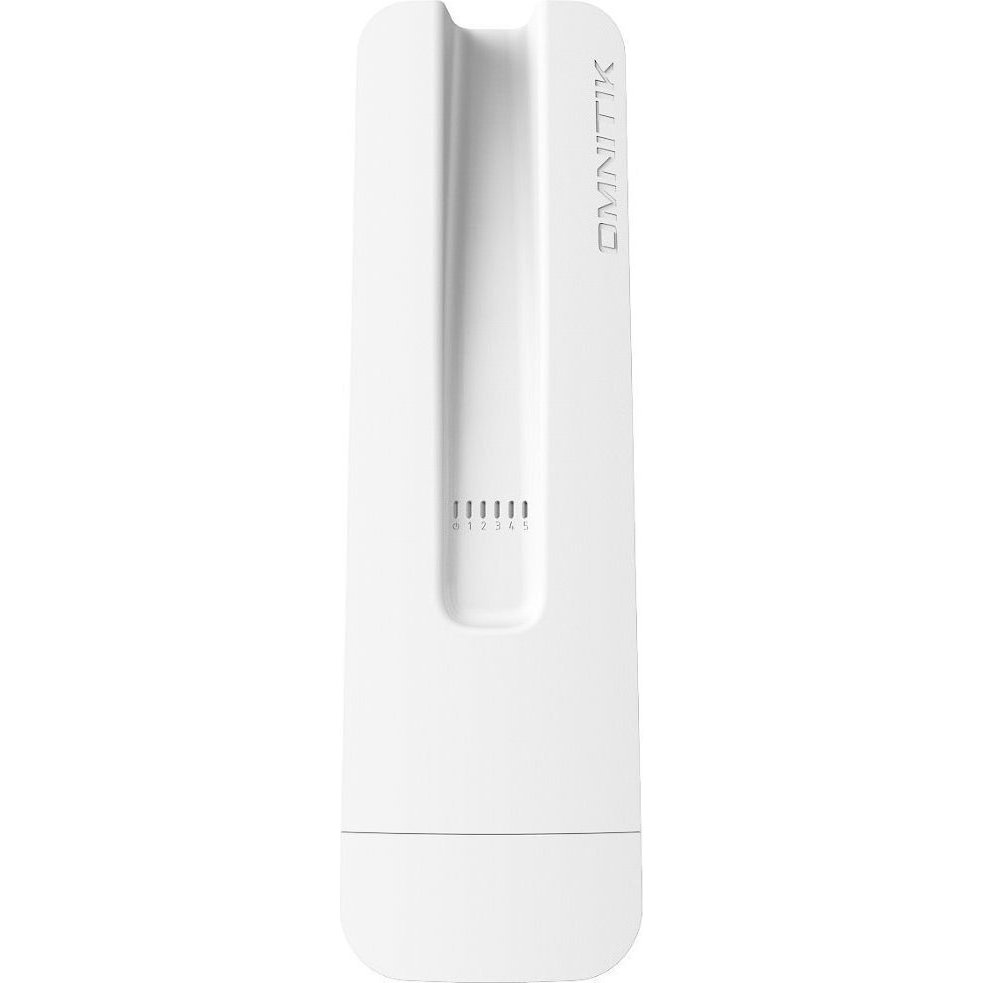

OmniTIK is a weatherproof outdoor AP with dual-polarized omni antennas - the perfect companion for our SXT, or for any other 802.11 standard device.

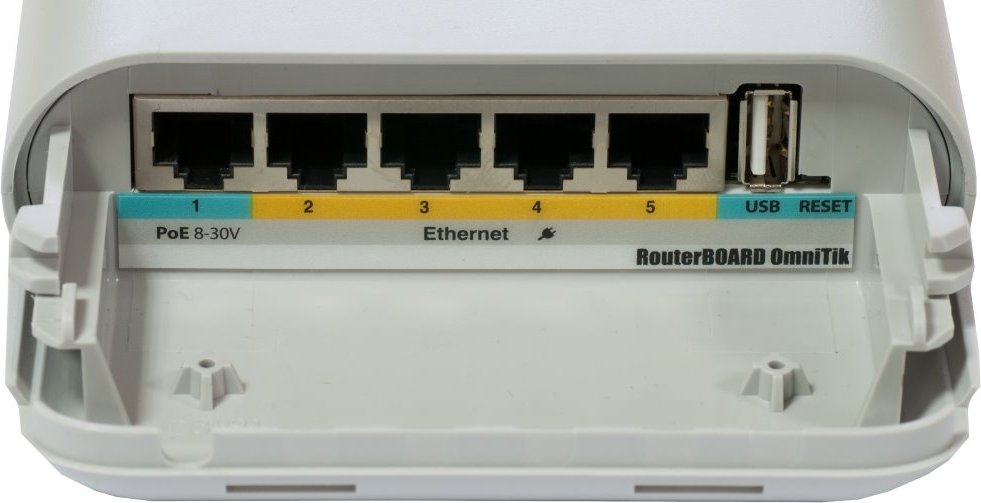

Weatherproof, durable and ready to use. It has five 10/100 Ethernet ports, PoE support and a built-in 400mW 802.11a/n wireless radio. It supports Nv2 TDMA technology with up to 200Mbit aggregate throughput.
LED signal indicators on it’s back are fully customizable, show Ethernet activity or wireless signal - or any other information from RouterOS. The USB port gives the ability to connect a 3G modem or a storage drive. The OmniTIK runs RouterOS with all it’s features
Box contains: OmniTik U-5HnD, mounting loops, PoE injector, power adapter
SPECIFICATIONS
Product code
· RBOmniTikU-5HnD
CPU speed
· 400MHz
RAM
· 32MB
Architecture
· MIPS-BE
LAN ports
· 5
Gigabit
· No
MiniPCI
· 0
Integrated Wireless
· Yes
Wireless standards
· 802.11a/n
USB
· Yes
Memory Cards
· No
Power Jack
· No
802.3af support
· No
PoE
· 8-30V
Voltage Monitor
· No
PCB temperature monitor
· No
CPU temperature monitor
· No
Dimensions
· 368x125x55mm
Operating Systém
· RouterOS v5 and above
Temperature range
· -30 .. +70C
RouterOS License
· Level4
Antenna gain
· 7.5dBi
Current Monitor
· No
TX power
· 26dBm
