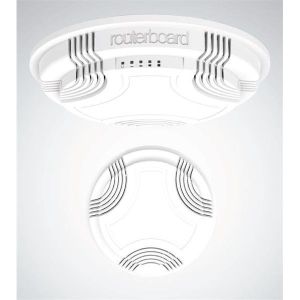

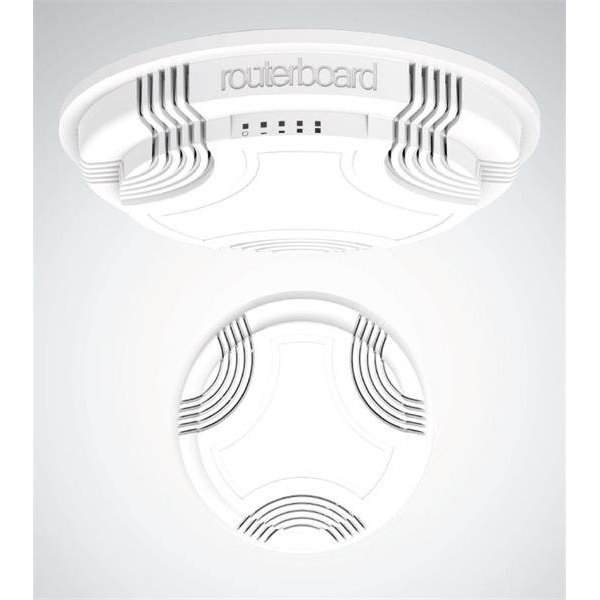

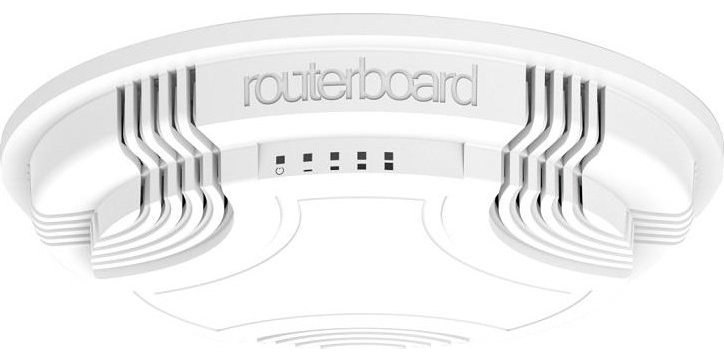

cAP-2n RouterBOARD cAP-2n is our first 2.4GHz ceiling AP. Inconspicuously designed, it blends
into the environment, perfect for hospitality business like hotels, airports, shopping malls
etc.
cAP-2n supports 802.11b/g/n and can be powered by PoE. It’s a perfect companion for
the MikroTik CAPsMAN (controlled AP system manager), allowing you to control all your
AP devices from one central location.
Unlike traditional controller software, which requires a separate PC/Mac to run, our
CAPsMAN runs on any existing RouterBOARD device in your network. No need for a
separate controller machine.
Everything is included to get you started, wall/ceiling mount, PoE injector, power adapter
and even the screws and screw anchors.¨
CPU Atheros AR9331-AL1A 300MHz network processor
Ethernet One 10/100 Mbit/s Fast Ethernet port with Auto-MDI/X
Wireless Wireless Built-in 2.4 GHz 802.11b/g/n, one chain
Extras Reset switch
LEDs 5x LEDs, 1x user LED
Power options 12-56V
Consumption 2W
Dimensions ? 185mm, height: 31mm
Operating temperature -30C to +70C
Operating system WISP AP (level 4) license
Package contains 24V 0.38A power adapter, PoE injector
802.11b/g RX Sensitivity TX Power
1Mbit -96 17dBm
11Mbit -88 17dBm
6Mbit -92 15dBm
54Mbit -73 11dBm
802.11n RX Sensitivity TX power
MCS0 -92 15dBm
MCS7 -70 10dBm
