RB951Ui-2HnD
OVERVIEW

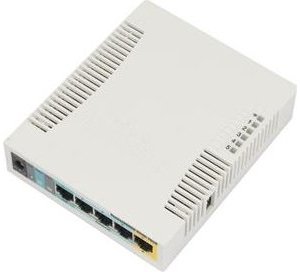

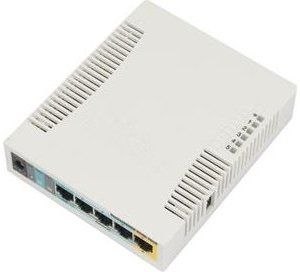

The RB951Ui-2HnD is a wireless SOHO AP with a new generation Atheros CPU and more processing power. It has five Ethernet ports, one USB 2.0 port and a high power 2.4GHz 1000mW 802.11b/g/n wireless AP with antennas built in.
It has a 600MHz CPU,128MB of RAM and PoE output function for port #5 - it can power other PoE capable devices with the same voltage as applied to the unit. Maximum load on the port is 500mA.
Package contains RouterBOARD 951Ui-2HnD in a plastic case and power adapter.
SPECIFICATIONS
Product code
• RB951Ui-2HnD
CPU speed
• 600MHz
CPU cores
• 1
RAM
• 128
LAN ports
• 5
Gigabit
• No
MiniPCI
• 0
Integrated Wireless
• Yes
Wireless standards
• 802.11b/g/n
USB
• 1
Power Jack
• Yes
802.3af support
• No
PoE
• 8-30V DC on Ether1
Voltage Monitor
• No
PCB temperature monitor
• No
CPU temperature monitor
• No
Dimensions
• 113x138x29mm
Operating Systém
• RouterOS
Temperature range
• -20C +50C
RouterOS License
• L4
Antenna gain
• 2.5dBi
Current Monitor
• No
TX power
• 30dBm
Max Power consumption
• Up to 7W
SFP ports
• 0
