RB912UAG-5HPnD-OUT
OVERVIEW

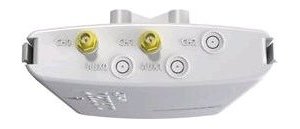

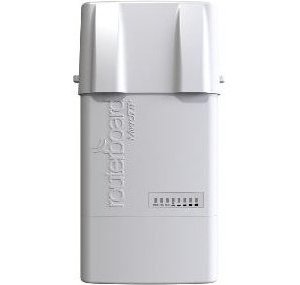

The RB912 in an outdoor enclosure, fit with two RPSMA connectors for antennas, and a cable hood for protection against moisture. Also available are three additional places for antenna connectors, in case you wish to use the RB912 miniPCIe slot for one more wireless interface to make a dual band device.
The case can be opened with one hand, and is protected against the elements. USB, Ethernet and a Grounding wire exits are provided on the bottom, behind a protective door.
Comes with a mounting loop for tower/pole mounting, and a separate DIN rail mount is also provided. Package also includes a PoE injector
and power supply unit.
Box contains: RB912 outdoor unit, PSU, PoE injector, mounting loop, DIN rail mount
SPECIFICATIONS
Product code
· RB912UAG-5HPnD-OUT
CPU speed
· 600Mhz
CPU cores
· 1
RAM
· 64MB
LAN ports
· 1
Gigabit
· Yes
miniPCI-e
· 1
Integrated Wireless
· Yes
Wireless standards
· 802.11an
USB
· 1
Power Jack
· Yes
802.3af support
· No
PoE
· 8-30V DC
Voltage Monitor
· Yes
CPU temperature monitor
· No
PCB temperature monitor
· Yes
Dimensions
· 246x135x50mm
Operating Systém
· RouterOS
RouterOS License
· L4
Current Monitor
· No
TX power
· 30dBm
Max Power consumption
· 14W at 24v
