Overview

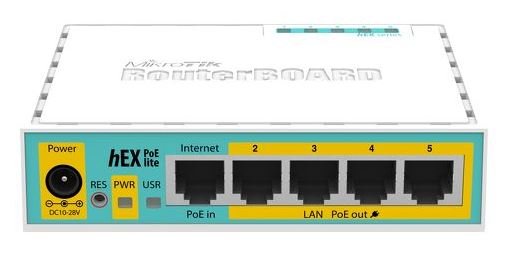

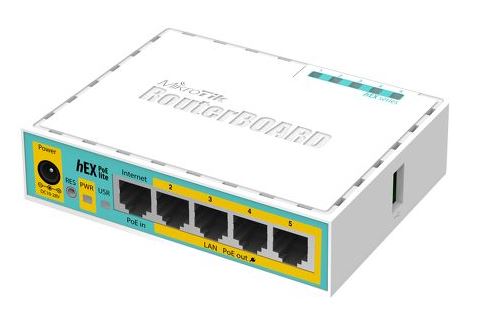

hEX PoE lite is a small five port ethernet router in a plastic case, it has a USB 2.0 port and PoE output.
Ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about! Max current is 1A per port, Ethernet ports are shielded.
It is affordable, small and easy to use. With it’s compact design and clean looks, it will fit perfectly into any SOHO environment.
Technical Specs
Product code
*RB750UPr2
CPU nominal frequency
*650 MHz
CPU core count
*1
Size of RAM
*64 MB
10/100 Ethernet ports
*5
10/100/1000 Ethernet ports
*None
MiniPCI slots
*0
MiniPCI-e slots
*0
Number of USB ports
*1
Power Jack
*1
Supported input voltage
*6 V - 30 V
PoE in
*Yes
PoE out
*Yes
Voltage Monitor
*Yes
CPU temperature monitor
*No
PCB temperature monitor
*Yes
Dimensions
*113x89x28mm
Operating System
*RouterOS
Operating temperature range
*-30 + 70 C
License level
*4
Current Monitor
*Yes
CPU
*QCA9531
Max Power consumption
*3W
SFP ports
*0
SFP+ ports
*0
USB slot type
*USB type A
Serial port
*None
