*300Mbps wireless transmission rate is ideal for basic work
*Two 5dBi antennas provides broad wireless coverage
*Intuitive webpage guides you through the setup process in minutes
Dimensions (W X D X H)
*135.77x93.31x25.85mm
Interfaces
*2 10/100Mbps LAN ports
*1 10/100Mbps WAN port
Button
*RESET
External Power Supply
*5VDC/0.6A
Antenna Type
*2 x 5dBi fixed omni directional antennas
Wireless Standards
*IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency
*2.4 - 2.4835GHz
Signal Rate
*11n: Up to 300Mbps (Dynamic)
*11g: Up to 54Mbps (Dynamic)
*11b: Up to 11Mbps (Dynamic)
Reception Sensitivity
*270M: -70dBm@10% PER
*130M: -74dBm@10% PER
*108M: -77dBm@10% PER
*54M: -76dBm@10% PER
*11M: -90dBm@8% PER
*6M: -92dBm@10% PER
*1M: -97dBm@8% PER
Certifications
*CE, ROHS

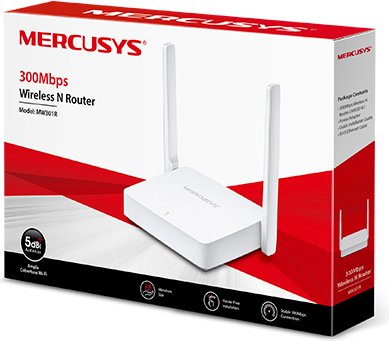

Package Contents
*300Mbps Wireless N Router
*MW301R
*Power adapter
*Quick Installation Guide
*Ethernet cable
Environment
*Operating temperature: 0°C ~ 40°C (32°F ~ 104°F)
*Storage temperature: -40°C ~ 70°C (-40°F ~ 158°F)
*Operating humidity: 10% ~ 90%, non-condensing
*Storage humidity: 5% ~ 90%, non-condensing
Transmission Power
*<20dBm
Wireless Security
*64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK
Wireless Functions
*WDS bridge
WAN Type
*Dynamic IP/Static IP/PPPoE/L2TP/PPTP
Management
*Parental Control
*Access control
*Local management
*Remote management
DHCP
*Server
Port Forwarding
*Virtual server, UPnP, DMZ
Dynamic DNS
*DynDNS, NO-IP
Firewall Security
*IP and MAC address binding
Protocols
*IPv4
Guest Network
*2.4GHz guest network
