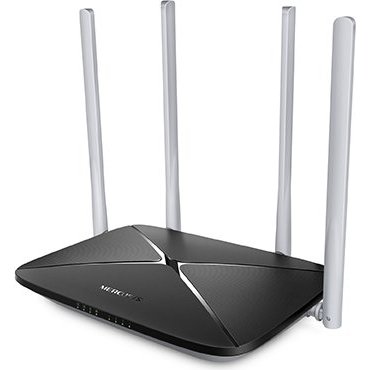

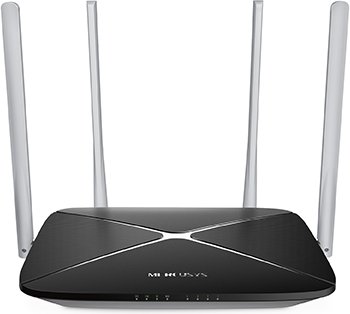

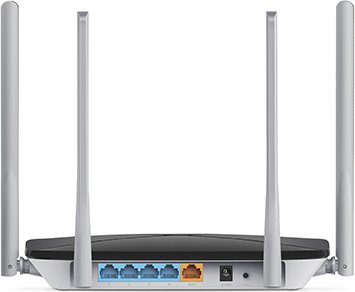

AC1200 Dual Band Wireless Router
AC12
Popis
*Podporuje standard 802.11ac - nová generace Wi-Fi
*Vychutnejte si plynulý online hraní a video streaming s dvoukanálovým Wi-Fi 1200Mbps
*4 externí antény výrazně rozšiřují bezdrátové pokrytí
*Přístup k hostům umožňuje hostům, kteří sdílejí vaši domácí nebo kancelářskou síť, bezpečný přístup k Wi-Fi
*Snadná instalace - intuitivní webová stránka vás provede během několika minut
Specifikace
Dimensions (W X D X H)
*222mm x 140mm x 32mm
Interfaces
*4 10/100Mbps LAN ports
*1 10/100Mbps WAN port
Button
*Reset button
External Power Supply
*9VDC/0.85A
Antenna Type
*4 x 5dBi omni directional antennas
Wireless Standards
*IEEE 802.11ac?IEEE 802.11n?IEEE 802.11g?IEEE 802.11b?IEEE 802.3?IEEE 802.3u
Frequency
*2.390 ~ 2.4835GHz
*5.150 ~ 5.825GHz
Signal Rate
*11ac: Up to 867Mbps (Dynamic)
*11n: Up to 300Mbps (Dynamic)
*11g: Up to 54Mbps (Dynamic)
*11b: Up to 11Mbps (Dynamic)
Reception Sensitivity
*11b CCK 1 -96
*11g OFDM 6 -93
*11n HT20 MCS7 -73
*11n HT40 MCS7 -70
*11a OFDM 6 -92
*11ac VHT20 MCS8 -68
*11ac VHT40 MCS9 -64
*11ac VHT80 MCS9 -60
Certifications
*CE, ROHS
Package Contents
*AC1200 Dual Band Wireless Router
*Power adapter
*Quick installation guide
*Ethernet cable
Environment
*Operating temperature: 0°C ~ 40°C (32°F ~ 104°F)
*Storage temperature: -40°C ~ 70°C (-40°F ~ 158°F)
*Operating humidity: 10% ~ 90%, non-condensing
*Storage humidity: 5% ~ 90%, non-condensing
Transmission Power
*<20dBm
Wireless Security
*WPA-PSK / WPA2-PSK
Wireless Functions
*WDS bridge
WAN Type
*Dynamic IP/Static IP/PPPoE
Management
*Access control
*Local management
*Remote management
DHCP
*Server
Port Forwarding
*Virtual server, UPnP, DMZ
Dynamic DNS
*Oray
Firewall Security
*IP and MAC address binding
Protocols
*IPv4
Guest Network
*2.4GHz guest network
