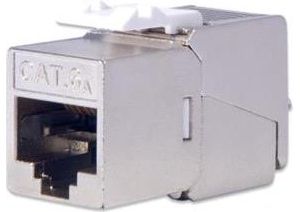

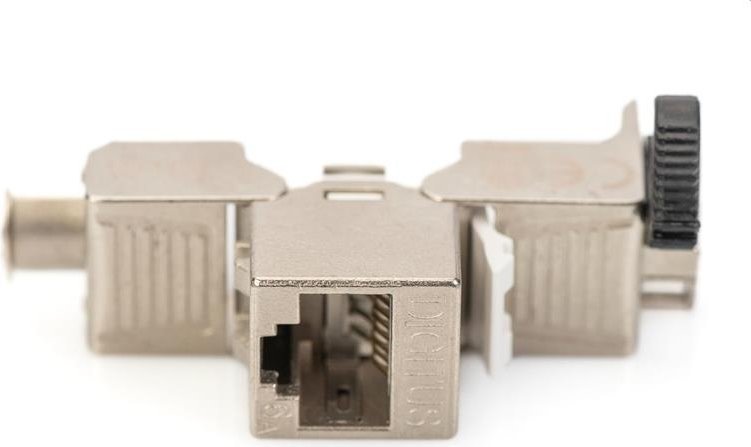

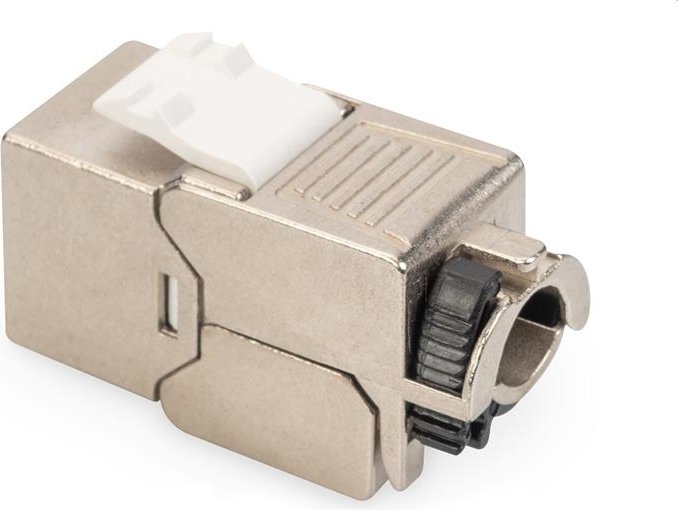

DIGITUS CAT 6A Keystone Jack, shielded, 500 MHz acc.ISO/IEC 60603-7-51,11801 AMD2:2010-04, tool free connection
The Item “DN-93617” from DIGITUS® is a shielded CAT 6A 500 MHz Keystone Module with tool free installation which provides best performance and link quality for your network. The compact design allows the installation of 24 pieces in a row of 483 mm (19") 1U Panels. It is conforming to Category 6A / 10GBase-T Channel, ANSI/EIA/TIA 568C.2.1:2002, ISO/IEC 11801:2002. Due to its compact size, this module suits into design compatible modular wall outlets (face plates).
DIGITUS CAT 6A Keystone Jack, shielded
Material enclosure: Zinc diecast - Nickel plated
Material contacts: Phosphor bronze
Contacts coating: Nickel, gold plated 0.5 µ
Insertion force: max. 30N (acc. to IEC 60603-7-5)
Retention strength: 7.7 kg between jack and plug
Operating Temperature: -10 °C up to +60 °C (ISO/IEC 11801, ANSI/TIA 568 C.2)
Mating cycles: ? 750 (ISO/IEC 11801, IEC 60603-7-5)
Diameter Cu-Conductor: AWG (26/1 ... 22), stranded and solid
Tested with AWG 22 solid installation cable (DIGITIUS® DK-1741-A-VH-X; AWG 22 CAT 7A installation cable)
CAT 6A transmission performance is compliance with the ANSI/TIA 568 C.2 standard
500 MHz acc. ISO/IEC 60603-7-51, 11801 AMD2:2010-04
Suitable for PoE/PoE+
RJ45 jack, for patch panel and modular wall outlet installation
Tool free cable installation via LSA stripes, color coded according to EIA/TIA 568 A & B

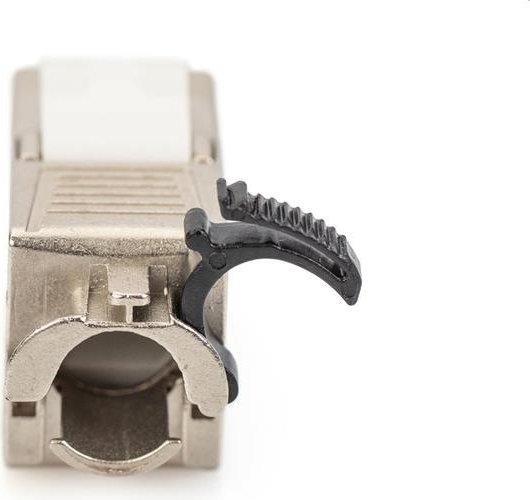

Cable entry: Rear side
Dimensions (HxWxD): 19.5x14.5x35.3 mm
Weight: 19 g
.
