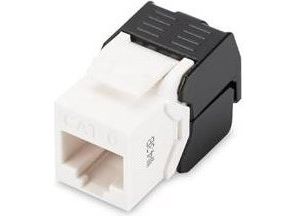

DIGITUS CAT 6 Keystone Jack, unshielded RJ45 to LSA, tool free connection, incl. cable tie
Best performance and link quality for your network.
The Item "DN-93603" from DIGITUS® is an unshielded Keystone Module with tool free installation which provides best
performance and link quality for your network. The compact design allows the installation of 24 pieces in a row of 483 mm
(19") 1U Panels.
l Transmission properties: Category 6
l Area of application: Up to 250 MHz, 1GBase-T
l Norms: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C
l General properties:
l Suitable for 483 mm (19") cabinet mounting
l RJ45 female, 8P8C
l Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B
l Cable fixing with cable tie
l Tool-free installation
l Technical properties:
l RJ45 female material: ABS UL 94V-0
l RJ45 female contact: Tinned phosphor bronze, 0.5 ě gold-plated contact
l LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze
l Conductor plate: FR4, UL 94V-0
l Physical properties:
l Insertion force: 30N max. (IEC 60603-7-5)
l Retention strength: 7.7 kg between jack and plug
l Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
l Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
l Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
l IDC wire size: 22 – 26 AWG solid and stranded conductor
l Insulation resistance: > 500 MOhm
l Contact resistance: < 20 MilliOhm
l Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
