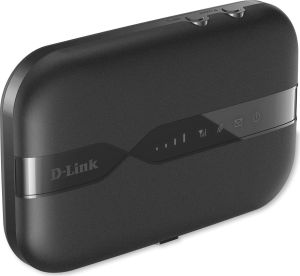

D-Link DWR-932 4G LTE Router
OVERVIEW
Connectivity
· Uses a SIM card to connect to the 4G LTE mobile Internet
· Compatible with 802.11n/g/b devices
· Dual-purpose micro-USB port for easy charging and 4G LTE modem mode
Portability
· Up to 4 hours of battery life in one charge so you stay connected for longer
· Portable design is small enough to fit in your pockets to take with you wherever you go
Security
· WPA/WPA2 Wi-Fi security protocols provide the latest in wireless security
· Built-in firewall blocks unauthorised connections
· Wi-Fi Protected Setup (WPS) for one-touch secure setup with other devices
Compatibility
· 4G LTE modem mode works with MacOS, Windows or Linux-based computers4
SPECIFICATIONS
GENERAL
Frequency Support1
· GSM/GPRS/EDGE: 850/900/1800/1900 MHz
· UMTS/HSDPA/HSUPA: 2100/900 MHz FDD-LTE: Band 1, 3, 7, 8, 20 or TDD-LTE: Band 38
· LTE output power class: 23 dBm (class 3)
Data Throughput2
· Downlink up to 150 Mbps
· Uplink up to 50 Mbps
Security
· WPA/WPA2 PSK Auto (TKIP/AES)
· WPS Push-Button Connection
Advanced Functions
· Built-in firewall
· Built-in NAT
· UPnP
PHYSICAL
Interfaces
· 802.11n/g/b wireless LAN
· 6-pin USIM card interface
· Micro-USB port
Antenna
· DL MIMO (2x2)
· 1 x internal Wi-Fi antenna
Display
· Network type
· Signal strength
· Roaming status
· SMS & SMS status
· Internet connection status
· Carrier
· Battery status
· Wi-Fi & security status
· Wi-Fi clients
Power
· DC 5 V/1 A ± 5%
· 2020 mAh Li-ion battery
Dimensions
· 73 x 73 x 15 mm
Weight
· 77 g
Operating Temperature
· 0 to 40 °C
Storage Temperature
· -20 to 70 °C
Operating Humidity
· 10% to 90% (non-condensing)
Certifications
· CE
· RoHS
1. Supported frequency band is dependent upon regional hardware version.
2. Data rates are theoretical. Data transfer rate depends on network capacity and signal strength.
3. Please check regional mobile operators for 4G LTE/3G mobile Internet availability.
4. Windows 8/7/Vista/XP SP3, Mac OS X (10.6 or above) or Linux Kernel 2.6.x
