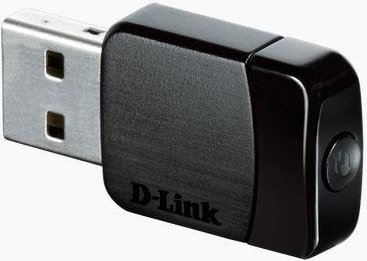

D-Link DWA-171
Wireless AC Dual-Band Nano USB Adapter
OVERVIEW
The DWA-171 Wireless AC Dual-Band Nano USB Adapter lets you experience faster wireless speeds than ever before by delivering powerful Wireless AC technology to your desktop or notebook computer. With its integrated dual-band technology, over the 2.4 GHz (150 Mbps) or 5 GHz (up to 433 Mbps) bands1, you’ll have reduced Wi-Fi interference to maximise throughput for faster video streaming, gaming, and VoIP calls.
SPECIFICATIONS
Interfaces
• USB 2.0 connector2
• Status LED
• WPS button
Security
• Wi-Fi Protected Access (WP & WPA)
• Wi-Fi Protected Setup - PIN & PBC
Standards
• IEEE 802.11ac (Draft)
• IEEE 802.11n
• IEEE 802.11g
• IEEE 802.11b
• IEEE 802.11a
Antenna Type
• Integrated antenna
Operating System
• Windows 8/7/Vista/XP SP3
Compatible Browsers
• Internet Explorer 7 or later
• Mozilla Firefox 3.0 or later
Interface
• Available USB port
Dimensions
• 31.7 x 18.8 x 8 mm
Weight
• 3.9 grams
Power
• Operating Voltage: 5.0 V DC ±10%
• Power Consumption: 220 mA
Temperature
• Operating: 0 to 40 °C
• Storage: -20 to 75 °C
Humidity
• Operating: 10% to 90% (non-condensing)
• Storage: 5% to 95% (non-condensing)
Certifications
• FCC Class B
• IC
• CE
• C-Tick
• Wi-Fi Certified
• Wi-Fi Protected Setup
