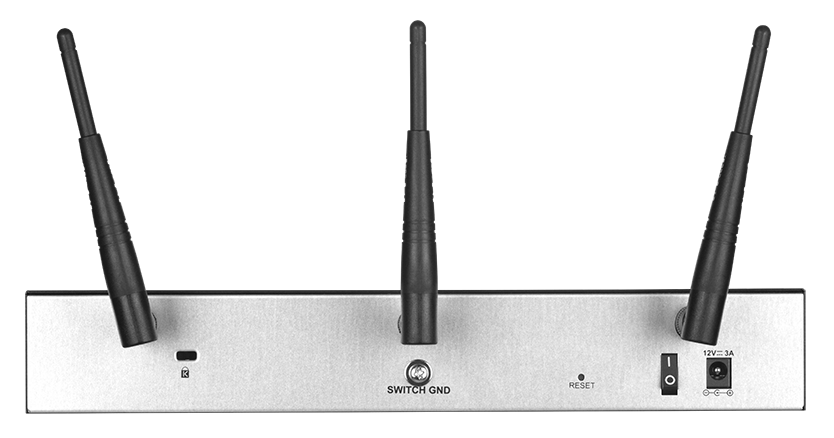

Wireless AC Unified Services VPN Router: DSR-1000AC
PŘEHLED
The DSR-1000AC Wireless AC Unified Services VPN Router provides a secure, high-performance networking solutions to address the growing needs of small and medium businesses. Next generation wireless performance provides wireless speeds of up to 1300 Mbps.
Comprehensive Management Capabilities
The DSR-1000AC includes dual WAN Gigabit Ethernet ports to provide high availability for your WAN or Internet connections. Traffic can be load-balanced across the links with Outbound Load Balancing, increasing the performance and availability of business applications. It supports mobile broadband networks via an optional USB modem1, such as 3G or 4G2 dongles.
Web Authentication Capabilities
Captive Portal allows employees and guest users to be easily authenticated and authorised by accessing a customised landing page. Users can be authenticated by a local database, RADIUS, LDAP, Microsoft Windows Active Directory, NT Domain and POP3 server. A maximum of four servers can be configured at any one time.
Complete and Robust VPN Features
A fully featured virtual private network (VPN) provides your mobile workers and branch offices with a secure link to your network. The DSR-1000AC is capable of Secure Sockets Layer (SSL) VPN tunnels, as well as Generic Routing Encapsulation (GRE) tunnels, empowering your mobile users by providing remote access to a central corporate database. Site-to-site VPN tunnels use IP Security (IPSec) Protocol, Point-to-Point Tunneling Protocol (PPTP), or Layer 2 Tunneling Protocol (L2TP) to facilitate branch office connectivity through encrypted virtual links. OpenVPN allows mobile users to connect to the intranet via encrypted links with their PC, laptops or mobile devices.
Web Content Filtering for HTTP/HTTPs
The DSR-1000AC also provides a web content filtering feature to help administrators monitor, manage and control employees´ Internet usage. Static web content filtering helps to remove malicious objects such as Java applets, ActiveX, and cookies, or to block URLs by keyword.
TECHNICKÁ SPECIFIKACE
General
Ethernet Interface
*2 10/100/1000 Mbps WAN Ports
*4 10/100/1000 Mbps LAN Ports
Wireless Interface
*802.11 ac/a/b/g/n (Concurrent dual band)
*3 Detachable 2 dBi Omni-Directional Antennas
USB 2.0 Port
*2
Console Port
*RJ-45
Performance3
Firewall Throughput2
*950 Mbps
VPN Throughput (3DES)4
*250 Mbps
Concurrent Sessions
*100
New Sessions (per second)
*1000
Firewall Policies
*600
Internet Connection Type
*Static/Dynamic IP
*PPPoE/L2TP/PPTP
*Multiple PPPoE
Firewall System
*Static Route
*Dynamic Route
*RIP v1/v2, OSPF, OSPFv3
*Dynamic DNS
*Inter-VLAN Route
*NAT, PAT
*Web Content Filtering
*Static URL, Keywords, Dynamic WCF (License is required)
*Intrusion Prevention System (IPS)
*Signature Package Included in Firmware
*Authentication
*Internal User Database, Radius, POP3, LDAP, AD, NT Domain
Networking
*DHCP Server/Client
*DHCP Relay
*IEEE 802.11q VLAN
*VLAN (port-based)
*IP Multicast
*IGMP Proxy, IGMP Snooping
*IPv6
*Route Failover
*Outbound Load Balancing
*3G/4G5 Redundancy via Optional USB Modem1
Wireless
*Multiple Service Set Identifier (SSID)
*Service Set Identifier (SSID) to VLAN Mapping
*Standard
*802.11 ac/a/b/g/n
*Wireless Security
*Wired Equivalent Privacy (WEP)
*Wi-Fi Protect Setup (WPS)
*Wi-Fi Protected Access - Personal (WPA-PSK)
*Wi-Fi Protected Access - Enterprise (WPA-EAP)
*Wi-Fi Protected Access version 2 - Personal (WPA-PSK)
*Wi-Fi Protected Access version 2 - Enterprise (WPA-EAP)
Virtual Private Network (VPN)
*VPN Tunnels
*155
*IPSec Tunnels
*70
*SSL VPN Tunnels
*20
*PPTP/L2TP Tunnels
*25
*GRE
*20
*OpenVPN Tunnels
*20
*Encryption Methods
*DES, 3DES, AES, Twofish, Blowfish, CAST-128, NULL
*SSL Encryption Methods
*RC4-128, 3DES, AES
*IPSec/PPTP/L2TP/OpenVPN Server
*IPSec NAT Traversal
*Dead Peer Detection
*IP Encapsulating Security Payload (ESP)
*IP Authentication Header (AH)
*VPN Tunnel Keep Alive
*Hub and Spoke
Bandwidth Management
*Maximum Bandwidth Control
*Priority Bandwidth Control
*Port-based QoS
*3 Classes
System Management
*Web-based User Interface
*Command Line
*SNMP v1, v2c, v3
Physical & Environment
Power Supply
*External Power Supply Unit
*DC 12 V/3 A
Max. Power Consumption
*23.1 W
Dimensions (L x W x H)
*180 x 280 x 44 mm
Operation Temperature
*0 to 40 °C
Storage Temperature
* -20 to 70 °C
Operation Humidity
*5% to 95% non-condensing
EMI/EMC
*FCC Class B, CE Class B, RCM, IC, VCCI
Safety
*cUL, LVD (EN60950-1)
3rd Party Certification
*IPv6 Ready, Wi-Fi, VPNC AES Interop, VPNC Basic Interop
MTBF
*360,000 hours
