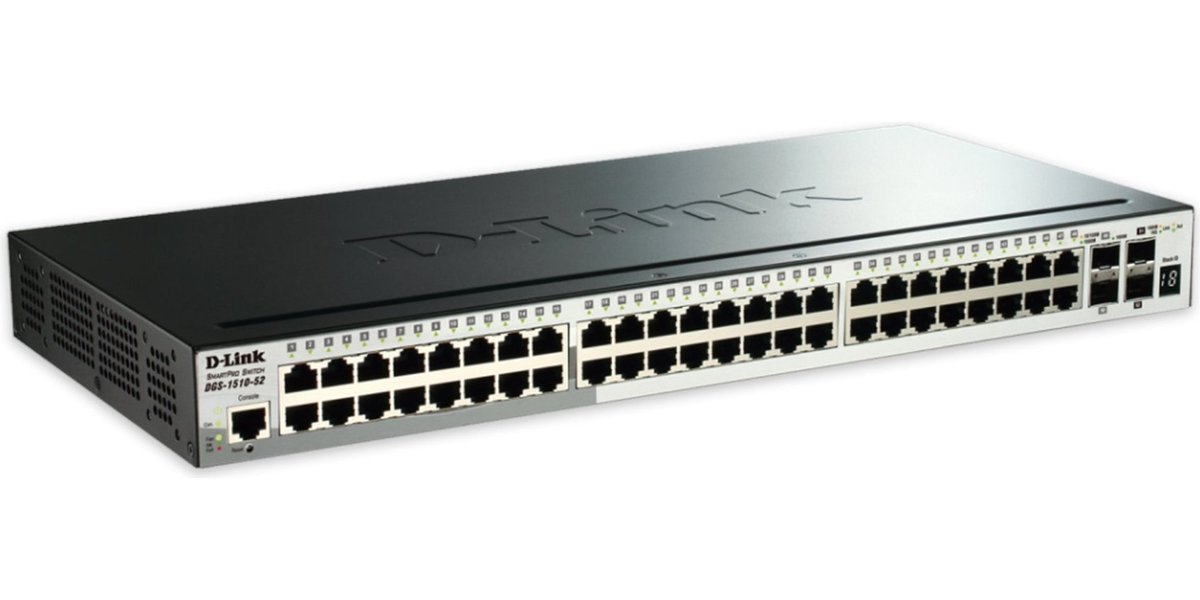

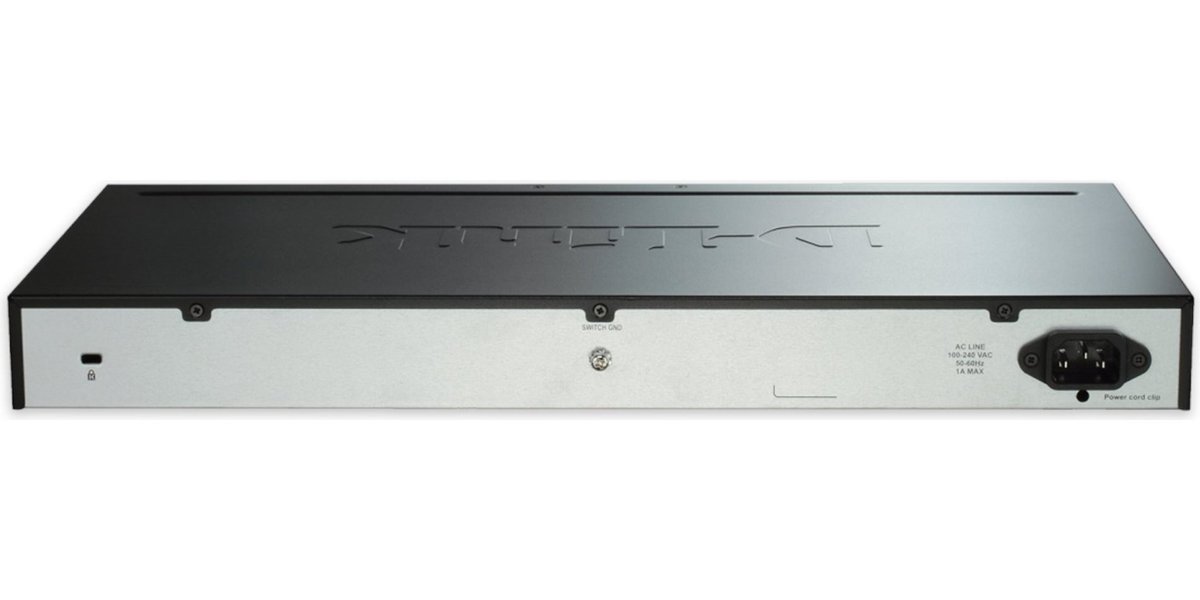

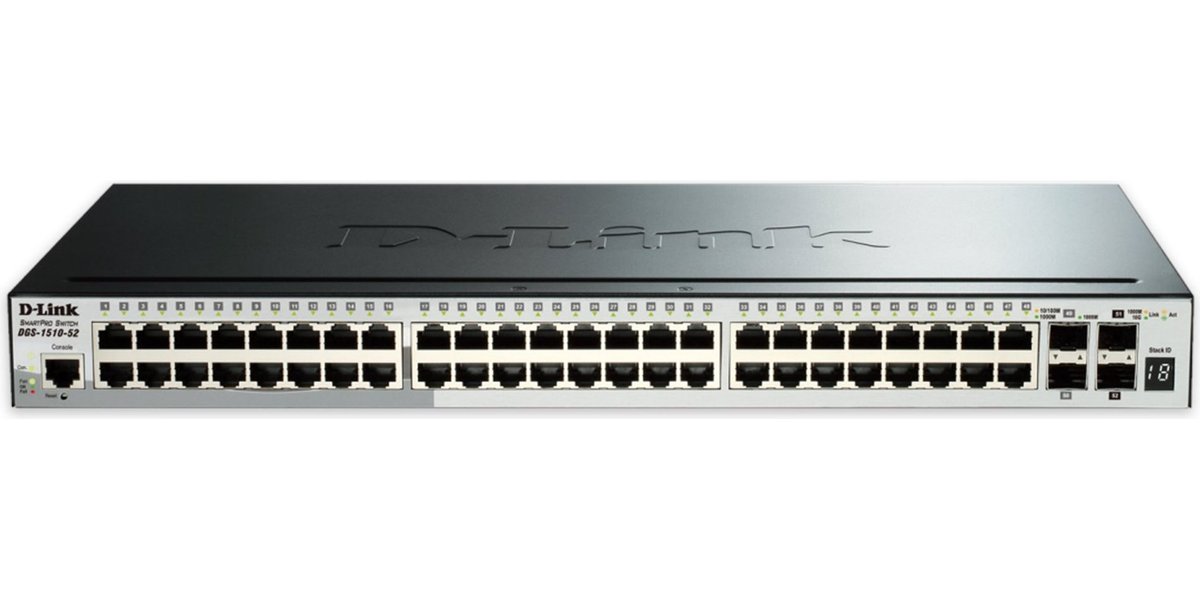

D-Link DGS-1510-52X Switch 48xGbit + 4xSFP+
OVERVIEW
The DGS-1510 Series is D-Link’s latest generation of SmartPro switches with 10G port connectivity, making them ideal for deployment in SME/SMB core environments. The DGS-1510 Series provides a reliable, scalable, and modular interconnection between core switches and edge switches with rich capabilities and simplified flexibility. Available in 16, 24 and 48 10/100/1000 Mbps port models, these switches also include four optical ports - including 2 Gigabit SFP and 2 10G SFP+ ports. The 24 and 48 port versions are also available with 4 10G SFP+ ports instead of the 2 Gigabit plus 2 10G configuration.
SPECIFICATIONS
GENERAL
Port Standards & Functions
* IEEE 802.3 10BASE-T Ethernet
* IEEE 802.3u 100BASE-TX Fast Ethernet
* IEEE 802.3ab 1000BASE-T Gigabit Ethernet
* 802.3ae 10 GbE,
* IEEE 802.3x Flow Control for Full-Duplex Mode,
* Auto-negotiation
Number of Ports
* 48 10/100/1000 Mbps, 4 10G SFP+
Network Cables
* UTP Cat. 5, Cat. 5e (100 m max.) EIA/TIA-568 100-ohm STP (100 m max.)
Full/Half Duplex
* Full/half duplex for 10/100 Mbps and Gigabit speed
Media Interface Exchange
* Auto or configurable MDI/MDIX
PERFORMANCE
Switching Capacity
* 176 Gbps
Transmission Method
* Store-and-forward
MAC Address Table
* 16,000 entries per device
MAC Address Update
* Up to 512 static MAC entries,
* Enable/disable auto-learning of MAC addresses
Maximum 64 bytes Packet Forwarding Rate
* 130.95 Mpps
Packet Buffer Memory
* 3 MB per device
PHYSICAL & ENVIRONMENTAL
AC Input
* 100 to 240 VAC 50/60 Hz internal universal power supply
Maximum Power Consumption
* 44.2 W
Standby Power Consumption
* 28.6W/100V 28.9W/240V
Smart Fan Quantity
* 2
Acoustics
* 45.8 dB(A)
Heat Dissipation
* 138.8 BTU/hr
Operation Temperature
* -5 to 50 °C
Storage Temperature
* -20 to 70°C
Operation Humidity
* 0% to 95% non-condensing
Storage Humidity
* 0% to 95% non-condensing
Dimensions
- 440 x 250 x 44 mm
- 19” standard rack mounting width, 1U height
Weight
* 2.40 kg
Diagnostic LEDs
* Power/Stacking ID/Fan (per device),
* Link/Activity/Speed (per 10/100/1000 Mbps port),
* Link/Activity/Speed (per Gigabit SFP port),
* Link/Activity/Speed (per 10G SFP+ port)
Certifications
* CE, FCC, C-Tick, VCCI, BSMI, CCC
* Safety cUL, CB
SOFTWARE FEATURES
Stackability
* Virtual Stacking Support
- D-Link Single IP Management
- Up to 32 devices per virtual stack
* Physical Stacking
- Supports Duplex Chain/Ring topology
- Up to 40G stacking bandwidth full duplex
- Up to 6 units per stack
L2 Features
* MAC Address Table: 16K
* Flow Control
- 802.3x Flow Control
- HOL Blocking Prevention
* Jumbo Frame up to 9000 Bytes
* IGMP Snooping
- IGMP v1/v2 Snooping
- IGMP v3 awareness
- Supports 512 IGMP groups
- Supports 128 static multicast addresses
- IGMP per VLAN
- Supports IGMP Snooping Querier
- Host-based IGMP Snooping Fast Leave
* MLD Snooping
- Supports MLD v1/v2 awareness
- Supports 512 groups
- Supports 128 Static Multicast Addresses
- Per VLAN MLD Snooping
- Host-based MLD Fast Leave
- MLD Snooping Querier
* Spanning Tree Protocol
- 802.1D STP
- 802.1w RSTP
- 802.1s MSTP
* Loopback Detection
* 802.3ad Link Aggregation
- Max. 32 groups per device/8 ports per group
* Port Mirroring
- Support 4 mirroring groups
- One-to-One, Many-to-One
- Supports Mirroring for Tx/Rx/Both
* Multicast Filtering
- Forwards all unregistered groups
- Filters all unregistered groups
* LLDP, LLDP-MED
VLAN
* 802.1Q Tagged VLAN
* 4K VLAN Groups
* Configurable VID: 0~4094
* GVRP
* Asymmetric VLAN
* Auto Voice VLAN
* Auto Surveillance VLAN
Quality of Service (QoS)
* 802.1p Quality of Service
* Queue Handling
- Strict Priority Queue (SPQ)
- Weighted Round Robin (WRR)
- Deficit Round Robin (DRR)
- SPQ + WRR
* 8 queues per port
* Bandwidth Control
- Port-based (Ingress/Egress, min. granularity for 10/100/1000 BASE-T ports is 64 Kb/s)
* CoS based on
- 802.1p priority
- VLAN
- MAC address
- Ether type
- IP address
- DSCP
- Protocol type
- TCP/UDP port number
- DSCP of IPv6 Traffic Class
- IPv6 flow label
L3 Features
* ARP
- 256 Static ARP
- Supports Gratuitous ARP
* IPv6 Neighbor Discovery (ND)
* 8 IP Interfaces
* Default Routing
* Static Routing
- 64 IPv4 Static Route Entries
- 32 IPv6 Static Route Entries
Access Control List (ACL)
* ACL based on
- 802.1p priority
- VLAN
- MAC address
- Ether type
- IP address
- DSCP
- Protocol type
- TCP/UDP port number
- DSCP of IPv6 Traffic Class
- IPv6 flow label
* ACL Actions
- Permit
- Deny
* Max. 256 access list
* Max. 768 rules
* Single or multiple ports (each rule)
* Time-based ACL
* ACL Statistics
Security
* Port Security
- Supports up to 128 MAC addresses per port
* Broadcast/Multicast/Unicast Storm Control
* Dynamic ARP Inspection
* Static MAC
* D-Link Safeguard Engine
* DHCP Server Screening
* ARP Spoofing Prevention
- Max. 64 entries
* SSH
- Supports v2
- Supports IPv4/IPv6
* BPDU Attack Protection
* SSL
- Supports v1/v2/v3
- Supports IPv4/IPv6
* Traffic Segmentation
* IP-MAC-Port Binding
- DHCP snooping
- IP Source Guard
- Dynamic ARP inspection
- DHCPv6 Guard
- RA Guard
- IPv6 Snooping
- IPv6 Source Guard
* DoS Attack Prevention
AAA
* Compound Authentication
* 802.1X Port and MAC-based Authentication
- Supports RADIUS and Local Server
- Supports EAP, OTP, TLS, TTLS, PEAP
* Web-based Access Control (WAC)
- Port-based Access Control
- Host-based Access Control
- Dynamic VLAN Assignment
* Guest VLAN
* MAC-based Access Control (MAC)
- Port-based Access Control
- Host-based Access Control
- Dynamic VLAN Assignment
* Japan Web-based Access Control (JWAC)
- Port-based Access Control
- Host-based Access Control
- Dynamic VLAN Assignment
OAM
* Cable Diagnostics
* Factory Reset
Management
* CLI
* Telnet Server
* TFTP Client
* IPv6 Neighbor Discovery
* Configurable MDI/MDIX
* SNMP
- Supports v1, v2c, v3
* SNMP Trap
* System Log
- Max. 10,000 log entries
* DHCP Client
* D-Link Network Assistant support
* SNTP
* ICMPv6
* IPv4/v6 Dual Stack
* DHCP Auto Configuration
* RMON v1
* Debug Command
* Dual Image
* Web based GUI
D-Link Green 3.0 Technology
* Power Saving by:
- Link Status
- LED or Port Shutoff
* System Hibernation mode
* Time-based PoE (PoE model only)
OPTIONAL SFP TRANSCEIVERS
* DEM-310GT 1000BASE-LX, single-mode, 10 km
* DEM-311GT 1000BASE-SX, multi-mode, 550 m
* DGS-712 1000BASE-T to SFP transceiver
OPTIONAL SFP+ TRANSCEIVERS
* DEM-431XT-DD 10GBASE-SR SFP+ Transceiver (with DDM), 80m: OM1 & OM2 MMF, 300m: OM3 MMF
* DEM-432XT-DD 10GBASE-LR SFP+ Transceiver (with DDM), 10km
* DEM-435XT-DD 10GBASE-LRM SFP+ Transceiver (with DDM), 220m
OPTIONAL SFP+ DIRECT ATTACH STACKING CABLES
* DEM-CB100S 10-GbE SFP+ 1 m Direct Attach Cable
* DEM-CB300S 10-GbE SFP+ 3 m Direct Attach Cable
* DEM-CB700S 10-GbE SFP+ 7m Direct Attach Cable
