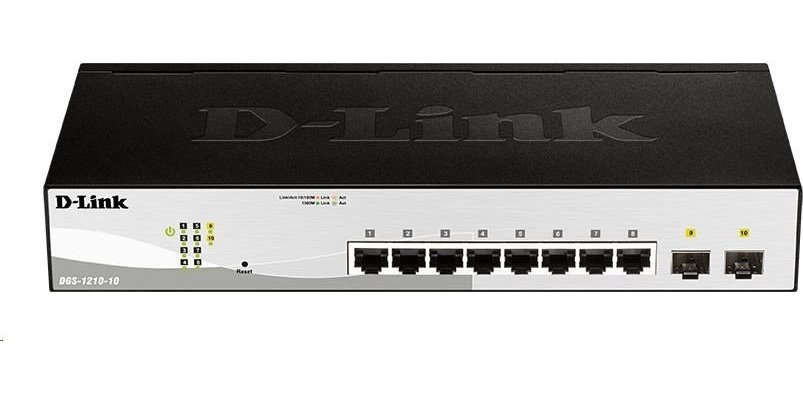

D-Link DGS-1210-10 10port Gbit Smart Sw,2xSFP
OVERVIEW
D-Link’s DGS-1210 Series Gigabit Smart+ Switch with Fibre Uplinks integrates advanced management as well as security functions that provide performance and scalability. Management options for the switch include SNMP, Web Management, D-Link Network Assistant Utility,
and compact command lines. The DGS-1210 Series uses Auto Voice VLAN, ensuring bandwidth is prioritised for a smoother voice performance.
SPECIFICATIONS
INTERFACE
Number of 10/100/1000BASE-TX ports
* 8 ports
Number of SFP ports
* 2 ports
PERFORMANCE
Switch Capacity
* 20 Gbps
64-Byte Packet Forwarding Rate
* 14.88 Mpps
MAC Address Table Size
* 16K
Packet Buffer
* 1.5 MB per device
Jumbo Frame
* Up to 9,216 Bytes
PHYSICAL & ENVIRONMENTAL
Power Consumption (Standby/Maximum)
* 9.4W / 13.59W

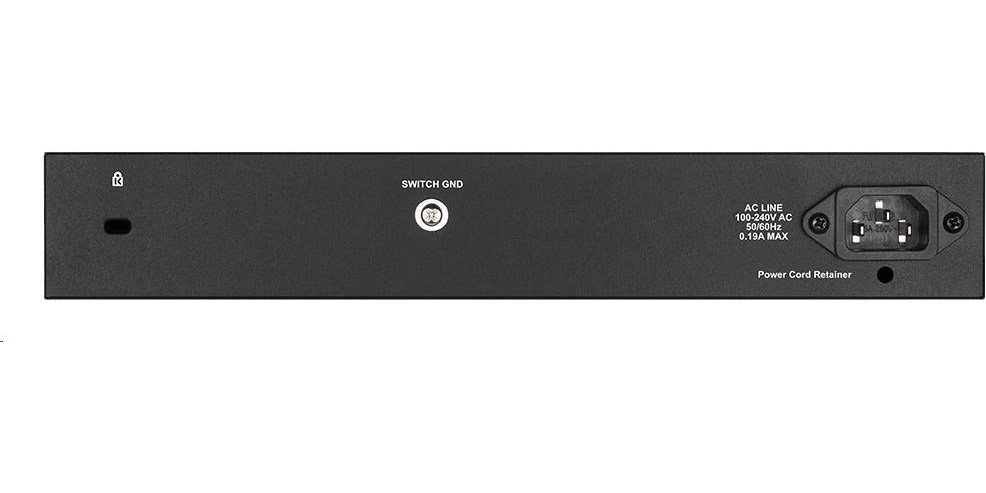

Power Input
* 10 to 240 VAC, 50/60HZ internal universal power supply
Dimensions (W x D x H)
* 280 x 168 x 44 mm
Weight
* 1.54 kg
Ventilation
* faneless
Heat Dissipation
* 46.37 BTU per hour
Temperature
* Operating: -5° to 50°C
* Storage: -20° to 70°C
Humidity
* Operating: 0% ~ 95% non-condensing
* Storage: 0% ~ 95% non-condensing
Certification
* CE Class A, VCCI Class A, FCC Class A, cUL, CE (LVD), BSMI, CCC, C-Tick
SOFTWARE FEATURE
L2 Features
* MAC Address Table
- 16K entries
* IGMP Snooping
- IGMP v1/v2 Snooping
- Supports 256 IGMP groups
- Supports at least 64 static multicast addresses
- IGMP per VLAN
- Supports IGMP Snooping Querier
* Loopback Detection
* 802.3ad Link Aggregation:
- Maximum of 5 groups/8 ports per group
* LLDP
* LLDP-MED
* Jumbo Frame
- Up to 9,216 bytes1
* Spanning Tree Protocol
- 802.1D STP
- 802.1w RSTP
* Flow Control
- 802.3x Flow Control
- HOL Blocking Prevention
* Port Mirroring
- One-to-One
- Many-to-One
- Supports Mirroring for Tx/Rx/Both
* Multicast Filtering
- Forwards all unregistered groups
- Filters all unregistered groups
* Configurable MDI/MDIX
- MLD snooping v1/v2 (256 groups)
VLAN
* 802.1Q
* VLAN Group
- Max. 256 static VLAN groups
* Configurable VID from 1 - 4094
* Asymmetric VLAN
* Auto Voice VLAN
- Max. 10 user-defined OUI
- Max. 8 default OUI
* Auto Surveillance VLAN
Quality of Service (QoS)
* 802.1p Quality of Service
* 8 queues per port2
* Queue Handling
- Strict
- Weighted Round Robin (WRR)
* Bandwidth Control
- Port-based (Ingress/Egress, min granularity 10/100/1000 is 64 Kbps)
* QoS based on:
- 802.1p Priority Queues
- DSCP
- ToS
- IPv6 Traffic Class
- TCP/UDP port
L3 Features
* IP Interface
- Supports 1 interface
* IPv6 Neighbor Discovery (ND)
Access Control List (ACL)
* Max. 50 access list
* Max. 768 rules shared by IPv4, MAC and IPv63
* Each rule can only be associated with a single port
* ACL based on
- 802.1p priority
- VLAN
- MAC address
* Ether type
* IP address
* DSCP
* Protocol type
* TCP/UDP port number
* IPv6 Traffic Class
Security
* Broadcast/Multicast/Unicast Storm Control
* D-Link Safeguard Engine
* DHCP Server Screening
* IP-MAC-Port Binding (Smart Binding)
- Supports 512 address binding entries
- ARP Inspection
- ARP + IP Inspection
- Supports DHCP Snooping
* 802.1X Port-based Access Control
* ARP Spoofing Prevention
- Max. 64 entries
* Traffic Segmentation
* SSH v2
* SSL
- Supports v1/v2/v3
* Port Security
- Supports up to 64 MAC addresses per port
* Duplicate address detection
AAA
* 802.1X Authentication
- Supports local/RADIUS database
- Supports port-based access control
- Supports EAP, OTP, TLS, TTLS, PEAP
* IPv6 RADIUS Server
* Support MD5 authentication
MIB/RFC Standards
* RFC 783 TFTP
* RFC 951 BootP/DHCP Client
* RFC 1157 SNMP v1, v2, v3
* RFC 1213 MIB II
* RFC 1215 MIB Traps Convention
* RFC 1350 TFTP
* RFC 1493 Bridge MIB
* RFC 1769 SNTP
* RFC 1542 BootP/DHCP Client
* RFC 1901 SNMP v1, v2, v3
* RFC 1907 SNMP v2 MIB
* RFC 1908 SNMP v1, v2, v3
* RFC 2131 BootP/DHCP Client
* RFC 2138 RADIUS Authentication
* RFC 2139 RADIUS Authentication
* RFC 2233 Interface Group MIB
* RFC-2246 SSL
* RFC 2475
* RFC 2570 SNMP v1, v2, v3
* RFC 2575 SNMP v1, v2, v3
* RFC 2598 CoS
* RFC 2618 RADIUS Authentication
* RFC 2819 RMON v1
* RFC 2865 RADIUS Authentication
* RFC 3164 System Log
* RFC 3195 System Log
* RFC 3411-17 SNMP
* D-Link Private MIB
* LLDP MIB
* Zone Defense MIB
* 2233 Interface Group MIB
OAM
* Cable Diagnostics
* Factory Reset
Management
* Web-based GUI
* D-Link Network Assistant Utility
* Compact CLI
* Telnet Server
* TFTP Client
* Configurable MDI/MDIX
- SNMP
* Supports v1/v2c/v3
* SNMP Trap
* Backup/Upgrade firmware
* Smart Wizard
* Upload/Download Configuration file
* System Log
- Max. 500 log entries
* BootP/DHCP Client
* SNTP
* ICMP v6
* IPv4/v6 Dual Stack
* DHCP Auto Configuration
* Time Setting
- SNTP
* RMONv1
* Trusted Host
Green V3.0 Technology
* Power Saving by
- Link Status
- Time-based PoE: PoE ports can be turned on/off by port or system through schedule
- LED Shutoff
- System Hibernation
- Port Shutoff
