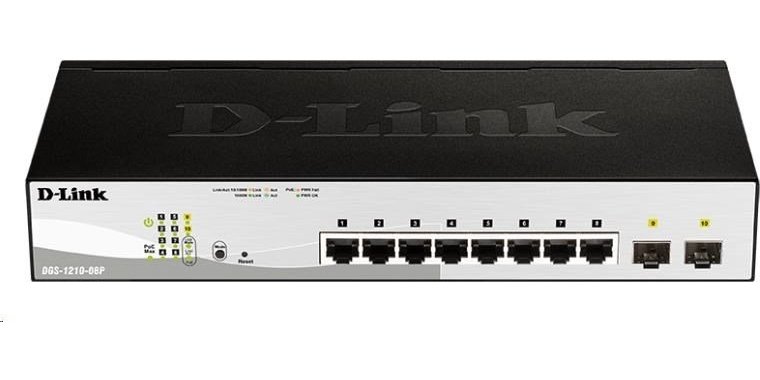

8-Port Gigabit PoE Smart Switch with 2 SFP ports (8 x PoE ports, fanless)
OVERVIEW
The DGS-1210 Series Smart Switches is the latest generation of D-Link Smart Switches featuring D-Link Green 3.0 technology. The series offers a high level of energy saving and efficiency, as it also complies with the IEEE 802.3az Energy Efficient Ethernet standard. Support for IPv6 management and configurations ensures your network remains protected after the upgrade from IPv4 to IPv61. By offering multiple management options, the Smart Switches allows quick deployment, infrastructure expansion, and seamless function upgrades. Built for small and medium-sized businesses, the DGS-1210 Series Smart Switches provide functionality, security, and manageability for a fraction of the standard cost of ownership.
The DGS-1210 Series Smart Switches includes a range of affordable PoE-enable switches for businesses looking to power VoIP phones, wireless access points or network cameras. The DGS-1210-08P1 is a 8-port Smart PoE Switch that provides 8 PoE-enabled ports that can supply power of up to 15.4 W each.
SPECIFICATIONS
Number of 10/100/1000BASE-TX ports
• 8 ports
Number of SFP ports
• DGS-1210-08P - 2 ports
Switch Capacity
• 20 Gbps
64-Byte Packet Forwarding Rate
• 14.9 Mpps
MAC Address Table Size
• 16K
Packet Buffer
• 6 MB per device
Jumbo Frame
• Up to 13,000 Bytes
Diagnostic LED Indicators
• Power (per device)
• Link/Activity/Speed/PoE (per 10/100/1000 Mbps port)
• Link/Activity/Speed (per SFP port)
• Button to switch LED display mode between PoE and Link/ActivityPower (per device)
Power Input
• 10 to 240 VAC, 50/60HZ internal universal power supply
Dimensions (W x D x H)
• 280 x 180 x 44 mm
Size
• 19-inch standard rackmounting width or with rackmountable brackets
• 1U Height
Ventilation
• Fanless
Heat Dissipation
• DGS-1210-08P - BTU per hour
Temperature
• Operating: -5° to 50°C
• Storage: -20° to 70°C
Humidity
• Operating: 0% ~ 95% non-condensing
• Storage: 0% ~ 95% non-condensing
Certification
• CE Class A
Safety
• cUL, LVD
