| Popis |

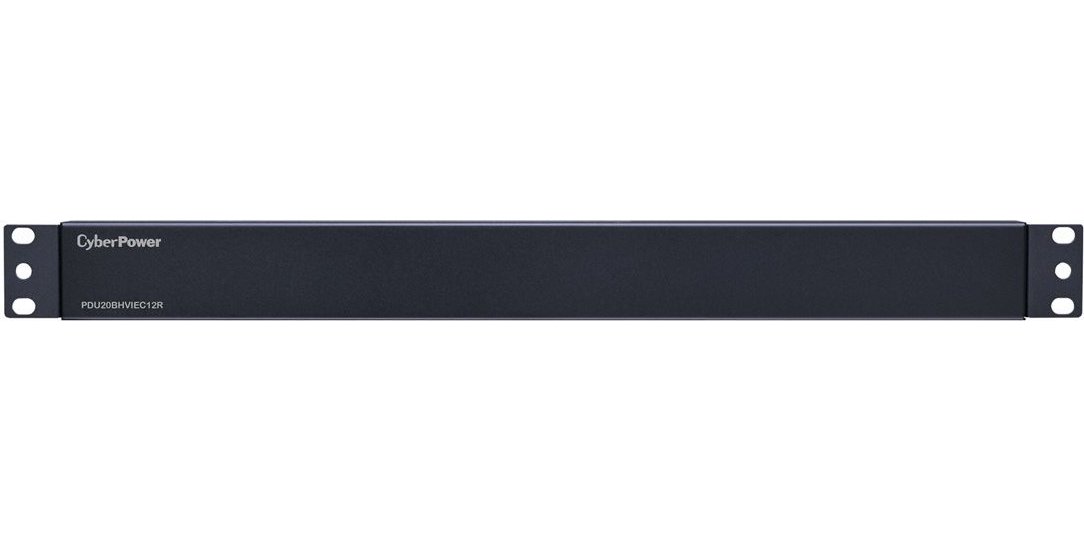

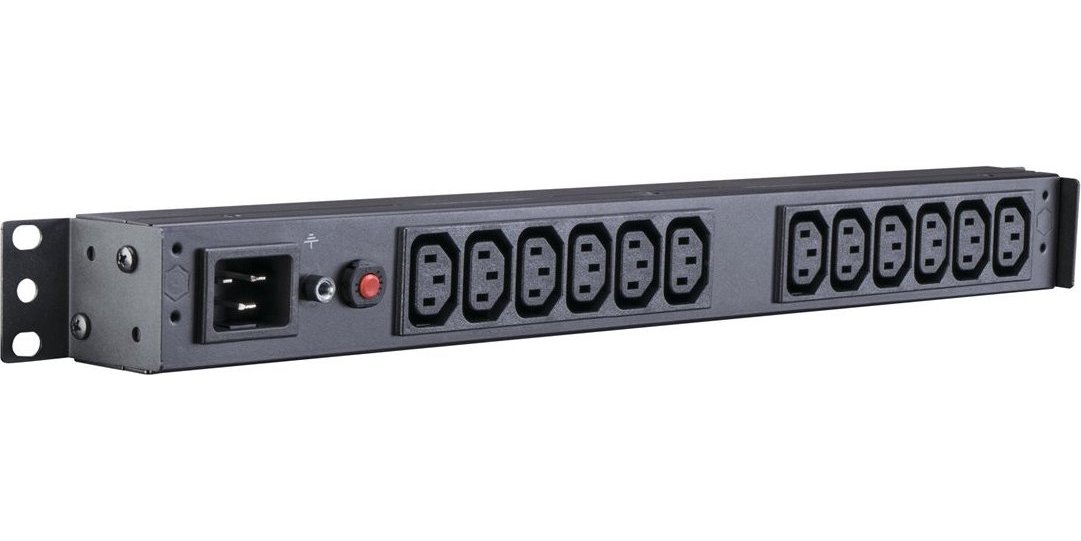

| The CyberPower 12-outlet rack mount basic power distribution unit (PDU20BHVIEC12R) provides 208V/230V 20A output. It distributes power to 12 IEC-320 C13 receptacles from a single IEC-320 C20 plug, with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. |
| Kľúčové predajné body |
- 12 IEC-320 C13 output receptacles
- Single IEC-320 C20 plug
- 20-amp electrical capacity with circuit breaker
- 1U rack mount
|
| Produkt: |
| Názov produktu : |
CYBERPOWER PDU20BHVIEC12R CyberPower PDU20BHVIEC12R ;1U ; 16A ; Basic; 12xC13 |
| Popis: |
CyberPower Basic Series PDU20BHVIEC12R - Power distribution unit (rack-mountable) - AC 200/230 V - input: IEC 60320 C20 - output connectors: 12 (IEC 60320 C13) - 1U |
| EAN: |
4712364144387 |
| Záruka výrobcu: |
doživotná záruka
|
| General |
| Device Type: |
Power distribution unit - rack-mountable
|
| Height (Rack Units): |
1U
|
| Power Device |
| Input Voltage: |
AC 200/230 V
|
| Input Voltage Range: |
AC 200 - 230 V
|
| Frequency Required: |
50/60 Hz
|
| Input Connectors: |
1 x power IEC 60320 C20
|
| Power Output Connectors Details: |
12 x power IEC 60320 C13
|
| Output Voltage: |
AC 200/230 V
|
| Max Electric Current: |
20 A
|
| Circuit Protection: |
Circuit breaker
|
| Miscellaneous |
| Cables Included: |
Power cable 3 m
|
| Rack Mounting Kit: |
Included
|
| Features: |
Rugged, overload protection, vertical orientation
|
| Compliant Standards: |
CSA C22.2, RoHS, ETL, UL 60950-1
|
| Manufacturer Warranty |
| Service & Support: |
Limited warranty - 2 years
|
| Environmental Parameters |
| Min Operating Temperature: |
0 °C
|
| Max Operating Temperature: |
40 °C
|
| Humidity Range Operating: |
0 - 95%
|
| Dimensions & Weight |
| Width: |
44.5 cm
|
| Depth: |
3.8 cm
|
| Height: |
4.5 cm
|
| Weight: |
0.9 kg
|
| Dimensions & Weight (Shipping) |
| Shipping Width: |
53 cm
|
| Shipping Depth: |
33 cm
|
| Shipping Height: |
23.3 cm
|
| Shipping Weight: |
2.4 kg
|
