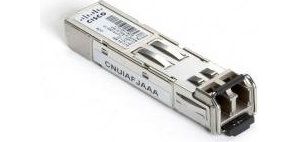

Cisco GLC-SX-MMD=, SFP Transceiver, GbE SX, MMF, 1km

1000BASE-SX SFP transceiver module for MMF, 850-nm wavelength, extended operating temperature range and DOM support, dual LC/PC connector
1000BASE-SX SFP for Multimode Fiber Only
The 1000BASE-SX SFP, compatible with the IEEE 802.3z 1000BASE-SX standard, operates on legacy 50 µm multimode fiber links up to 550 m and on 62.5 µm Fiber Distributed Data Interface (FDDI)-grade multimode fibers up to 220 m. It can support up to 1km over laser-optimized 50 µm multimode fiber cable.
Specifications
Part Number
· GLC-SX-MMD
Device Type
· Cisco SFP
Package
· SFP
Data Rate
· 1.25/1.0625Gbps
Wavelength
· 850nm
Distance/Power Budget
· 550m
Optical Components
· LD: VCSEL
· PD: PIN
Output Power
· -9~-4dBm
Receiver Sensitivity
· -17dBm
Power Supply Voltage
· 3.3V
Connector
· Dual LC
Fiber Type
· MMF
Operating Temperature
· -10~80 °C
DDMI
· With
Application
· Gigabit Ethernet
Compatiblity
· 100% Cisco Compatible
