OVERVIEW

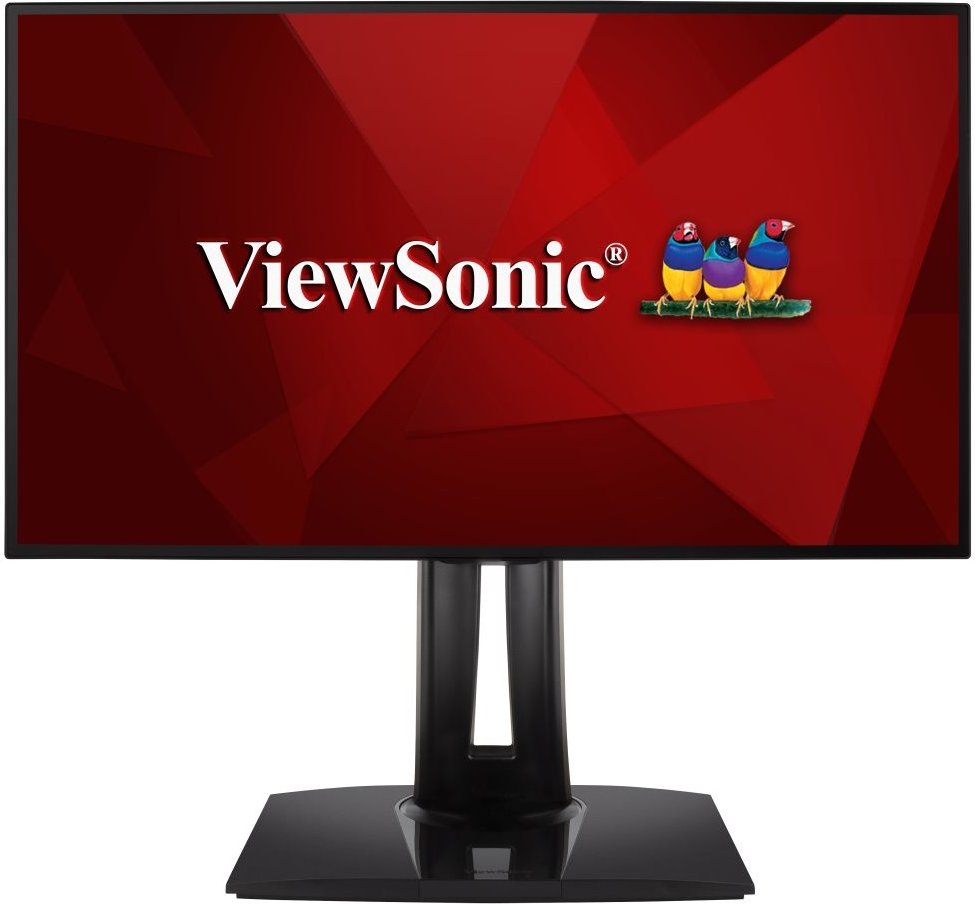

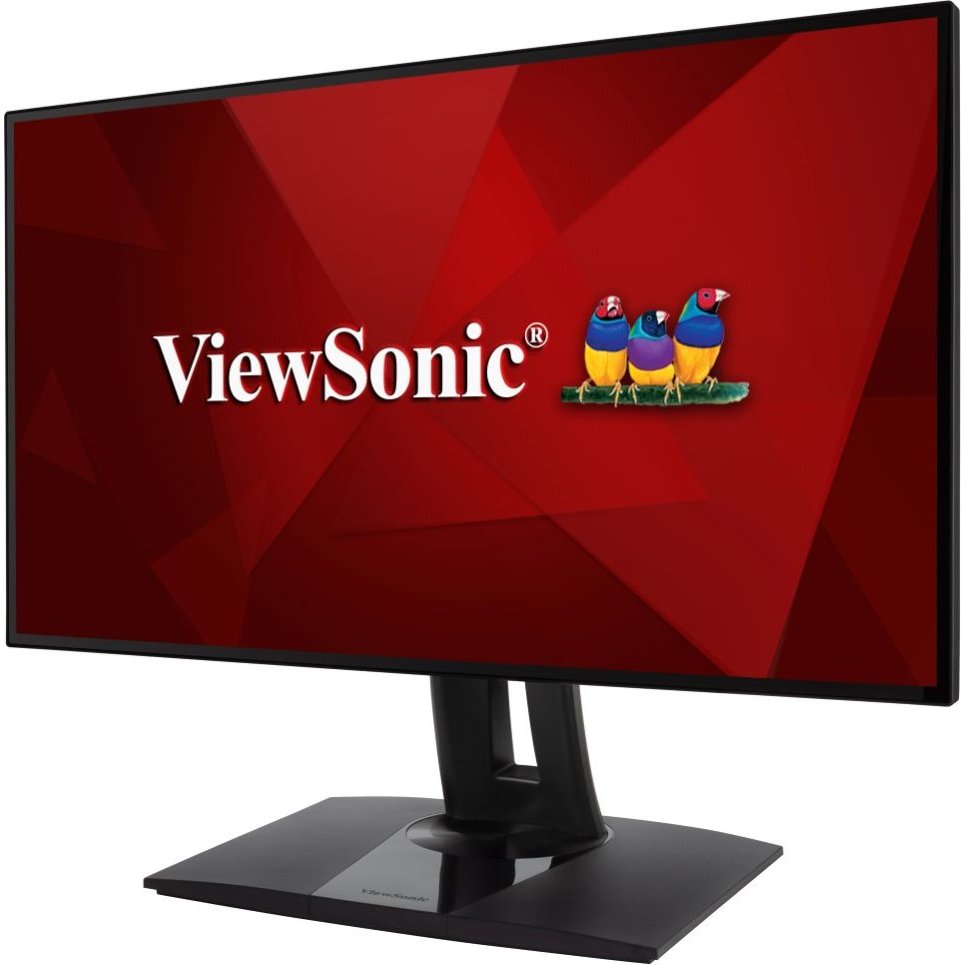

The ViewSonic® VP2458 is a professional-grade 24” (23.8” viewable) Full HD monitor designed for enterprise professionals. The monitor´s SuperClear® IPS panel technology offers 100% sRGB colour coverage and Delta E<2 colour accuracy to deliver precise colour performance and wide-angle viewing, while a 4-sided frameless design provides a seamless viewing experience for multi-monitor setups. What’s more, with advanced ergonomic tilt, swivel, pivot, and height adjust features, this monitor provides a comfortable viewing experience and vivid images no matter your vantage point. Extensive connectivity options include VGA, HDMI, and DisplayPort so that you can connect to a variety of HD and analog devices – today and tomorrow. In addition, Flicker-Free technology and a Blue Light Filter help to minimise eyestrain from extended viewing periods.
SPECIFICATIONS
LCD PANEL
Monitor Size : 24" W (23.8" Viewable)
Panel Technology : IPS Technology TFT LCD
Resolution : Full HD 1920 x 1080
Display Area : 527 mm (H) x 296.5 mm (V)
Aspect Ratio : 16:9
Brightness : 250 cd/m2 (Typ)
Contrast Ratio : 1000:1 (Typ)
Dynamic Contrast Ratio : 20,000,000:1
Viewing Angles : 178 degrees / 178 degrees (Typ)
Colour Gamut : NTSC: 72.57% Coverage / 75.9% Size (Typ)
sRGB: 100% Coverage / 107% Size (Typ)
REC709: 100% Coverage / 107% Size (Typ)
SMPTE-C:100% Coverage / 115.6% Size (Typ)
EBU: 99.28% Coverage / 105.8 Size (Typ)
Pixel Size : 0.275 mm (H) x 0.275 mm (V)
INPUT SIGNAL
Frequency : VGA: Fh = 55 ~90KHz ; Fv = 48 ~ 75Hz
DisplayPort/HDMI: Fh = 55 ~90KHz ; Fv = 48 ~ 75Hz
Sync : VGA: Separate Sync, Composite Sync, Sync on Green
DisplayPort: PCI-E
HDMI: TMDS
COMPATIBILITY
PC : PC Compatibles (1920x1080 HDMI/DisplayPort Non-Interlaced)
Mac® : Power Mac (up to 1920x1080 HDMI/DisplayPort)

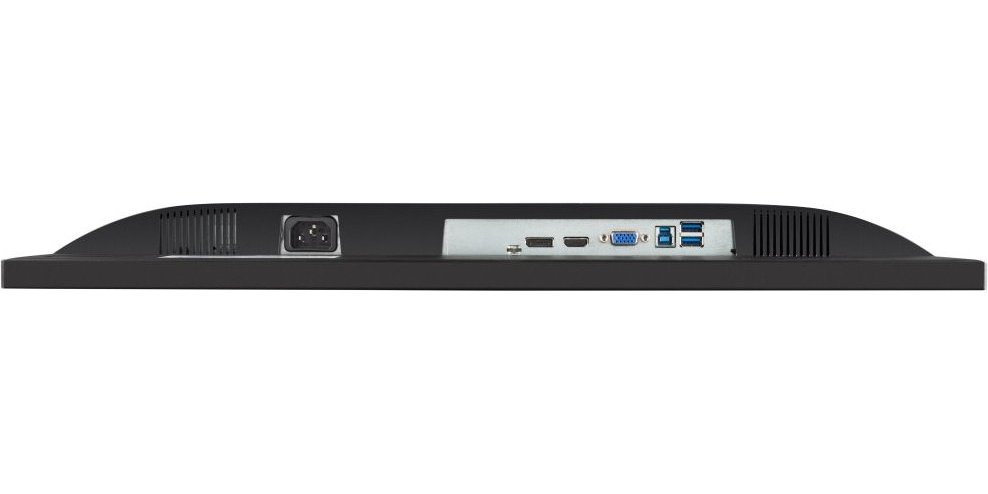

CONNECTOR
Input : VGA x 1
DisplayPort 1.2a x 1
HDMI 1.4 x 1
USB
Upstream : Type B x 1
Downstream : Type A x 2
POWER
Power : 3-pin plug (CEE22) x 1
Voltage : AC 100-240V (Universal); 50/60Hz
Consumption : 17.5 W
Optimise : 14.0 W
Conserve : 11.5 W
MODEL COLOUR
Black

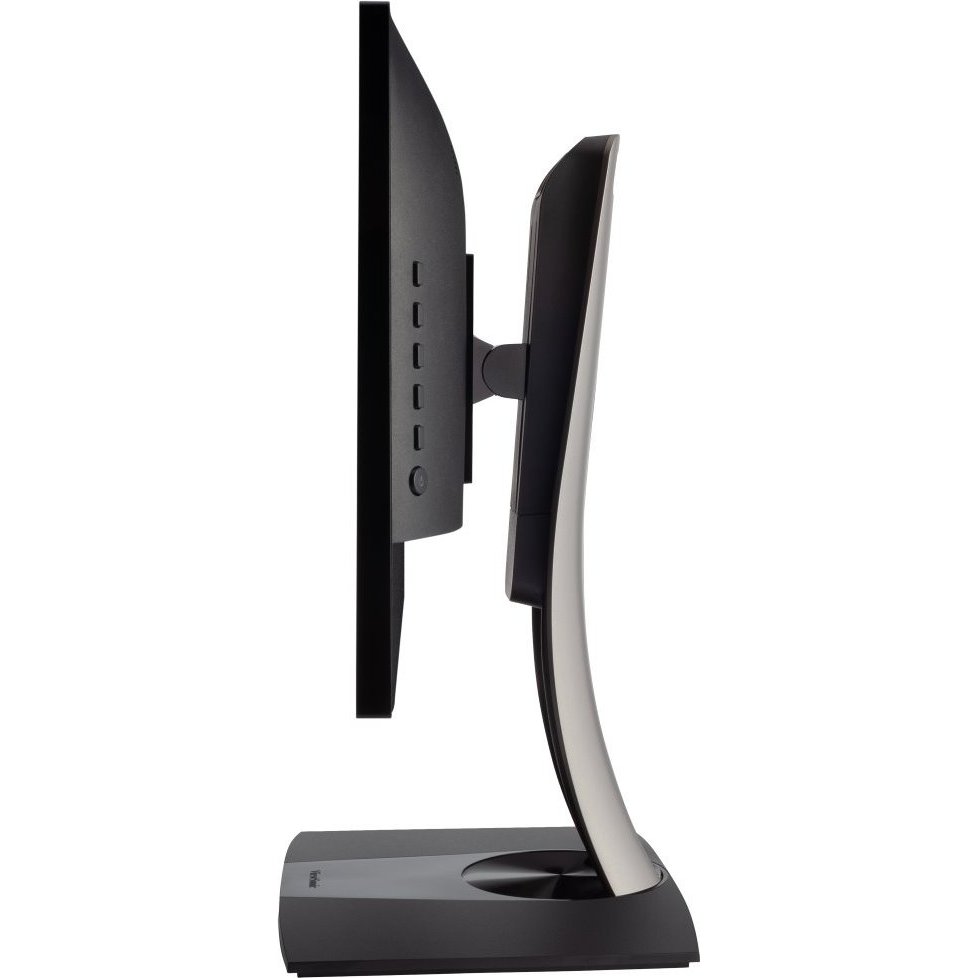

ERGONOMICS
Tilt : -5.0°±2.0° (forward) , 21.0°±2.0°(backward)
Swivel : Right 60°±4° / Left 60°±4°

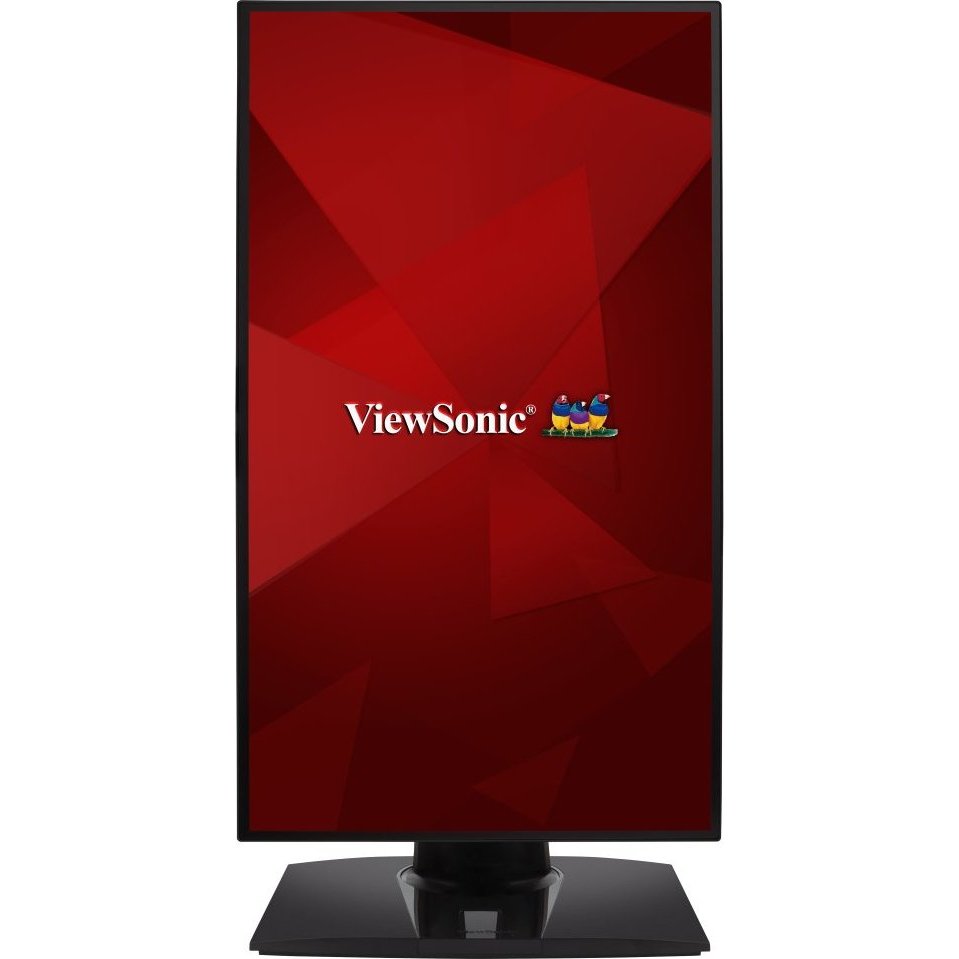

Pivot : 0~90 degrees (Clockwise and Counter Clockwise)
Height Adjustment : 0~130mm ±5.0mm
WALL MOUNT
VESA® : 100mm x 100mm
OPERATING CONDITIONS
Temperature (o F / o C) : -4°F to 140°F (-20°C to 60°C)
Humidity : 5% to 90% (no condensation)
DIMENSIONS (W X H X D) (MM)
Physical With Stand (mm) : 539 mm (W) x 522 mm (H) x 215 mm (D)
Physical Without Stand (mm) : 539 mm (W) x 311 mm (H) x 48 mm (D)
Packaging (mm) : 690 mm (W) x 380 mm (H) x 205 mm (D)
WEIGHT
Net With Stand : 5.5 kg
Net Without Stand : 3.1 kg
Gross : 8.6 kg
REGULATIONS
CB ,CE, WEEE, RoHS, ErP, REACH, UL, cUL, FCC-B, Mexico CoC, EPEAT GOLD, Energy Star, CCC, CEL, EAC, UkrSEPRO, BSMI, VCCI, PSE
WARRANTY
*Warranty offered may differ from market to market
PACKAGE CONTENTS
LCD Display
Power Cable(cable length :1.8M)
DisplayPort to DisplayPort Cable (cable length :1.8M
USB3.1 Up Stream Cable(cable length :1.8M)
Quick Start Guide
ViewSoinc Wizard CD-ROM
