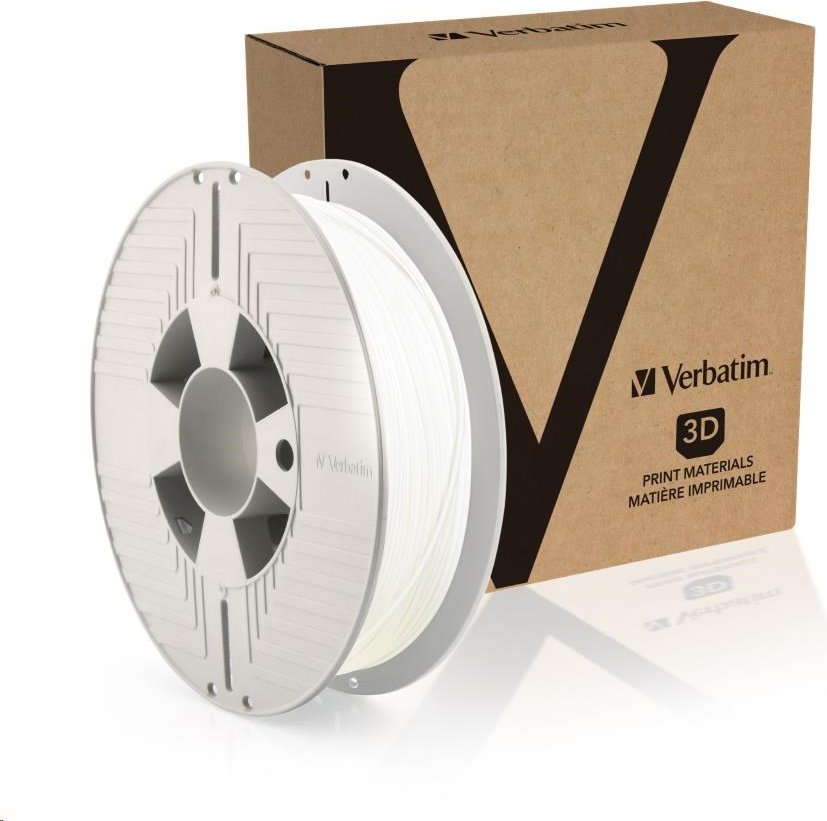

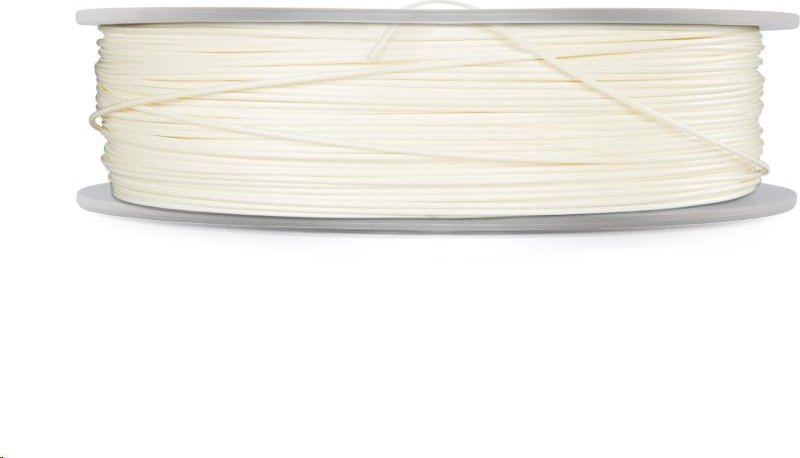

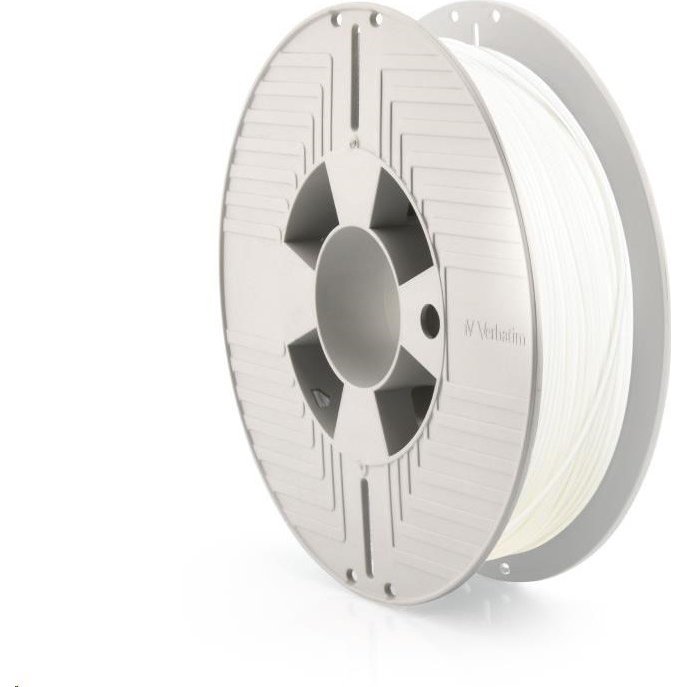

VERBATIM 3D Printer Filament BVOH 1,75mm ,182m, 500g transparent natural(55901)

Kód: 72813
Part No.: 55903
Dostupnosť: zvyčajne do 48hodin
Výrobca: Verbatim
63,70 € s DPH
61,90 € s DPH / 51,58 € bez DPH
619

Verbatim BVOH filament 1.75 mm - Transparent

A high quality water soluble support material that can be used with a number of different polymers and easily dissolved in cold water. This environmentally-friendly material provides support for printing objects with overhangs or particularly complex structures. Verbatim BVOH follows the tightest quality controls as standard, ensuring excellent layer-forming and adhesion properties.

Features

  • Butenediol Vinyl Alcohol Co-polymer (BVOH) for material extrusion
  • Water dissolvable support material
  • Waste can be disposed with household effluent**
  • Excellent layer-forming, emulsifying, adhesive
  • Best in combination with ABS, PLA, and PET material
  • Light- and UV-sensitive
  • High solubility
  • Main applications: Support material for filaments, printing projects with overhangs or complex objects **>20 times weight of water to this material required for disposal (i.e >20cc water to 1g BVOH) with a maximum of 2kg of BVOH per day. When more BVOH is to be used per day, professional organic effluent treatment will be required.

TECHNICAL SPECIFICATIONS

Diameter accuracy 1.75 mm ± 0.07 mm
Material net weight 0.5 kg
Filament length 182 m
Melt temperature 176 °C
Melt Flow Rate @ 230 °C, 21.1N 7.5 g/(10 minutes)
Density 1.14 g/cm3
Viscat softening temperature 92 °C
Glass transition temperature 68 °C
Flexural strength 71 MPa
Flexural modulus 2900 MPa
Tensile Strength 45 MPa
Tensile Elasticity 9.0%
SPOOL DIMENSIONS
Spool diameter 200 mm
Spool depth 72 mm
Hub diameter 102 mm
Hub hole diameter 51 mm
RECOMMENDED PRINTER SET UP
Extrusion temperature 210±10 °C
Bed temperature 60 °C
Printing speed 30 mm/s
