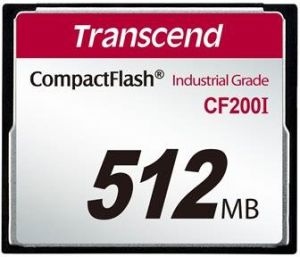

Transcend 512MB INDUSTRIAL TEMP CF200I CF CARD, paměťová karta (SLC)
Built extra-rugged with excellent temperature flexibility and high performance, Transcend´s CF200I Industrial Temp CF cards are specifically designed for industrial use and mission-critical applications.
Features:
CompactFlash Specification Version 4.1 Compliant
RoHS compliant products
Support S.M.A.R.T (Self-defined)
Support Security Command
Support Global Wear-Leveling, Static Data Refresh, Early Retirement, and Erase Count Monitor functions to extend product life
Operation Modes: PC Card Memory, PC Card IO, True IDE
True IDE Mode supports: UDMA0-5, MDMA0-4, PIO0-6 (UDMA5 as default)
True IDE Mode: Fixed Disk (Default)
PC Card Mode: Fixed Disk (Default)
Power Shield prevents data loss in the event of a sudden power outage
Specifications:
Interface(connector). Compact Flash, 50P
Form Factor: Compact Flash Card
Flash Type: SLC
Capacity(GB): 512MB
Max. R/W Performance(MB/s)(Vary by density):
- Read: 92MB/s
- Write: 70MB/s
Op. Voltage(V): 3.3V±5% or 5V±10%
Power Consumption(W): 0.76W
Op. Temp.(C): - 40C~85C
Storage Temp.(C):- 55C~100C
Humidity(%): 0%~95%
Shock(G): 1500G, 0.5ms, 3 axis
Vibration(Hz/G): 20G (Peak-to-Peak), 20Hz to 2000Hz(Frequency)
Dimensions(mm): 42.8mm × 36.4mm × 3.3mm
MTBF(hours): 4,000,000 hours
