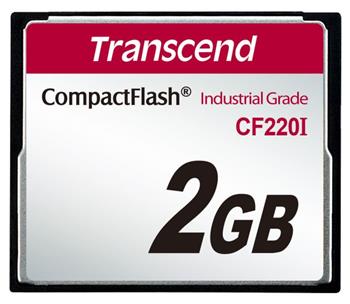

Transcend 2GB INDUSTRIAL TEMP CF220I CF CARD (Fixed disk and UDMA5)
Built extra-rugged with excellent temperature flexibility and high performance, Transcend´s CF220I Industrial Temp CF cards are specifically designed for industrial use and mission-critical applications.
Features:
CompactFlash Specification Version 6.0 compliant
RoHS compliant
Supports S.M.A.R.T (Self-defined)
Supports Security Command
Supports Global Wear-Leveling, Static Data Refresh, Early Retirement, and Erase Count Monitor functions to extend product life
Operation Modes: PC Card Memory, PC Card IO, True IDE
True IDE Mode supports: UDMA0-5, MDMA0-4, PIO0-6 (UDMA5 as default)
True IDE Mode: Fixed Disk (Default)
PC Card Mode: Fixed Disk (Default)
Power Shield prevents data loss in the event of a sudden power outage
Specifications:
Interface (connector): Compact Flash, 50P
Form Factor: Compact Flash Card
Flash Type: SLC
Capacity: 2GB
Max. R/W Performance (MB/s) (Vary by density):
Read: 90MB/s
Write: 75MB/s
Op. Voltage(V): 3.3V±5% or 5V±10%
Power Consumption(W): 0.76W
Op. Temp.:-40 C~85 C
Storage Temp.:-55 C~100 C
Humidity(%): 0%~95%
Shock(G): 1500G, 0.5ms, 3 axis
Vibration(Hz/G): 20G (Peak-to-Peak), 20Hz to 2000Hz (Frequency)
Dimensions: 42.8mm × 36.4mm × 3.3mm (1.69" x 1.43" x 0.13")
MTBF(hours): 4,000,000 hours
