Špecifikácia
Graphics Engine - AXRX 6500 XT 4GBD6-DH/OC
Video Memory - 4GB GDDR6
Stream Processor - 1024 Units
Engine Clock(OC) - up to 2650MHz(Game) up to 2820MHz(Boost)
Memory Clock - 18.0 Gbps
Memory Interface - 64-bit
DirectX® Support - 12
Bus Standard - PCIE 4.0

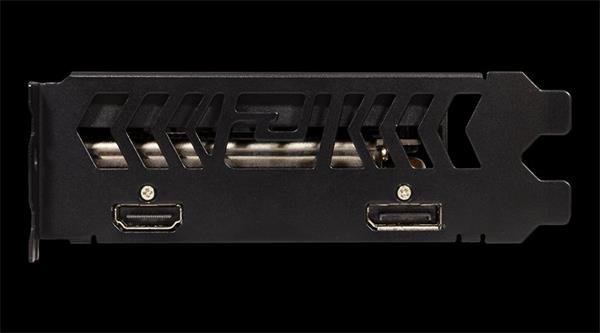

Standard Display Connectors - 1 x HDMI 2.1 , 1 x DisplayPort 1.4
Customized Specifications
Product Remark ´Game Clock´ is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
´Boost Clock´ is the maximum frequency achievable on the GPU running a burstyworkload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to:thermal conditions and variation in applications and workloads.
Feature Support
OpenGL Support
CrossFireX™ Technology support (DirectX® 12/Vulkan™)
AMD Stream Technology Support
AMD Eyefinity Technology Support
AMD Hypermemory
Maximum Resolution
VGA
DVI
DisplayPort 7680×4320
HDMI 7680×4320
Power Specs + Board Dimensions
Board Dimensions 191mm*126mm*40mm
Minimum System Power requirement (W) 400W
Extension Power Connector One 6-Pin PCI Express Power connector
