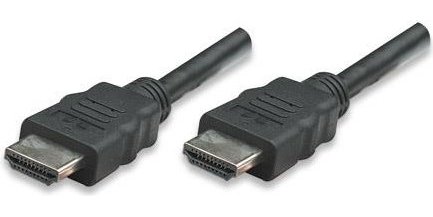

High Speed Cables deliver high-definition performance.
HDMI has become the standard digital connection, delivering the highest-quality audio and video signal over a single cable. MANHATTAN High Speed HDMI Cables are designed and carefully constructed to meet the evolving needs of the high-definition marketplace. MANHATTAN High Speed HDMI Cables provide the highest resolution possible at 4K x 2K, an audio return channel, a bandwidth of 10.2 Gbps at 340 MHz. These high-quality cables provide high-definition video and multi-channel, digital audio with increased performance characteristics, greater accuracy and expanded features including Internet connectivity for home entertainment devices using a single HDMI connection.
HDMI 19-pin male to HDMI 19-pin male connections
Ensures the integrity of the signal between HDMI devices
High-speed, bi-directional networking at up to 100 Mbps
Supports HD resolutions beyond 1080p and Deep Color
Compliant with High Speed HDMI specifications
Up to 10.2 Gbps at 340 MHz bandwidth
Fully shielded to reduce EMI and other interference sources
Molded PVC boot
Lifetime Warranty
Standards and Certifications:
UL 20276
ISO 9002
RU
CE
General:
Bandwidth: 10.2 Gbps
340 MHz
HEC support
Meets or exceeds existing HDMI standards
Length: 3 m (10 ft.)
Contacts:
(2) HDMI 19-pin male
Nickel-plated contacts
Molded PVC boot
Shielded, aluminum and braided
28 AWG connectors
Electrical:
Current rating: 0.5 A DC
Withstanding voltage: 300 V DC
Insulation resistance: 50 MOhms
Conductive resistance: 2 Ohms
Thermal plastic casing

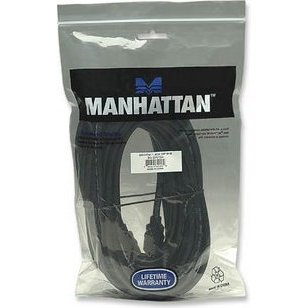

Package Contents:
High Speed HDMI Cable With Ethernet Channel
