Arm extends display out from the wall up to 13" (33 cm) for better sight lines
Rock-solid construction secures your display investment
Effortless adjustment for premium viewing
Easy three-step installation
Pleasing aesthetics make it perfect for the home or office
Integrated tilt lock-down feature

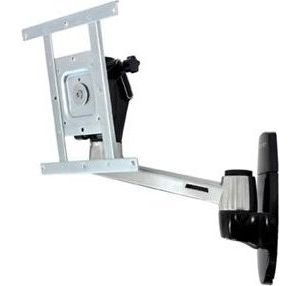

Description: LX HD Wall Mount Swing Arm (polished aluminum)
Mounting Options: Attaches directly to sturdy vertical surfaces. Includes hardware for mounting to wood stud or concrete wall
Includes knob on pivot to lock position of tilt
UL Compliant: Has been tested to four times its maximum weight capacity as per UL Standard 1678 (do NOT exceed 50 lbs in actual use)
* Mounting Standards: VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm), MIS-E (hole pattern = 200 x 100 mm), MIS-F (hole pattern = 200 x 200 mm ONLY). Optional VESA Bracket Adaptor Kit (97-474) can be ordered separately for MIS-F interface with hole pattern = 400 x 200 mm
Display depth greater than 4" (10 cm) may diminish capacity
Shipping Dimensions: 12.5" x 7.75" x 4.5" (31.8 x 19.7 x 11.4 cm)
Shipping Weight: 5.5 lbs (2.5 kg)
