Modelový rad UPS Legrand KEOR MP
The Legrand UPS Keor Multiplug model is an uninterruptible power source with stand by technology. It delivers a rated power of 600VA
and 800VA, it is CPU-controlled and is equipped, internally, with valve-regulated, hermetically sealed lead accumulator batterie to
quarantee a minimum uptime of 10 minutes at 80% of the load. Keor Multiplug provides effective protection against any
interference in the electrical mains. It also guarantees an uninterrupted power supply, thanks to the RJ11/ RJ45 sockets,
offering excellent telephone/fax/modem/LAN protection.
Keor multiplug 310040 and 310041 are equipped with:

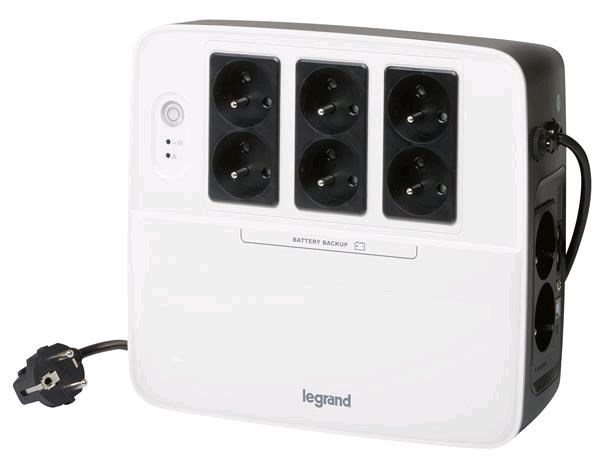

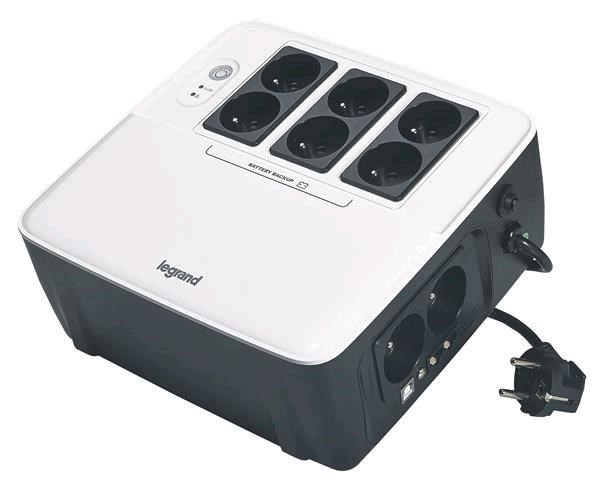

- 6x French standard sockets with back up protection and surge protection

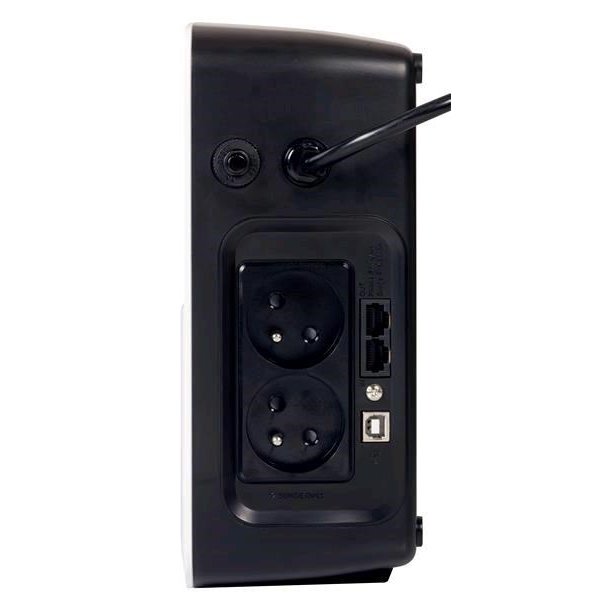

- 2x French standard sockets with surge protection
The UPS can be connected to a PC through the USB port allowing you to monitor its operation, thanks to the free software, and carry
out an emergency shutdown of Windows operating system.
Keor Multiplug is managed by a microprocessor and is able to display the following alarms and operating modes through two status LEDs:
• normal operation
• battery-powered operation
• overloaded
• generic anomaly
• back-up time
• end of uptime
The Keor Multiplug bears the CE marking, pursuant to Directives 73/23, 93/68, 89/336, 92/31, 93/68, and is designed and built in
compliance with the following standards:
• EN 62040-1 “General and safety requirements for UPSs used in areas that are accessible to the operator”
• EN 62040-2 “Electromagnetic Compatibility requirements (EMC)”
General Features
Nominal power (VA): 800
Active power (W): 480
Input
Input voltage: 180-270 V
Input frequency: 50-60 Hz
Output
Output voltage: 230V ± 10% (battery mode)
Output frequency (nominal): 50Hz

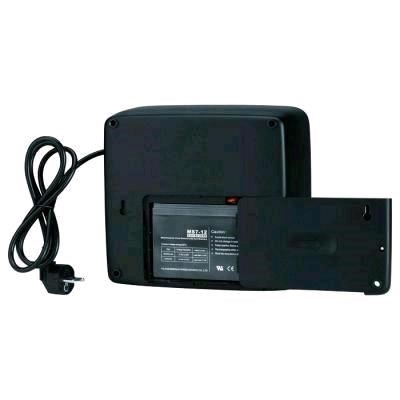

Batteries
Number of batteries: 1
Battery series Type/Voltage: 12V, 9Ah
Communication and Management
Display and Signals: Start botton with LED to monitor the status of the UPS in real time
Protection for the telephone: RJ11/RJ45
Remote Management: USB port
Mechanical Features
Measurements H x L x D (mm): 97,5x250x229
Net Weight (kg): 4,1 kg
Environmental Conditions
Operating temperature (°C): 0 ÷ 40°C
Relative humidity (%): 0÷90 % non-condensing
Certifications
Standards: EN62040-1, EN62040-2
