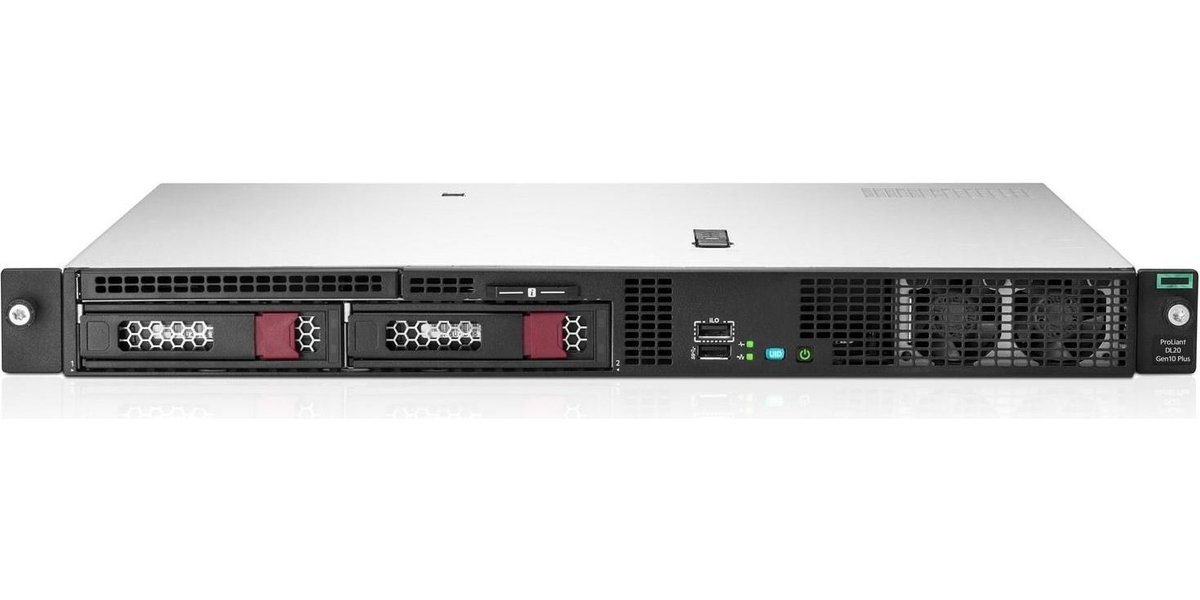

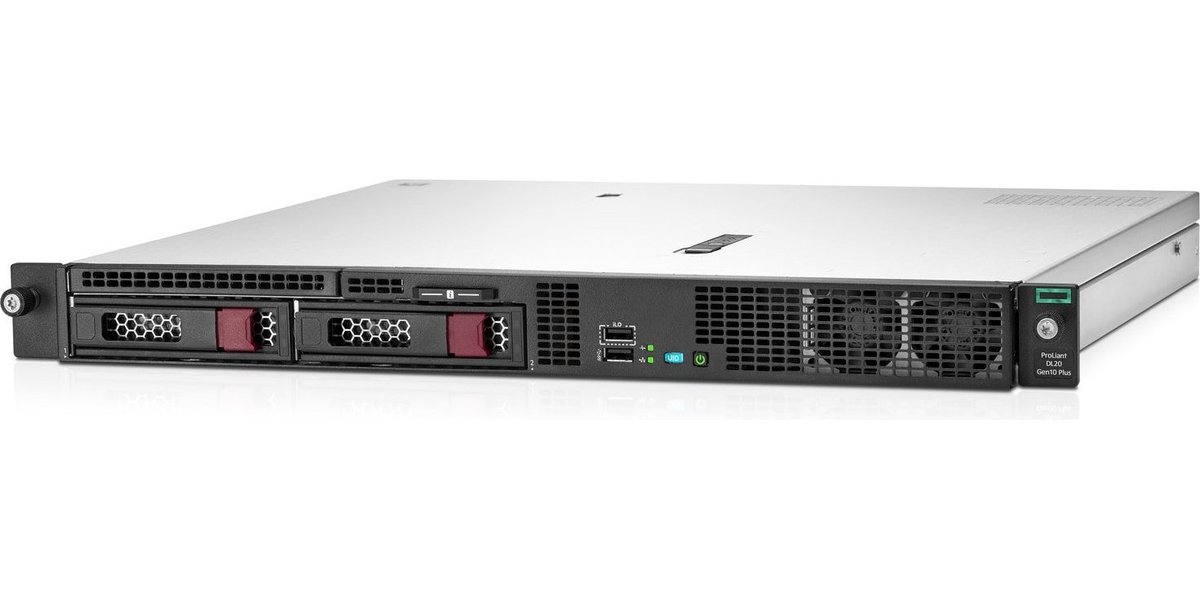

HPE ProLiant DL20 Gen10 Plus E-2314 2.8G/4C/8M/3200 16G SATA 2LFF HTPL VROC SATA swr01105 2x1G-BCM5720 NBD333 1U
Number of Processors 1 socket
Processor Intel® Xeon® E-2314
Memory 16GB (1x16GB UDIMM, 3200MT/s
Network Controller HPE embedded 1Gb 2-port BCM5720 network Adapter
Storage Controller Embedded Intel VROC SATA SW RAID
Hard Drive None ship standard; includes 3 SFF hard drive blanks
Internal Storage None ship standard; includes 1 LFF hard drive blank
Optical Drive Bay 1x (Optional: DVD-ROM, DVD-RW)
Optical Drive None
PCI-Express Slots 2 PCIe 4.0 slots*
Power Supply (1) 290W Non-redundant Power Supply
Fans 3 non hot plug, non-redundant
Management iLO Management (standard), Intelligent Provisioning (standard), iLO Advanced (optional)
Form Factor Rack (1U), HPE Short Friction Rail Kit
Warranty Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response
Serial 1 port - Optional
Video 1 Rear - VGA port (standard on all chassis types)
Network Ports 2x 1GbE embedded NIC (standard on all chassis types)
iLO Remote Mgmt Port 1 Gb Dedicated
USB 3.0 5 USB ports (standard) Front: 1xUSB 3.2, 1xUSB iLO Service Port Rear: 2xUSB 3.2 Internal: 1x USB 3.2
Upgradeability: One of the following depending on model
Up to 4 DIMM slots available for higher memory capacity
Up to 4SFF (+2SFF optional) Drive bays or 2LFF Drive bays
HPE Smart Array or Smart HBA Controller
Redundant Power Supply
Dedicated iLO Management Port
M.2 NVMe SSDs for boot
Operating Systems and Virtualization Software
- Microsoft Windows Server 2019: Essentials, Standard, Datacenter, Hyper-V
- Microsoft Windows Server 2022: Essentials, Standard, Datacenter
- Red Hat Enterprise Linux (RHEL): 8.4 (64 bit, includes KVM)
- SUSE Linux Enterprise Server (SLES): 12 SP5, 15 SP3 (64 bit, includes KVM & Xen)
- VMware ESXi: 7.0 U3
Notes: VMware supported only with Intel® Xeon® E processors, not supported with Intel® Pentium® processors. No Legacy Mode Support on VMWare. https://kb.vmware.com/s/article/84233
http://h20195.www2.hpe.com/v2/redirect.aspx?/products/quickspecs/16738_div/16738_div.HTML
Notes: For more information on Hewlett Packard Enterprise Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server
https://www.hpe.com/us/en/servers/server-operating-systems.html.
