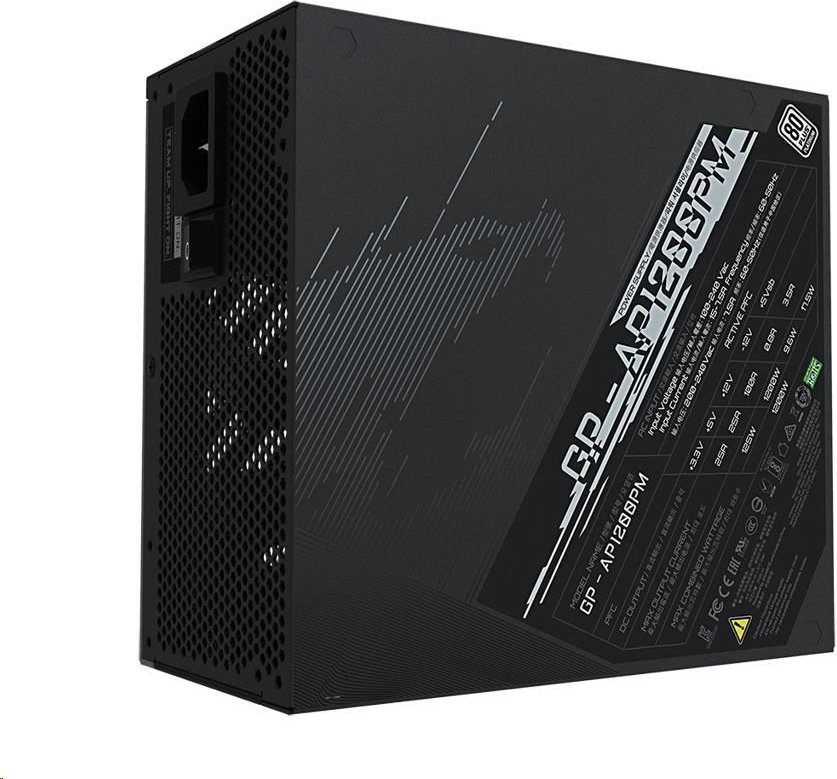

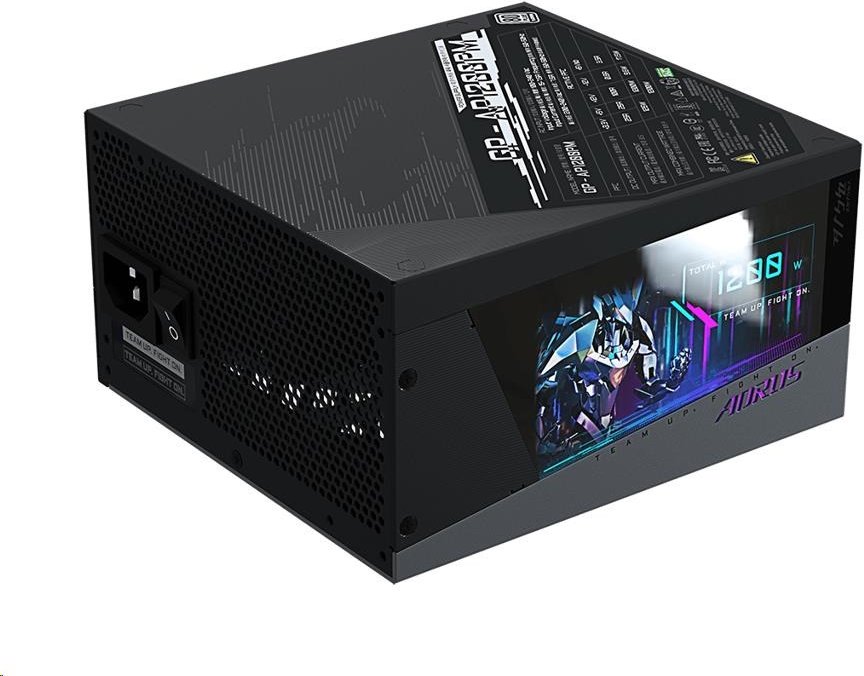

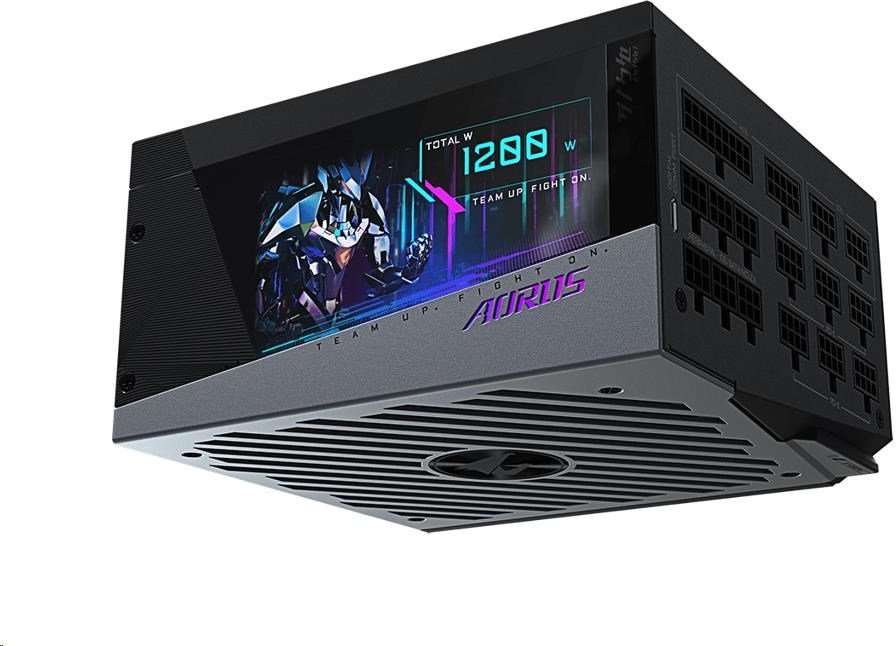

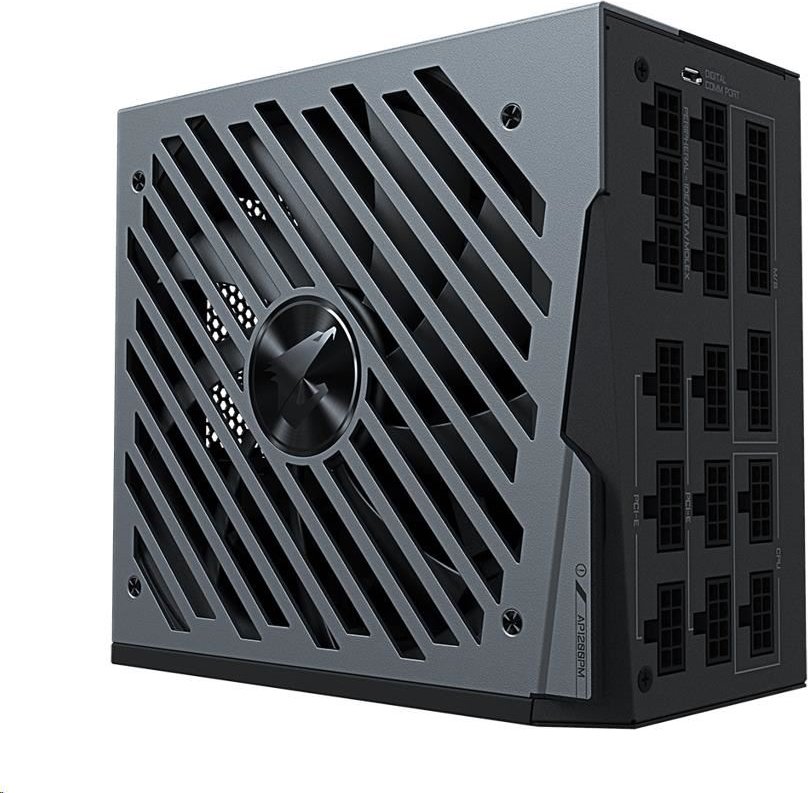

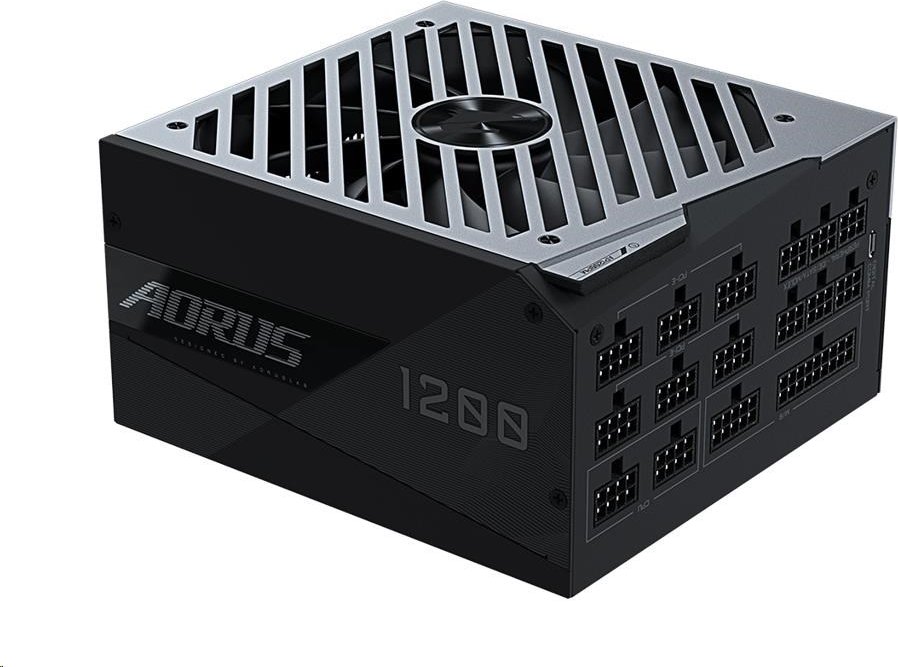

GIGABYTE zdroj GP-AP1200PM, 1200W, 80plus platinum, modular, 140 mm fan

Kód: 68833

Part No.: GP-AP1200PM

Dostupnosť: zvyčajne do 24hodin

Výrobca: GIGABYTE

Bežná cena: 203,00 € s DPH

Vaša cena: 198,00 € s DPH / 165,00 € bez DPH

Nákupom získate 1980 bonusových bodov.

Počet:

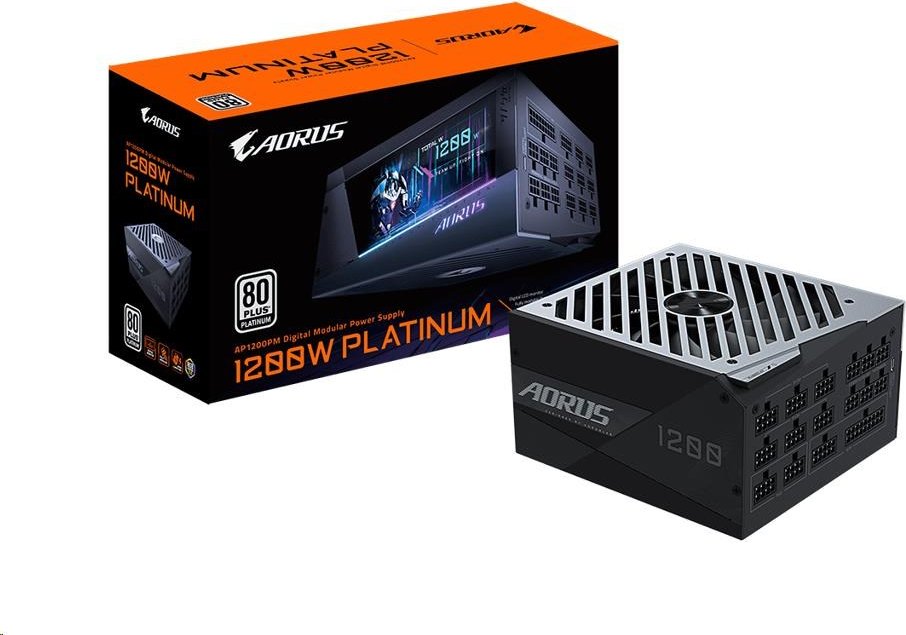

AORUS P1200W 80+ PLATINUM MODULAR

TECHNICAL SPECIFICATIONS

Model	GP-AP1200PM
Type	Intel Form Factor ATX 12V v2.31
PFC	Active PFC (>0.9 typical)
Input Voltage	100-240 Vac (full range)
Input Current	15-7.5A
Input Frequency	60-50 Hz
Output Capacity	1200W
Dimension	150 x 160 x 86mm

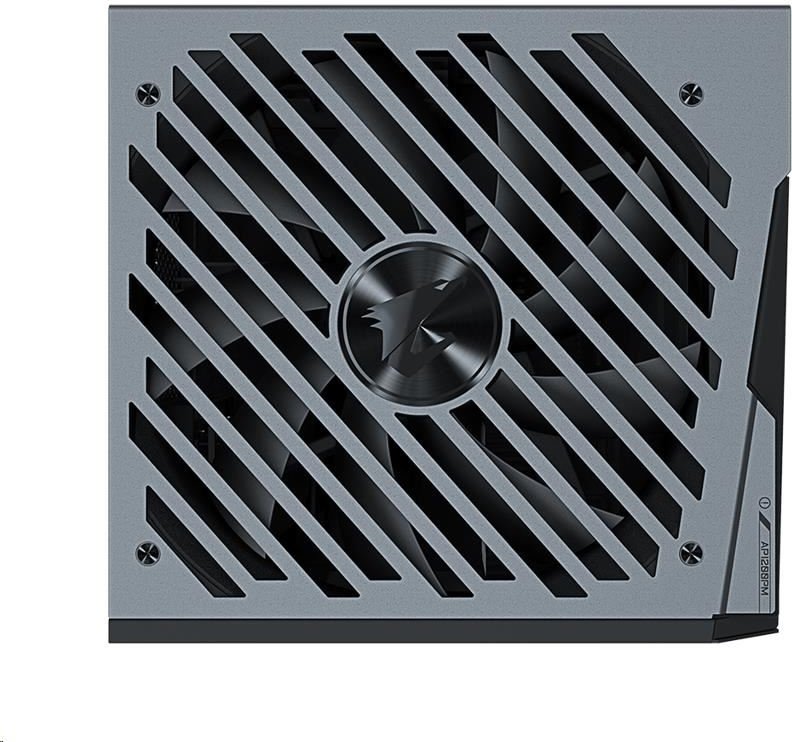

Fan Type	140mm Double ball bearing Fan
80 PLUS	Platinum
Efficiency	92% at typical load
MTBF	>100,000 hours
Protection	OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal	100-500ms
Hold Up Time	>16ms
Cable Type	Flat, All black

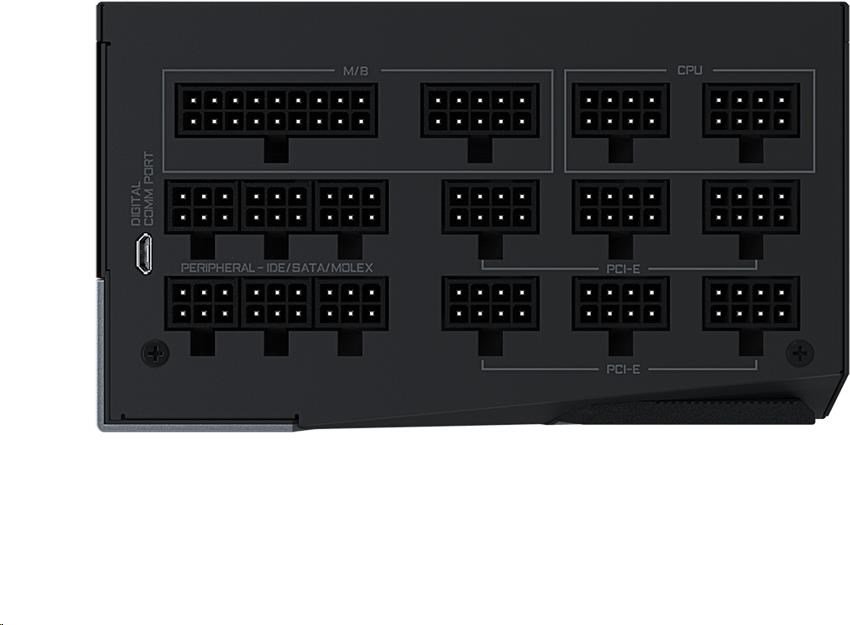

Connectors	ATX/MB 20+4 Pin x 1 : 610mm1 CPU/EPS 4+4 Pin x 2 : 650mm2 PCI-e 6+2 Pin x 10 : 650mm+150mm4/650mm2 SATA x 16 : 650mm+150mm+150mm+150mm4 4 Pin Peripheral x 6+4-Pin floppy x 2 : 600mm+120mm+120mm+150mm2

Popis produktu

TECHNICAL SPECIFICATIONS

Model	GP-AP1200PM
Type	Intel Form Factor ATX 12V v2.31
PFC	Active PFC (>0.9 typical)
Input Voltage	100-240 Vac (full range)
Input Current	15-7.5A
Input Frequency	60-50 Hz
Output Capacity	1200W
Dimension	150 x 160 x 86mm
Fan Type	140mm Double ball bearing Fan
80 PLUS	Platinum
Efficiency	92% at typical load
MTBF	>100,000 hours
Protection	OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal	100-500ms
Hold Up Time	>16ms
Cable Type	Flat, All black
Connectors	ATX/MB 20+4 Pin x 1 : 610mm1 CPU/EPS 4+4 Pin x 2 : 650mm2 PCI-e 6+2 Pin x 10 : 650mm+150mm4/650mm2 SATA x 16 : 650mm+150mm+150mm+150mm4 4 Pin Peripheral x 6+4-Pin floppy x 2 : 600mm+120mm+120mm+150mm2
