Chipset: AMD X670
Rozměrový formát: E-ATX Form Factor; (30.5cm x 26.9cm)
Podpora pro procesory: AMD Ryzen 7000 Series Processors
Patice procesoru: AM5
Pozice na paměti: 4 x DDR5 DIMM, Dual channel memory architecture
Podpora pro paměti: DDR5 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s
Max.velikost operační paměti: 128 GB (32 GB single DIMM capacity)
Podpora pro paměti typu: non-ECC, XMP
Grafická karta: (na základě procesoru)
*1 x DisplayPort 1.4, maximální rozlišení 3840x2160@144 Hz
*1 x USB Type-C port maximální rozlišení 3840x2160@144 Hz
*1 x HDMI port, maximální rozlišení 4096x2160@60 Hz
Zvuková karta: Realtek ALC1220-VB CODEC
*2/4/5.1/7.1-channel output
*Podpora S/PDIF Out
Síťová karta:
*Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
*Wi-Fi 6E AX210 a, b, g, n, ac, ax
*Bluetooth 5.3
Rozšiřující sloty:
*1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16
*1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4
*1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2
RAID řadič: RAID 0, RAID 1, RAID 10
SATA: 6 x SATA 6Gb/s connectors
M.2: 4 x M.2 Socket 3 connectors
USB:
*Interní:
*1 x USB Type-C header, with USB 3.2 Gen 2x2 support
*2 x USB 3.2 Gen 1 headers
*2 x USB 2.0/1.1 headers
*Externí:
*1 x USB Type-C port (DisplayPort), with USB 3.2 Gen 2 support
*1 x USB Type-C port, with USB 3.2 Gen 2x2 support
*4 x USB 3.2 Gen 2 Type-A ports (red)
*4 x USB 3.2 Gen 1 ports
*2 x USB 2.0/1.1 ports
Interní porty:
*1 x 24-pin ATX main power connector
*2 x 8-pin ATX 12V power connectors
*1 x CPU fan header
*1 x water cooling CPU fan header
*4 x system fan headers
*4 x system fan/water cooling pump headers
*2 x addressable LED strip headers
*2 x RGB LED strip headers
*1 x CPU cooler LED strip/RGB LED strip header
*4 x M.2 Socket 3 connectors
*6 x SATA 6Gb/s connectors
*1 x front panel header
*1 x front panel audio header
*1 x USB Type-C header, with USB 3.2 Gen 2x2 support
*2 x USB 3.2 Gen 1 headers
*2 x USB 2.0/1.1 headers
*1 x noise detection header
*1 x THB_U4 add-in card connector
*1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
*1 x power button
*1 x reset button
*1 x reset jumper
*1 x Clear CMOS jumper
*2 x temperature sensor headers

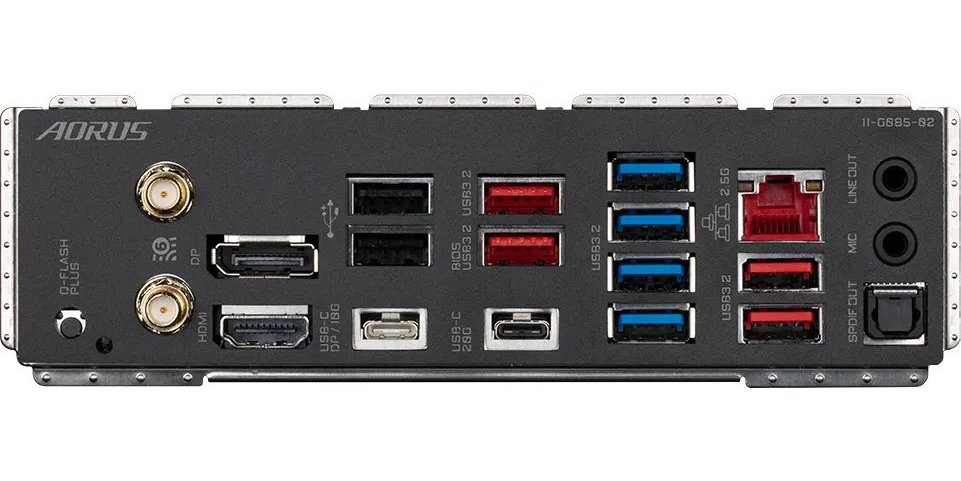

Externí porty:
*1 x Q-Flash Plus button
*2 x SMA antenna connectors (2T2R)
*1 x DisplayPort
*1 x HDMI port
*1 x USB Type-C port (DisplayPort), with USB 3.2 Gen 2 support
*1 x USB Type-C port, with USB 3.2 Gen 2x2 support
*4 x USB 3.2 Gen 2 Type-A ports (red)
*4 x USB 3.2 Gen 1 ports
*2 x USB 2.0/1.1 ports
*1 x RJ-45 port
*1 x optical S/PDIF Out connector
*2 x audio jacks
BIOS: AMI UEFI BIOS, 1 x 256 Mbit flash
Stránka výrobce: http://www.gigabyte.com/Motherboard/X670E-AORUS-MASTER-rev-10#kf
