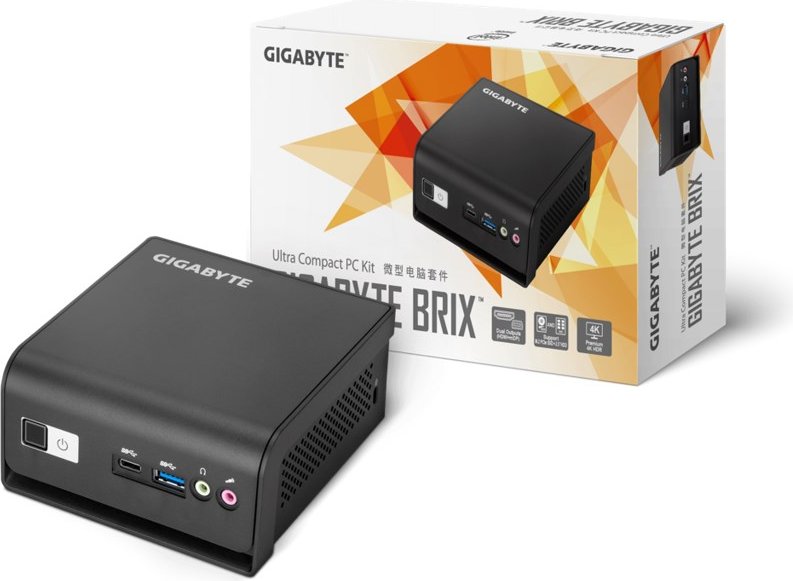

GIGABYTE BRIX GB-BMCE-5105, Intel Celeron N5105, 1xSO-DIMM DDR4, WiFi

Kód: 65695

Part No.: GB-BMCE-5105

Dostupnosť: zvyčajne do 24hodin

Výrobca: GIGABYTE

Bežná cena: 189,00 € s DPH

Vaša cena: 186,00 € s DPH

Nákupom získate 1860 bonusových bodov.

Počet:

Popis

GB-BMCE-5105

Ultra compact PC design at only 0.67L (56.22x103x116.52mm)
1st 10 nm small core CPU
Support M.2 2280 slot for SSD (support PCI-e x2+SATA)
Supports 2.5" HDD/SSD, 7.0/9.5 mm thick (1 x 6 Gbps SATA 3)
1 x SO-DIMM DDR4 slots support 2933MHz, Max 16GB
802.11ac, Dual Band Wi-Fi & Bluetooth 4.2
Realtek 8111HS Gigabit LAN
HDMI 2.0b support 4K@60P HDR10
mDP 1.4b support 4K@60P HBR2
Realtek ALC255 Codec
4 x USB 3.1 (1 x USB Type-C?)
Headphone Jack
Mic-phone Jack
VESA Mounting Bracket (75 x 75mm + 100 x 100mm)
AC-DC adapter : 100-240V input, 19V 65W
OS Support : Microsoft Windows 10 64Bit
1x Kensington Lock slot
System Environment Operating Temperature: 0°C to +35°C
System Storage Temperature: -20°C to +60°C

TECHNICAL SPECIFICATIONS

Dimensions	46.8x112.6x119.4mm
Motherboard Size	105 x 110 mm
CPU	Intel® Celeron® Processor N5105 2.8GHz, 4 core (TDP 10W)
Memory	1 x SO-DIMM DDR4 slots 2933MHz Max. 16GB
LAN	Gigabit LAN (Realtek 8111HS)
Wifi Card	Dual Band Wireless-802.11 AC
Graphics	Intel® UHD Graphics 605
Audio	Realtek ALC255
HDMI Resolution (Max.)	HDMI2.0a 4096 x 2160 @ 60 Hz
Mini DP Resolution (Max.)	DP1.2a 4096 x 2160 @ 60H
Storage	Supports 2.5" HDD/SSD, 7.0/9.5 mm thick (1 x 6 Gbps SATA 3)
Expansion Slots	1 x M.2 slot (2280_storage) PCIe X2/SATA 1 x PCIe M.2 NGFF 2230 A-E key slot occupied by the WiFi+BT card
Front I/O	1 x USB3.0 1 x USB3.0 type C 1 x headphone jack with MIC
Rear I/O	1 x HDMI(2.0a) 1 x mini DisplayPort (1.2a) 2 x USB 3.0 1 x RJ45 1 x DC-In 1 x Kensington lock slot
Power Supply	Input: AC 100-240V Output: DC 19V 2.1A
VESA	Bracket included Supports 75 x 75 and 100 x 100 mm
Support OS	Win10 64bit
Environment	System Environment Operating Temperature: 0°C to +35°C System Storage Temperature: -20°C to +60°C

Popis produktu

GB-BMCE-5105

Ultra compact PC design at only 0.67L (56.22x103x116.52mm)
1st 10 nm small core CPU
Support M.2 2280 slot for SSD (support PCI-e x2+SATA)
Supports 2.5" HDD/SSD, 7.0/9.5 mm thick (1 x 6 Gbps SATA 3)
1 x SO-DIMM DDR4 slots support 2933MHz, Max 16GB
802.11ac, Dual Band Wi-Fi & Bluetooth 4.2
Realtek 8111HS Gigabit LAN
HDMI 2.0b support 4K@60P HDR10
mDP 1.4b support 4K@60P HBR2
Realtek ALC255 Codec
4 x USB 3.1 (1 x USB Type-C?)
Headphone Jack
Mic-phone Jack
VESA Mounting Bracket (75 x 75mm + 100 x 100mm)
AC-DC adapter : 100-240V input, 19V 65W
OS Support : Microsoft Windows 10 64Bit
1x Kensington Lock slot
System Environment Operating Temperature: 0°C to +35°C
System Storage Temperature: -20°C to +60°C

TECHNICAL SPECIFICATIONS

Dimensions	46.8x112.6x119.4mm
Motherboard Size	105 x 110 mm
CPU	Intel® Celeron® Processor N5105 2.8GHz, 4 core (TDP 10W)
Memory	1 x SO-DIMM DDR4 slots 2933MHz Max. 16GB
LAN	Gigabit LAN (Realtek 8111HS)
Wifi Card	Dual Band Wireless-802.11 AC
Graphics	Intel® UHD Graphics 605
Audio	Realtek ALC255
HDMI Resolution (Max.)	HDMI2.0a 4096 x 2160 @ 60 Hz
Mini DP Resolution (Max.)	DP1.2a 4096 x 2160 @ 60H
Storage	Supports 2.5" HDD/SSD, 7.0/9.5 mm thick (1 x 6 Gbps SATA 3)
Expansion Slots	1 x M.2 slot (2280_storage) PCIe X2/SATA 1 x PCIe M.2 NGFF 2230 A-E key slot occupied by the WiFi+BT card
Front I/O	1 x USB3.0 1 x USB3.0 type C 1 x headphone jack with MIC
Rear I/O	1 x HDMI(2.0a) 1 x mini DisplayPort (1.2a) 2 x USB 3.0 1 x RJ45 1 x DC-In 1 x Kensington lock slot
Power Supply	Input: AC 100-240V Output: DC 19V 2.1A
VESA	Bracket included Supports 75 x 75 and 100 x 100 mm
Support OS	Win10 64bit
Environment	System Environment Operating Temperature: 0°C to +35°C System Storage Temperature: -20°C to +60°C
