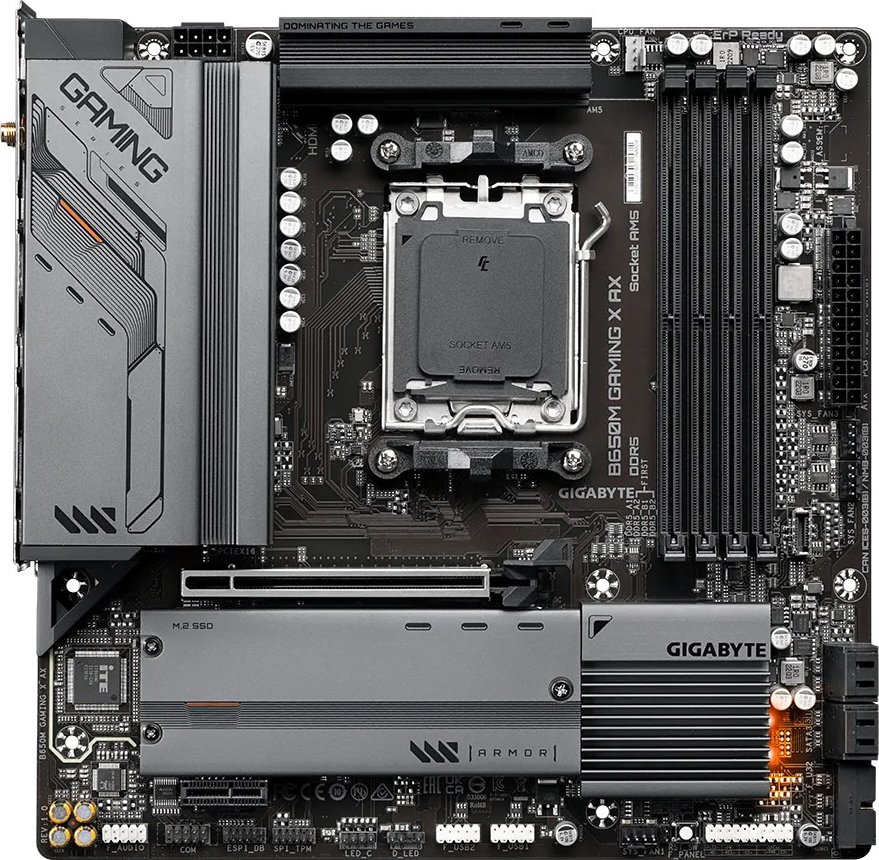

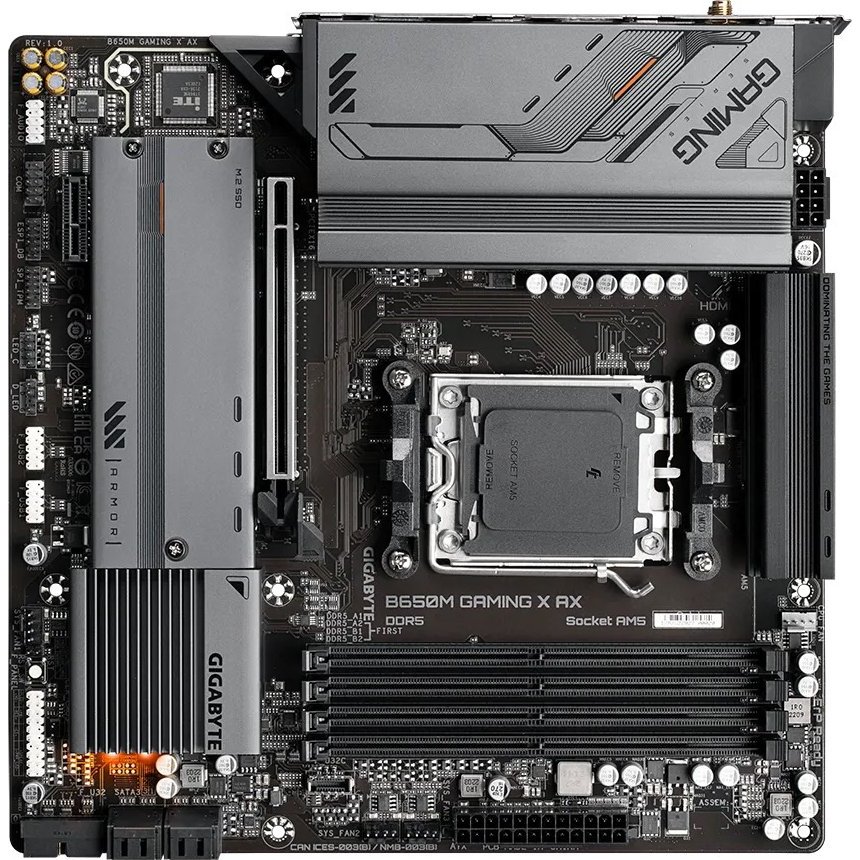

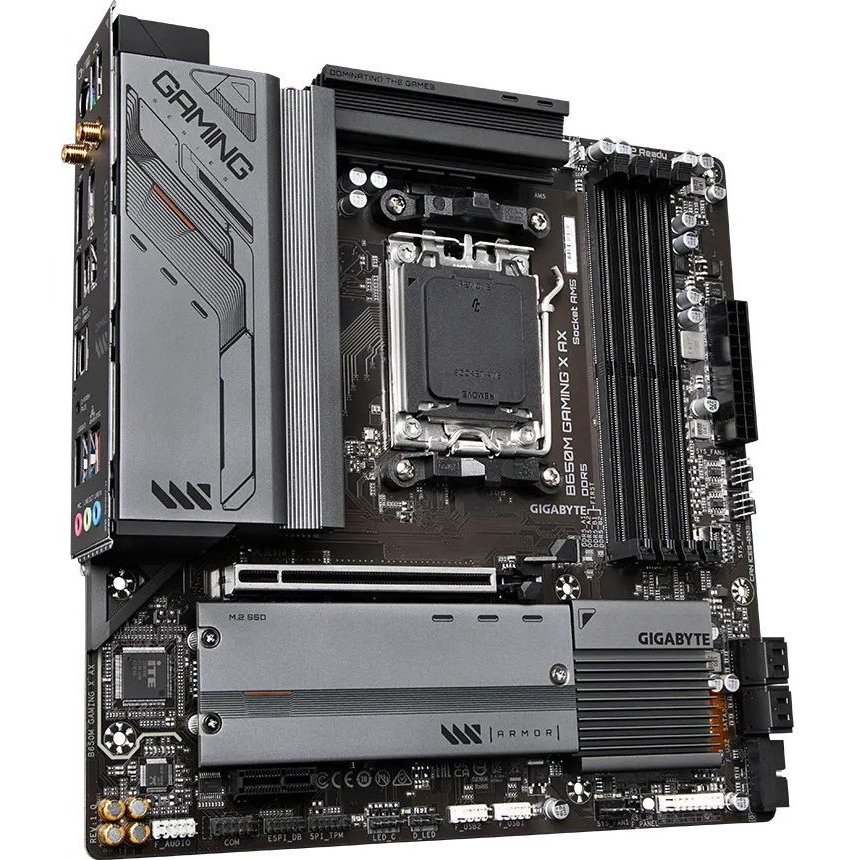

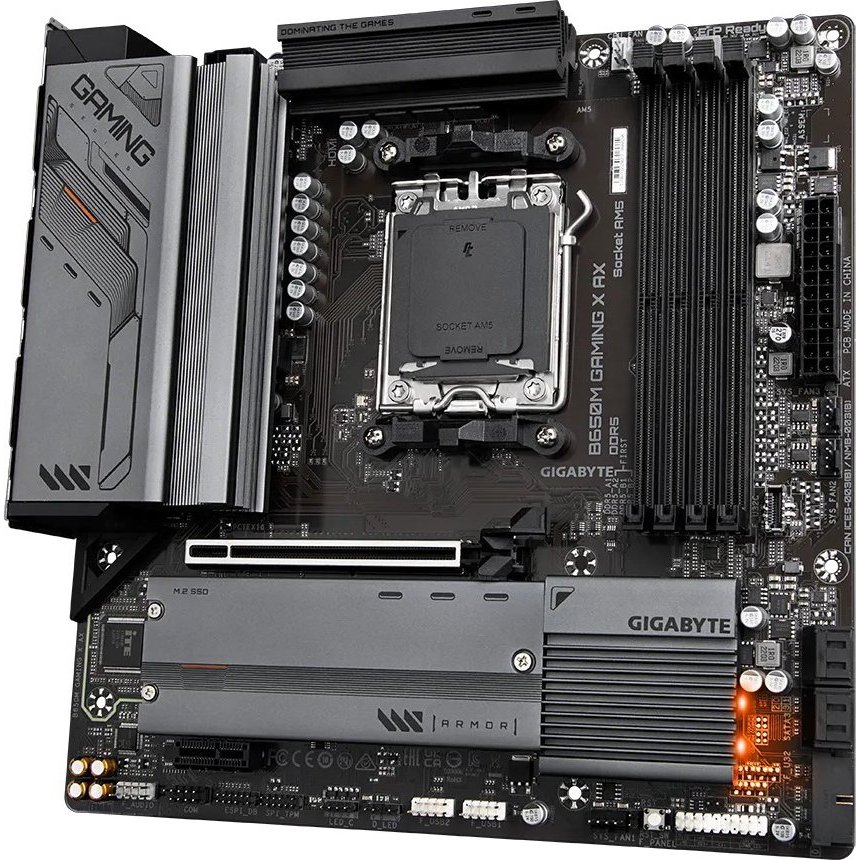

Chipset: AMD B650
Rozměrový formát: Micro ATX Form Factor; (24.4cm x 24.4cm)
Podpora pro procesory: AMD Ryzen 7000 Series Processors
Patice procesoru: AM5
Pozice na paměti: 4 x DDR5 DIMM, Dual channel memory architecture
Podpora pro paměti: DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
Max.velikost operační paměti: 128 GB (32 GB single DIMM capacity)
Podpora pro paměti typu: non-ECC, XMP
Grafická karta: (na základě procesoru)
*2 x DisplayPorts 1.4, maximální rozlišení 3840x2160@144 Hz
*1 x HDMI 2.1 port, maximální rozlišení 4096x2160@60 Hz
Zvuková karta: Realtek Audio CODEC
2/4/5.1/7.1-channel
Síťová karta:
*Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
*AMD Wi-Fi 6E RZ616 a, b, g, n, ac, ax
*Bluetooth 5.2
Rozšiřující sloty:
*1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
*1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
RAID řadič: RAID 0, RAID 1, and RAID 10
SATA: 4 x SATA 6Gb/s connectors
M.2: 2 x M.2 Socket 3 connectors
USB:
*Interní:
*1 x USB Type-C header, with USB 3.2 Gen 2 support
*1 x USB 3.2 Gen 1 header
*2 x USB 2.0/1.1 headers
*Externí:
*1 x USB 3.2 Gen 2 Type-A port (red)
*2 x USB 3.2 Gen 1 ports
*1 x USB Type-C port, with USB 3.2 Gen 2 support
*4 x USB 2.0/1.1 ports
Interní porty:
*1 x 24-pin ATX main power connector
*1 x 8-pin ATX 12V power connector
*1 x CPU fan header
*3 x system fan headers
*1 x addressable LED strip header
*1 x RGB LED strip header
*2 x M.2 Socket 3 connectors
*4 x SATA 6Gb/s connectors
*1 x front panel header
*1 x front panel audio header
*1 x USB Type-C header, with USB 3.2 Gen 2 support
*1 x USB 3.2 Gen 1 header
*2 x USB 2.0/1.1 headers
*1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
*1 x serial port header
*1 x reset button
*1 x reset jumper
*1 x Clear CMOS jumper

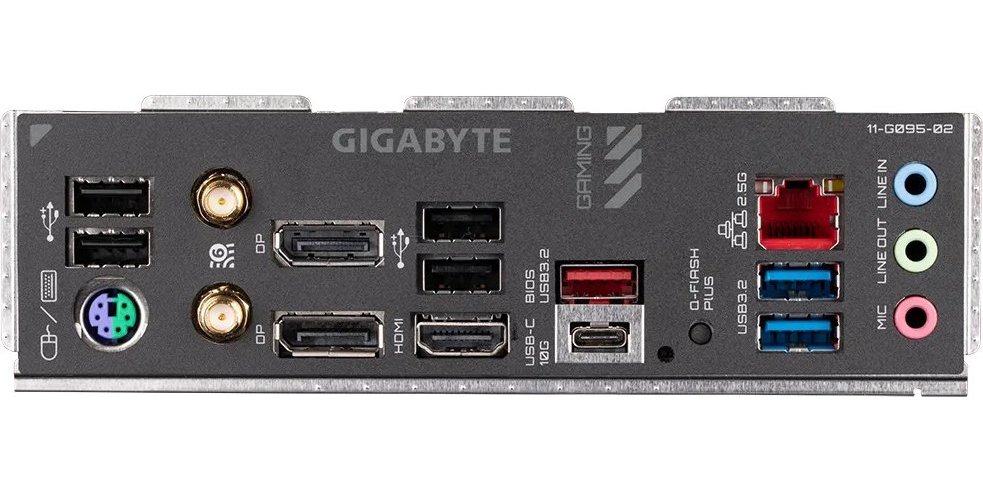

Externí porty:
*4 x USB 2.0/1.1 ports
*1 x PS/2 keyboard/mouse port
*2 x SMA antenna connectors (2T2R)
*2 x DisplayPorts
*1 x HDMI port
*1 x USB 3.2 Gen 2 Type-A port (red)
*1 x USB Type-C port, with USB 3.2 Gen 2 support
*1 x Q-Flash Plus button
*1 x RJ-45 port
*2 x USB 3.2 Gen 1 ports
*3 x audio jacks
BIOS: AMI UEFI BIOS, 1 x 256 Mbit flash
Stránka výrobce: http://www.gigabyte.com/Motherboard/B650M-GAMING-X-AX-rev-1x#kf
