| Popis |

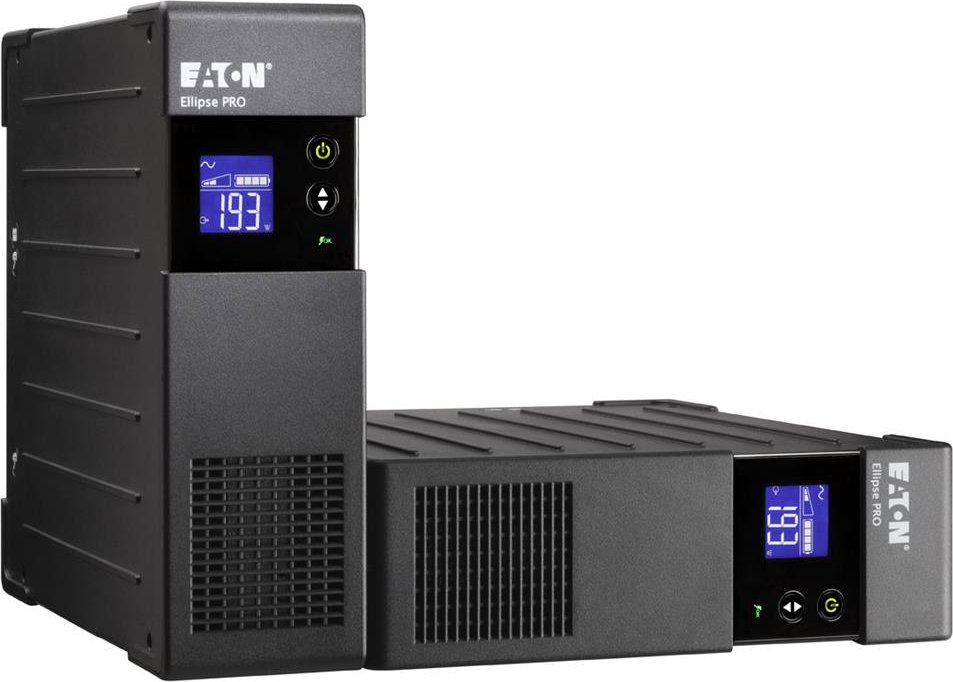

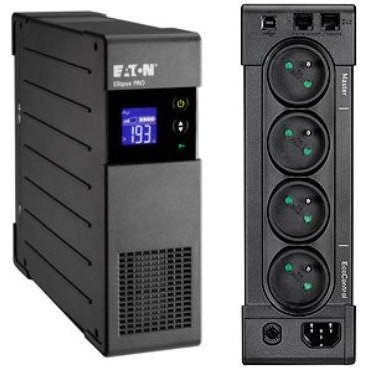

| The Eaton Ellipse PRO 850, 850VA, is a line interactive UPS specifically developed to protect workstations running demanding applications. The Ellipse PRO features a LCD display for real time status and measurements, 4 outlets ( 3 with battery backup and lightning protection and one with lightning protection. This unit includes Eco Control power outlets, which enable energy savings up to 20 percent and Advanced Surge Reduction (ASR) that complies fully with the requirements of the IEC 616431-1 standard. This UPS can be either placed as a tower, in a rack or be wall mounted. |
| Produkt: |
| Názov produktu : |
EATON ELP850FR UPS Eaton Ellipse PRO 850 FR |
| Popis: |
Eaton Ellipse PRO 850 - UPS - AC 230 V - 510 Watt - 850 VA 9 Ah - USB - output connectors: 4 - 2U - 19" |
| EAN: |
0743172437402 |
| Záruka výrobcu: |
36 mesiacov záruka
|
| General |
| Device Type: |
UPS - external
|
| Height (Rack Units): |
2U
|
| Rack Size: |
19"
|
| Power Device |
| UPS Technology: |
Line interactive
|
| Input Voltage: |
AC 230 V
|
| Input Voltage Range: |
AC 165 - 285 V
|
| Input Voltage Range (Adjustable): |
AC 150 - 285 V
|
| Frequency Provided: |
50/60 Hz
|
| Frequency Required: |
50/60 Hz
|
| Input Connectors: |
1 x power IEC 60320 C14
|
| Power Output Connectors Details: |
3 x power CEE 7/5 (UPS and surge)
1 x power CEE 7/5 (surge)
|
| Output Voltage: |
AC 220/230/240 V + 15% / - 20% - 50/60 Hz
|
| Power Capacity: |
510 Watt / 850 VA
|
| Dataline Surge Protection: |
Network/phone line - RJ-45/RJ-11 - 1 input line / 1 output line
|
| Surge Suppression: |
Yes
|
| Circuit Protection: |
Circuit breaker
|
| Battery |
| Technology: |
Lead Acid
|
| Capacity: |
9 Ah
|
| Run Time (Up To): |
9 min at half load
5 min at 70% load
|
| Networking |
| Remote Management Interface: |
USB
|
| Expansion / Connectivity |
| Interfaces: |
1 x management (USB) - 4 pin USB Type B
|
| Miscellaneous |
| Cables Included: |
USB cable - external
|
| Rack Mounting Kit: |
Optional
|
| Features: |
Wall mountable, LCD display, Automatic Voltage Regulation (AVR), deep discharge protection, cold-start function, EcoControl Master/Control outlets
|
| Compliant Standards: |
CB, IEC 62040-1-1, IEC 62040-2, IEC 61643-1, EN 62040-1-1, EN 62040-2
|
| Software / System Requirements |
| Software Included: |
Eaton UPS Companion
|
| Manufacturer Warranty |
| Service & Support: |
Limited warranty - 3 years
Limited warranty - batteries - 3 years
|
| Environmental Parameters |
| Min Operating Temperature: |
0 °C
|
| Max Operating Temperature: |
35 °C
|
| Humidity Range Operating: |
0 - 85%
|
| Dimensions & Weight |
| Width: |
8.2 cm
|
| Depth: |
28.5 cm
|
| Height: |
26 cm
|
| Weight: |
7.3 kg
|
