| Popis |
| As well as providing a power supply backed up by a battery to keep equipment operating during a power failure, the Ellipse Eco also provides effective protection against damaging surges. The Eco Control function automatically disables peripherals when the master device is turned off in order to save up 25 % more energy compared to previous generation of UPS. This unit can either be placed horizontally, 19 inch rack mounted or wall mounted. The Ellipse Eco also includes the Eaton Intelligent Power Manager software. It is an ideal protection for all business computers. |
| Kľúčové predajné body |
- Energy-efficient power protection for business computers
With an efficient electrical design and the EcoControl function, which automatically disables peripherals when the master device is turned off, the Eaton Ellipse ECO helps you make energy savings of up to 25 percent compared to previous-generation UPSs. As well as providing a power supply backed up by a battery to keep equipment operating during a power failure, the Ellipse ECO also provides effective protection against damaging surges.
- Easy integration and installation
The Ellipse ECO´s extra-flat design makes it easy to install in any office environment: installation options include vertical box format, below the desk, horizontally under a monitor and 19" rack-mounted.
- Complete peace of mind
Periodic battery self-test ensures early detection of a battery that needs to be replaced. Easy-to-replace battery helps to extend UPS service life. Push-button circuit breaker enables easy recovery from an overload or short circuit.
|
| Produkt: |
| Názov produktu : |

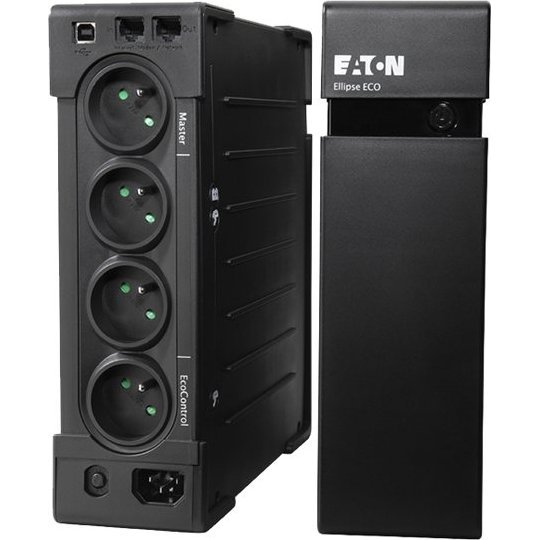

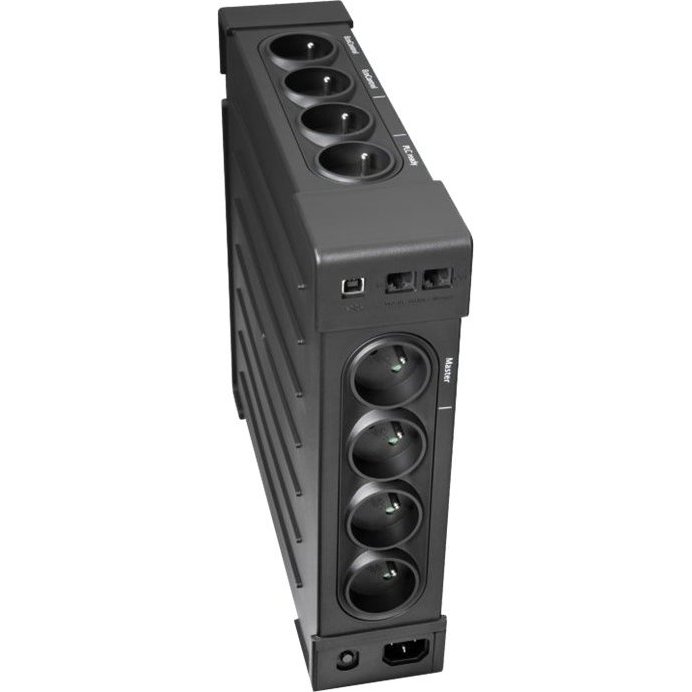

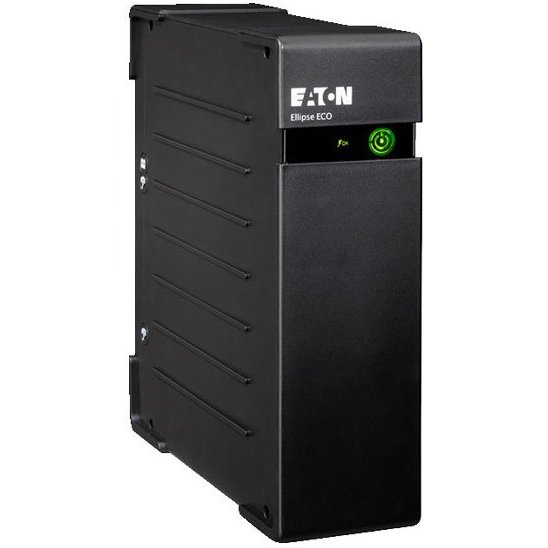

EATON EL1200USBFR UPS Eaton Ellipse ECO 1200VA USB FR |
| Popis: |
Eaton Ellipse ECO 1200 FR USB - UPS - AC 230 V - 750 Watt - 1200 VA - USB - output connectors: 8 - 2U - 19" |
| EAN: |
3553340621215 |
| Záruka výrobcu: |
24 mesiacov záruka
|
| General |
| Device Type: |
UPS - external
|
| Height (Rack Units): |
2U
|
| Rack Size: |
19"
|
| Power Device |
| UPS Technology: |
Off-line
|
| Input Voltage: |
AC 230 V
|
| Input Voltage Range: |
AC 184 - 264 V
|
| Input Voltage Range (Adjustable): |
AC 161 - 284 V
|
| Frequency Provided: |
50/60 Hz
|
| Frequency Required: |
50/60 Hz
|
| Input Connectors: |
1 x power IEC 60320 C14
|
| Power Output Connectors Details: |
4 x power CEE 7/5 (UPS and surge)
4 x power CEE 7/5 (surge)
|
| Output Voltage: |
AC 220/230/240 V 50/60 Hz
|
| Power Capacity: |
750 Watt / 1200 VA
|
| Dataline Surge Protection: |
Network/phone line - RJ-45/RJ-11
|
| Surge Suppression: |
Yes
|
| Circuit Protection: |
Circuit breaker
|
| Battery |
| Technology: |
Lead Acid
|
| Run Time (Up To): |
10 min at half load
6 min at 70% load
|
| Networking |
| Remote Management Interface: |
USB
|
| Expansion / Connectivity |
| Interfaces: |
1 x management (USB) - 4 pin USB Type B
|
| Miscellaneous |
| Cables Included: |
USB cable - external
|
| Rack Mounting Kit: |
Optional
|
| Features: |
Wall mountable, audible alarm, LED indicators, deep discharge protection, cold-start function, Eco-efficiency
|
| Compliant Standards: |
CB, IEC 62040-1-1, IEC 62040-2, IEC 60950-1, IEC 61643-1
|
| Software / System Requirements |
| Software Included: |
Intelligent Power Manager
|
| OS Required: |
Linux, Apple MacOS X, Microsoft Windows Vista / XP / 7
|
| Manufacturer Warranty |
| Service & Support: |
Limited warranty - 2 years
|
| Dimensions & Weight |
| Width: |
8.1 cm
|
| Depth: |
31.2 cm
|
| Height: |
30.5 cm
|
| Weight: |
6.7 kg
|
